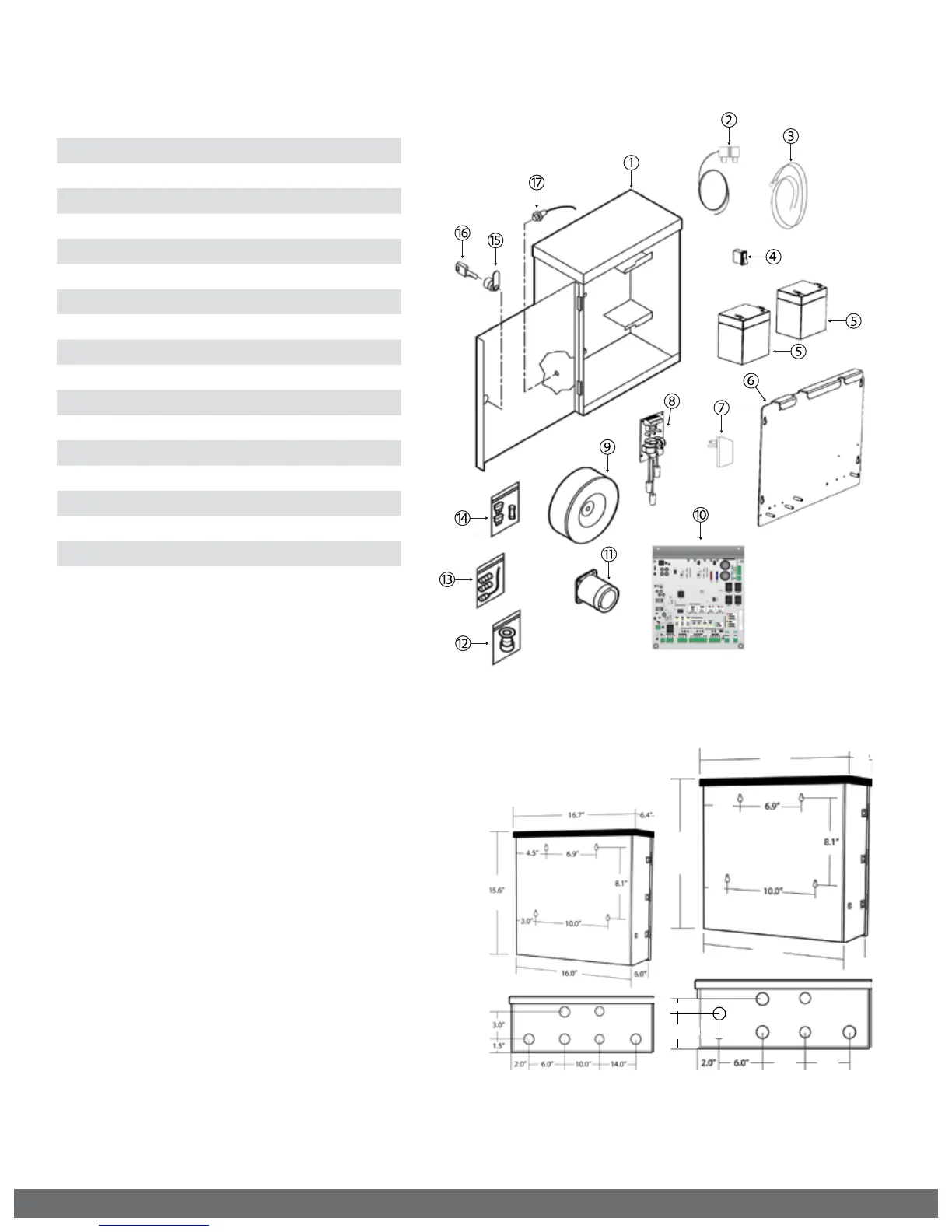

PARTS DIAGRAM - CONTROLLER:
Standard ECU *
Large ECU
(OPTIONAL)
#VA-ECUBBB
18.5”
18.1”
18.25 ”
8.5 ”
8”
5.5”
4.0”
12.0” 15.5”
Item Description Part No.
1
ECU Cabinet Chassis (Standard) VNXECUBB
2
Power Harness
E4PH
3 Battery Harness E4BTH
4 Battery Switch DUMRS10
5 Battery DUBB12
6 Board Mounting Plate E4CBMP
7 Plug-in Transformer PT24V1A
8 EMI Board (optional) DUEMI10
9
Toroid Transformer - 10 amp (optional)
DUTT10
10 Control Board VE4PCB
11 Alarm DUAL10
12 Strain Relief (ECU) DH3/4NMCC
13 Radio Antenna Kit VARAK
14 Fuse Kit E4FSKT
15 Lock & Keys, Door ECUKEYC20
16 Key, Door ECUKEY20
17 Alarm Reset Switch ECURW
*Standard ECU is depicted and related to parts list provided.
