Pull to Open Installation Option
This application is typically used to open the gate towards the inside of the property.
The operator will “PULL” the gate to open.
1.
The gate must be installed in a location so that enough clearance is provided
between the gate and adjacent structures to reduce the risk of entrapment when
opening and closing.
2.
Swing gates are not to open into public access areas.
NOTE: Back Mounting Bracket
must be cut to obtain correct
dimension “A” provided below.

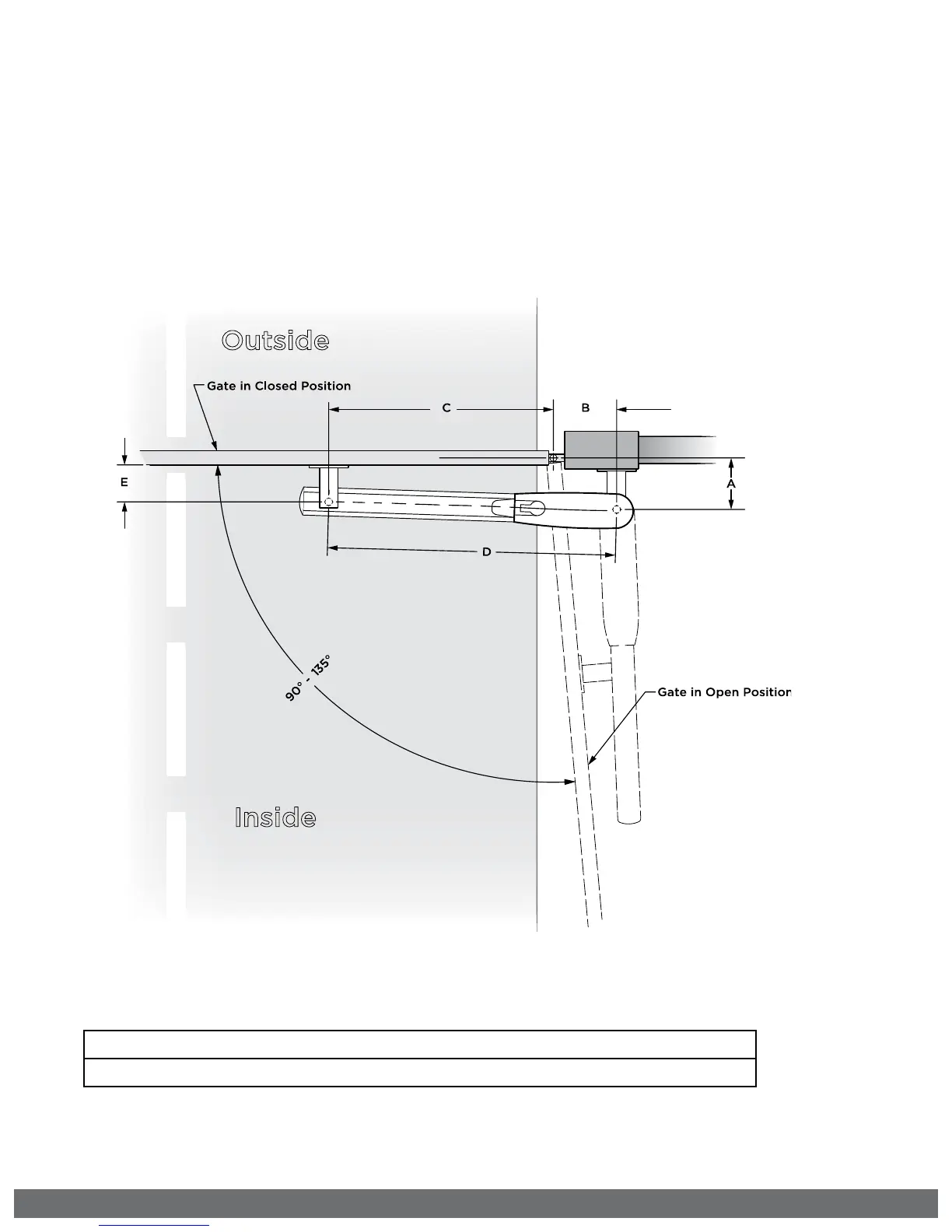

GATE OPERATOR INSTALLATION
ALL DIMENSIONS ARE MEASURED IN INCHES
Range A B C D E
90° - 120° 8.000 4.500 24.000 28.590 4.750
121° - 135° 4.750 7.750 24.000 31.770 4.750
! Varying from the dimensions provided above may severely affect the speed and
performance of the gate operator.
To Next Page
