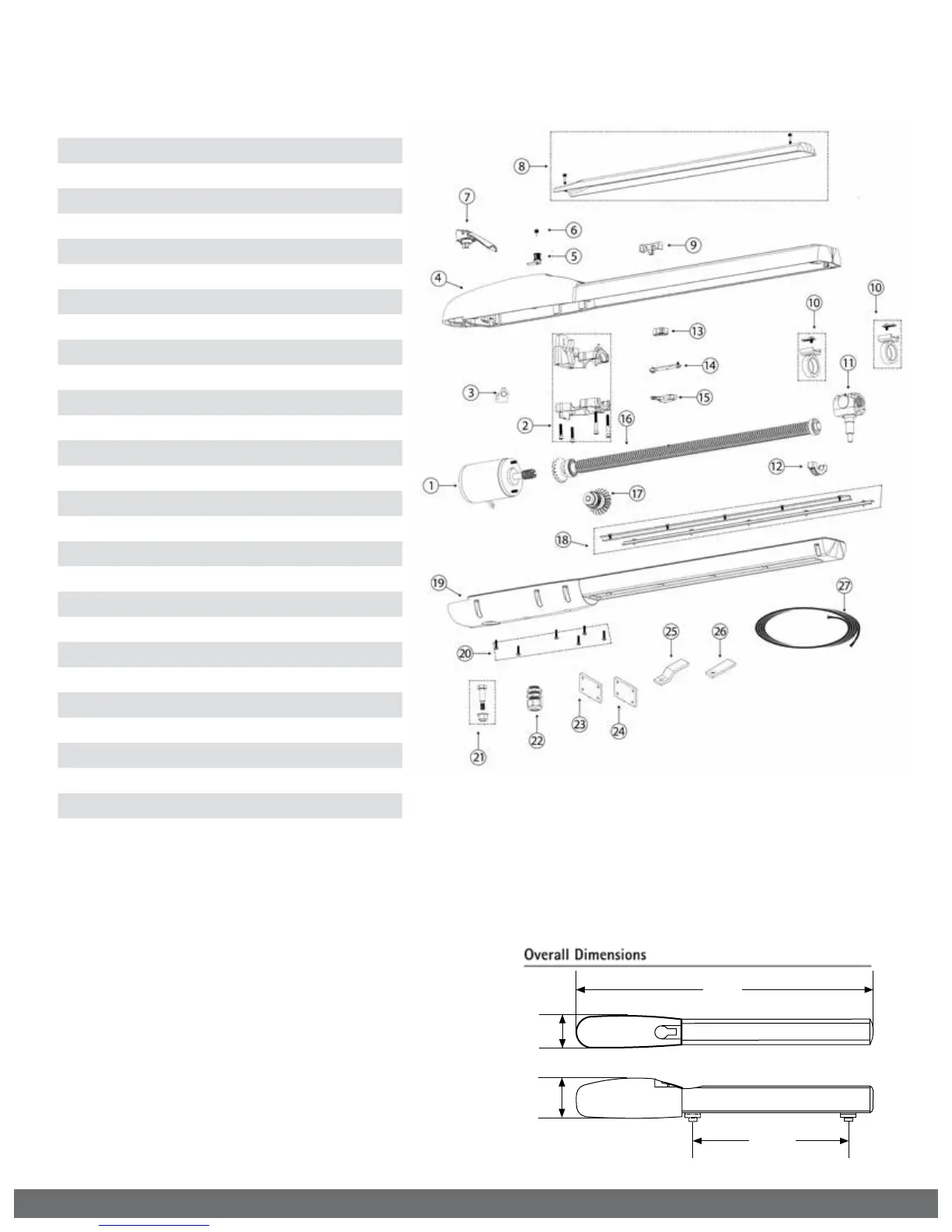

PARTS DIAGRAM - OPERATOR:
19.50“
36.4”
Max. Stroke
5.00”
3.9”
Item Description Part No.
1
Motor (24 VDC) E4MO
2
Gearbox Chassis
E4GBC
3 Grease Cup E4GGC
4 Casing Upper E4CU
5 Lock & Keys, Manual Release E4LMR
6 Key, Manual Release E4KEY
7 Handle, Manual Release E4HMR
8 Access Cover E4AC
9
Level Assembly
E4LA
10 Limit Positive Stop E4LPS
11 Carrier Assembly E4CA
12 Bearing Cap E4BC
13 Cam, Manual Release E4CMR
14 Plate, Manual Release E4PMR
15 Switch, Manual Release E4SMR
16 Leadscrew Assembly E4LSA
17 Gear Drive Assembly E4GDA
18 Dust Brush Set (optional) E4DB
19 Casing Lower E4CL
20 Casing Mounting Bolts E4CMB
21 Mounting Hardware, Back E4MHB
22 Strain Relief E4SR
23 Bracket Mounting Plate 3X4” E4BMP3X4
24 Bracket Mounting Plate 4X6” E4BMP4X6
25 Mounting Bracket, Front E4MBF
26 Mounting Bracket, Back E4MBB
27 2 Conductor Cable VA-2CB16
