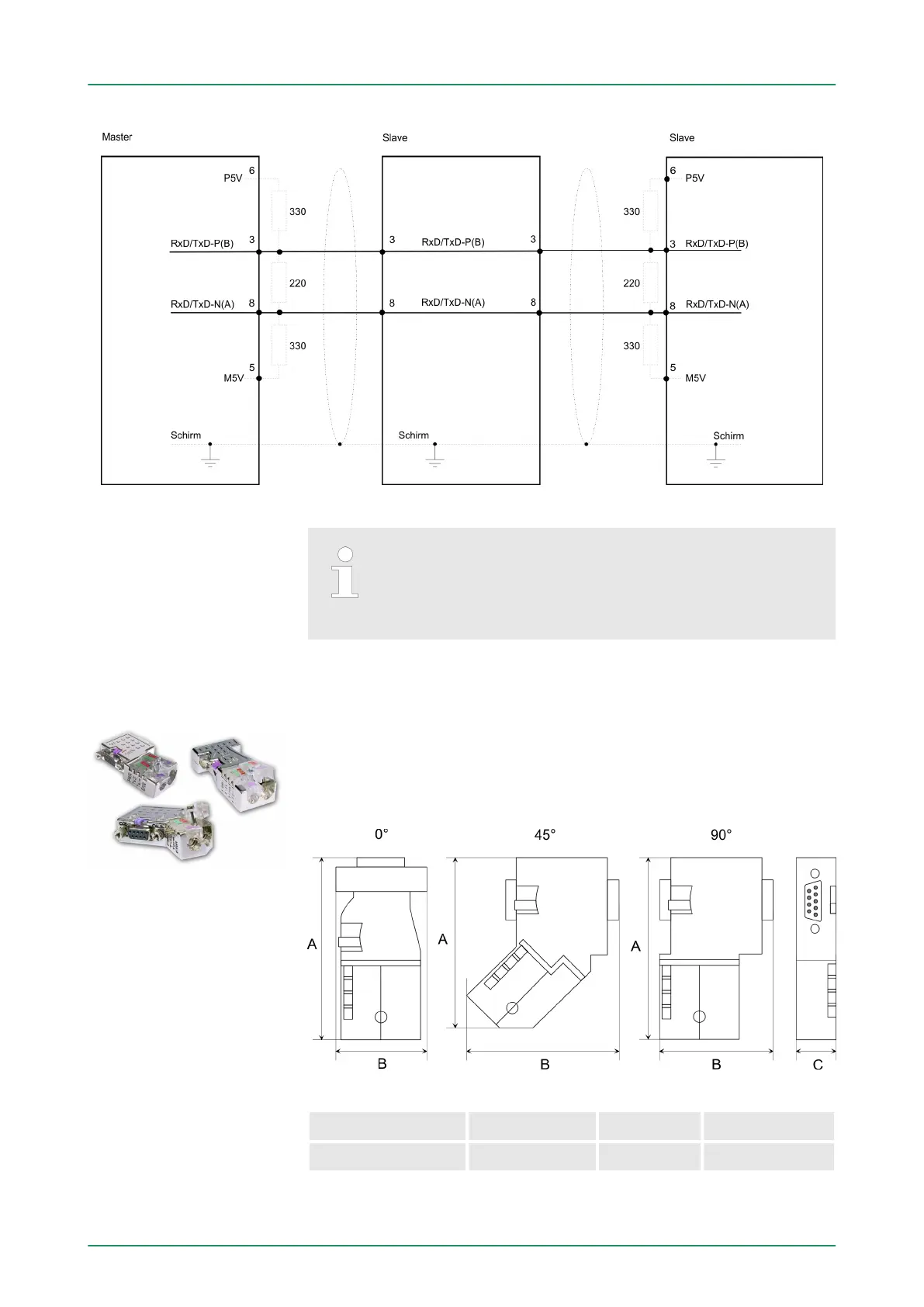

The PROFIBUS line has to be terminated with its ripple
resistor
. Please make sure to terminate the last partici-
pants on the bus at both ends by activating the termi-
nating resistor.
In PROFIBUS all participants are wired parallel. For that purpose, the
bus cable must be feed-through. V
ia the order number 972-0DP10
you may order the bus connector "EasyConn" from VIPA. This is a
bus connector with switchable terminating resistor and integrated bus
diagnostic.
Dimensions in mm 0° 45° 90°
A 64 61 66
EasyConn bus con-
nector
VIPA System 300S Deployment PROFIBUS communication
PROFIBUS installation guidelines
HB140 | CPU | 314-6CF03 | GB | 16-43 201
