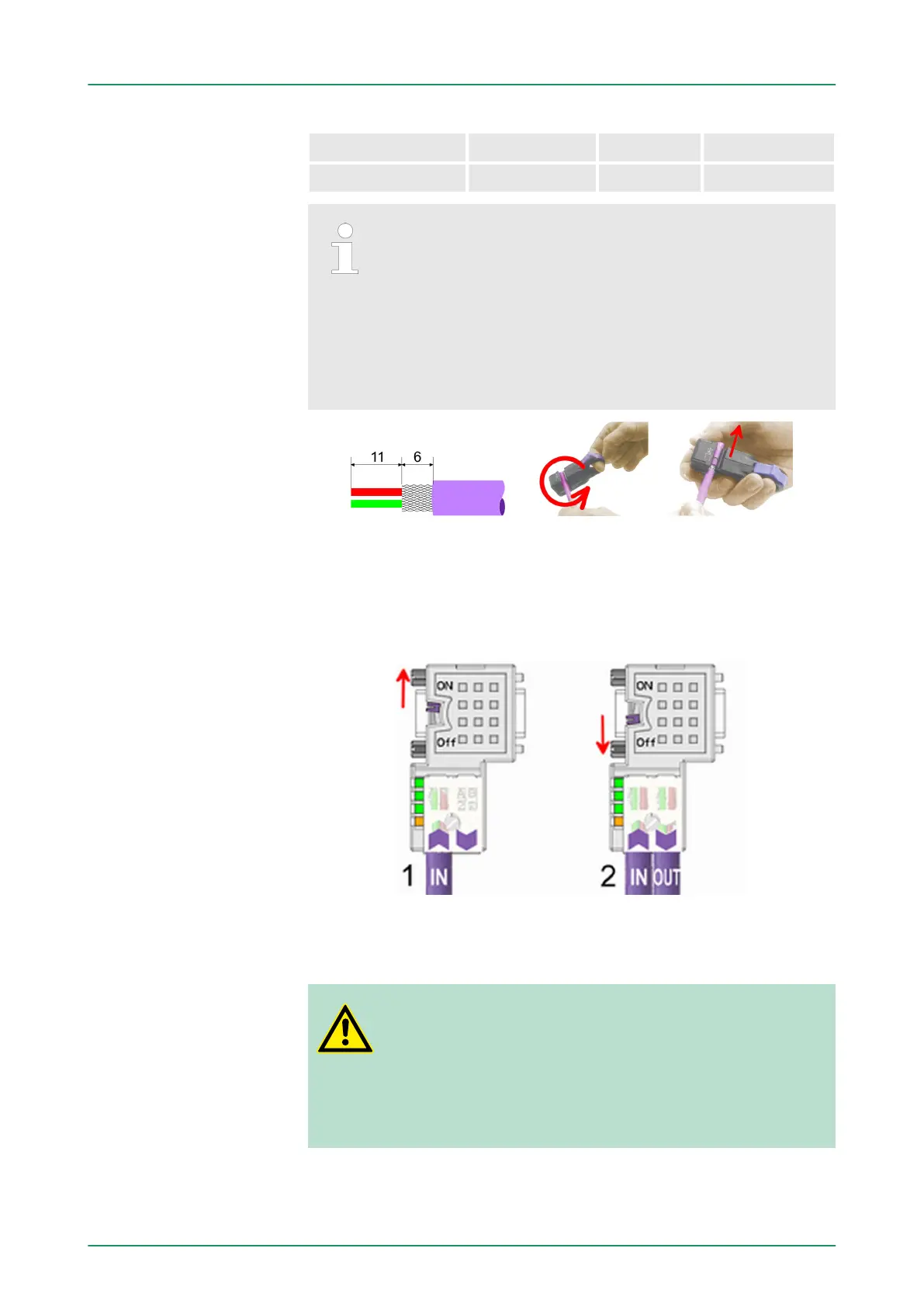

To connect this EasyConn plug, please use the
standard PROFIBUS cable type A (EN50170). Starting
with release 5 you also can use highly flexible bus
cable:
Lapp Kabel order no: 2170222, 2170822, 2170322.
W
ith the order no. 905-6AA00 VIPA offers the "Easy-
Strip" de-isolating tool that makes the connection of the
EasyConn much easier.
Dimensions in mm
The "EasyConn" bus connector is provided with a switch that is used
to activate a terminating resistor
.
[1] 1./last bus participant
[2] further participants
CAUTION!
The terminating resistor is only ef
fective, if the con-
nector is installed at a bus participant and the bus par-
ticipant is connected to a power supply.
The tightening torque of the screws to fix the connector
to a device must not exceed 0.02Nm!
Termination with "Easy-
Conn"
Wiring
VIPA System 300SDeployment PROFIBUS communication
PROFIBUS installation guidelines
