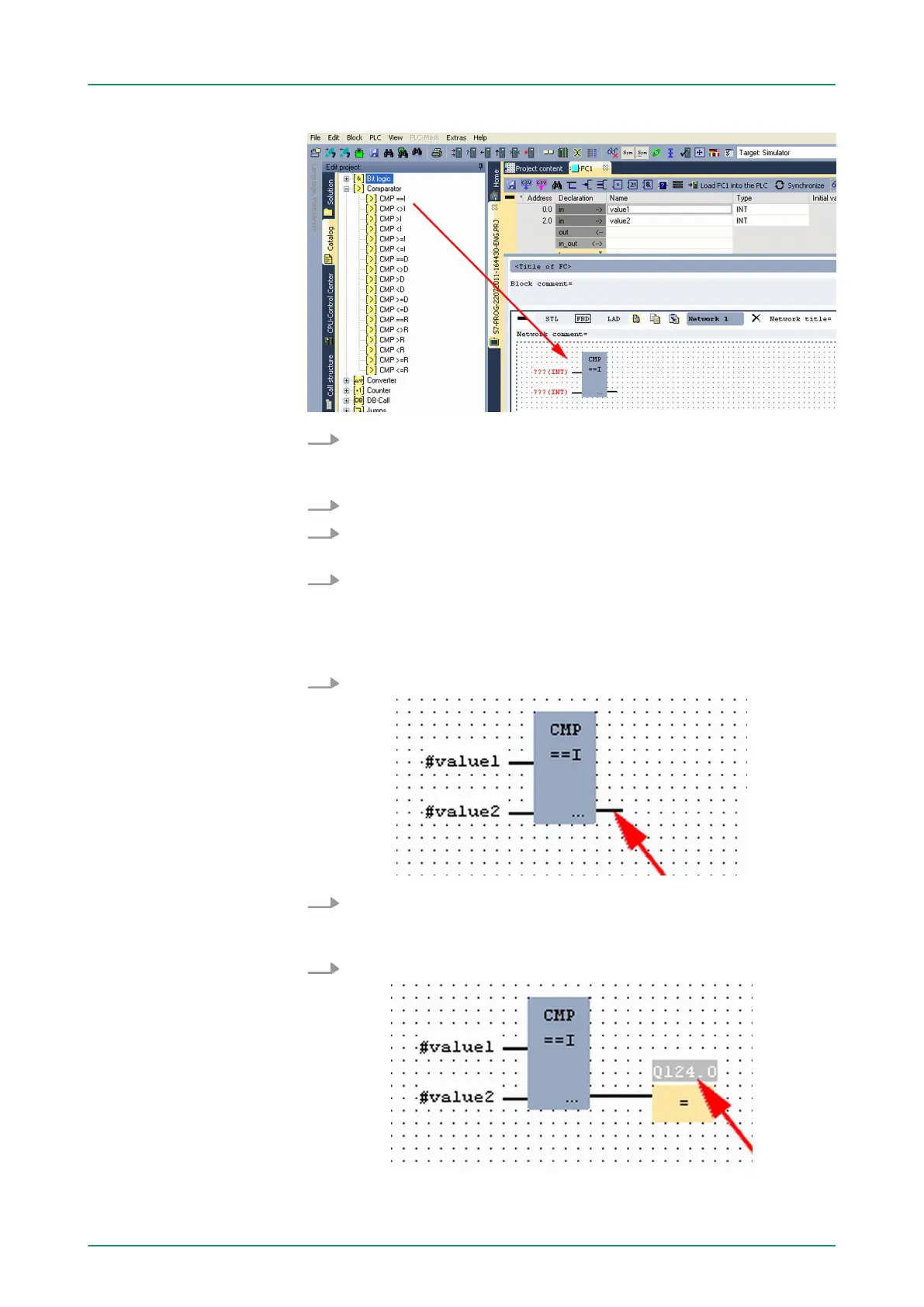

4. Click to the input left above and insert value1. Since these are
block parameters a selection list of block parameters may be
viewed by entering "#".
5. T
ype in "#" and press the [Return] key.
6. Choose the corresponding parameter of the list and confirm it
with the [Return]
key.
7. Proceed in the same way with the parameter value2.
The allocation to the corresponding output, here Q 124.0, takes place
with the following proceeding:
1. Click to the output at the right side of the operator
.
2. Open in the catalog the category ‘Bit logic’ and select the func-
tion ‘--[=]’ . The inserting of ‘--[=]’ corresponds to the WinPLC7
shortcut [F7].
3. Insert the output Q 124.0 by clicking to the operand.
ð
Network1 is finished, now
.
VIPA System 300S WinPLC7
Example project engineering > Project engineering
HB140 | CPU | 314-6CF03 | GB | 16-43 211
