Adding a new network
For further comparisons the operations "CMP>I" at Q 124.1 and
"CMP<I" at Q 124.2 are necessary
. Create a network for both opera-
tions with the following proceeding:
1. Move your mouse at an arbitrary position on the editor window
and press the right mouse key
.
2.
Select at ‘context menu è Insert new network’.
ð
A dialog field is opened to enter the position and number of
the networks.
3. Proceed as described for "Network 1".
4.
Save the FC 1 with ‘File è Save content of focused window
’
respectively press [Strg]+[S].
ð

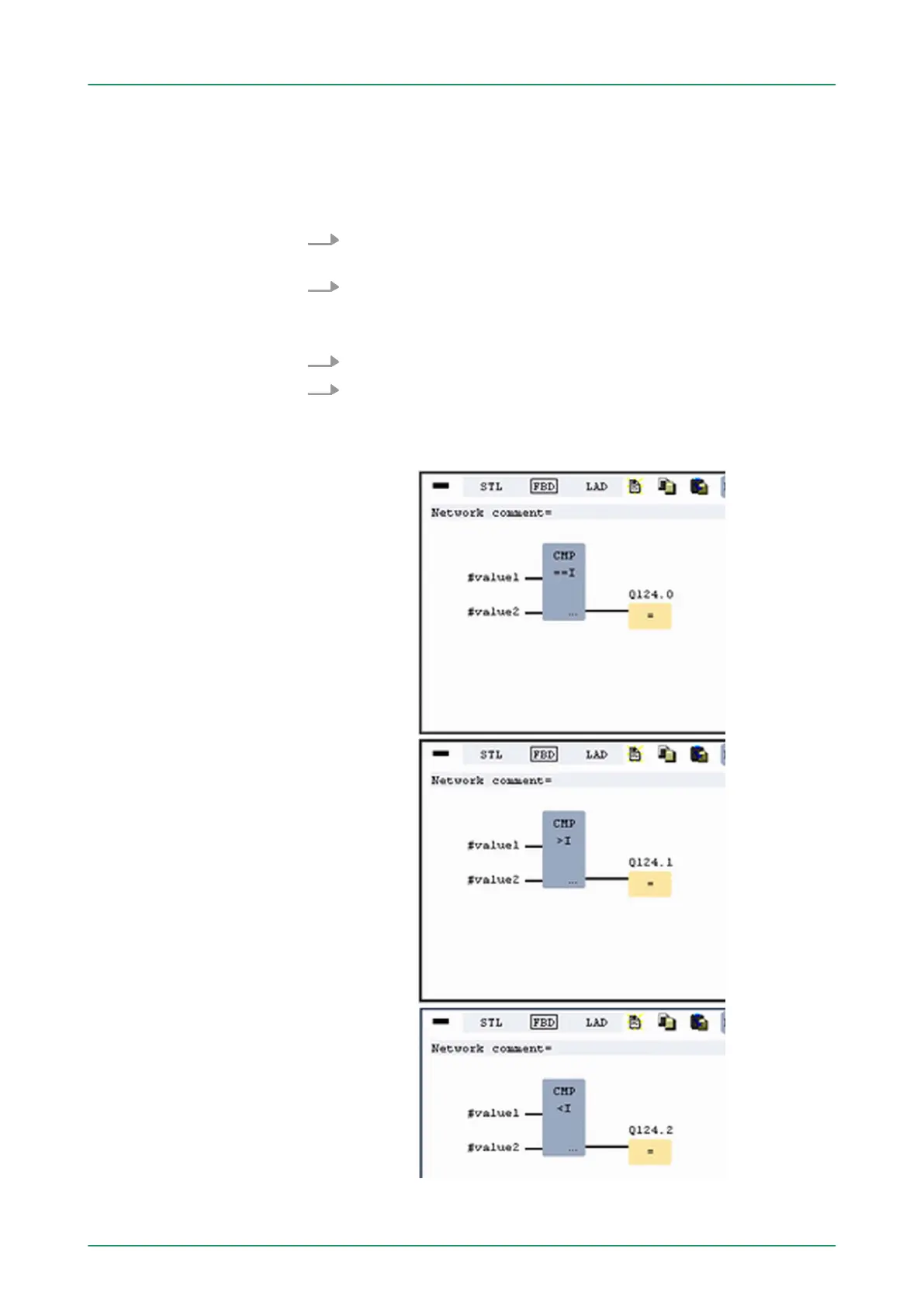

After you have programmed the still missing networks, the
FC 1 has the following structure:
VIPA System 300SWinPLC7
Example project engineering > Project engineering
