- 44 -
6.2
34
12

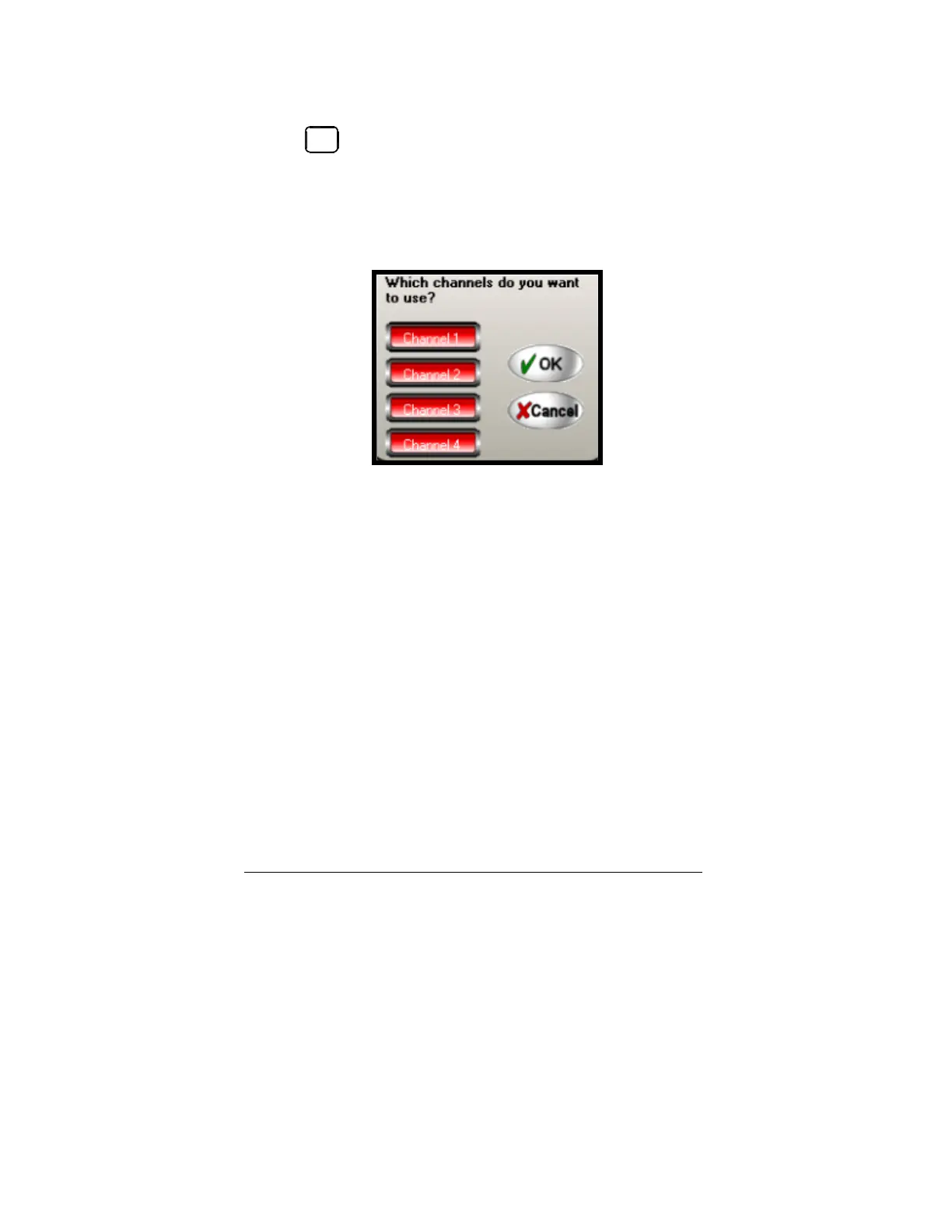

Select Channels
The Select Channels button choos
es which channels will be
displayed and (optionally) record
ed. Select th
e desired channels
by clicking on the appropriate chan
nel button. If
the button is
illuminated, the channel is selected.
Press OK to complete the selecti
on, or Cancel to abort the op-
eration.
47
49
Table of Contents
Table of Contents
2
Description
6
General
6
Functional Features
7
Specifications
8
Input Connections
8
Bridge Configurations
8
Display
8
Data Conversion
8
Measurement Range/Resolution
9
Measurement Accuracy
9
Gage Factor Control
9
Balance Control
9
Bridge Excitation
9
Communication Interface
9
Data Storage
9
Shunt Calibration
9
Analog Output
10
Power
10
Operational Environment
10
Case
10
Size & Weight
11
Front Panel
12
Usb Interface
12
Memory Card Slot
13
Input Connectors
13
Lcd Display
14
Keypad
14
Power Connector
14
Analog Output Connector
14
Operation
15
Getting Started
15
Power up
15
Input Connections
16
Quarter Bridge Connections
16
Half Bridge Connections
17
Full Bridges and Transducers
17
Operational Modes
18
Run Mode Operation
18
Command Mode Operation
22
Menu Commands
22
Main Menu
22
Select Channels Menu
23
Bridge Type Menu
24
Gage Factor/Scaling Menu
27
Recording Menu
31
Balance Mode Menu
32
Shunt Calibration Menu
34
Options Menu
35
Display Options Menu
36
Output Options Menu
37
Save Setup Option
38
Clock Options
38
Advanced Options Menu
39
Calibrate System
39
Erase MMC
43
Poisson's Ratio
44
Factory Defaults
44
Version
44
Battery Replacement
45
Software Operation
46
Overview
46
Select Channels
48
Bridge Type
49
K Gage Factor /Scaling
50
Power
51
Menu
52
Record
53
Balance
56
Calibrate
58
Backlight
59
Loading/Saving Setup Information
60
Transferring Data
61
Upgrading Firmware
63
