Vishay P3 - 4.5.4 Gage Factor;Scaling Menu

To Next Page

To Previous Page

- 23 -

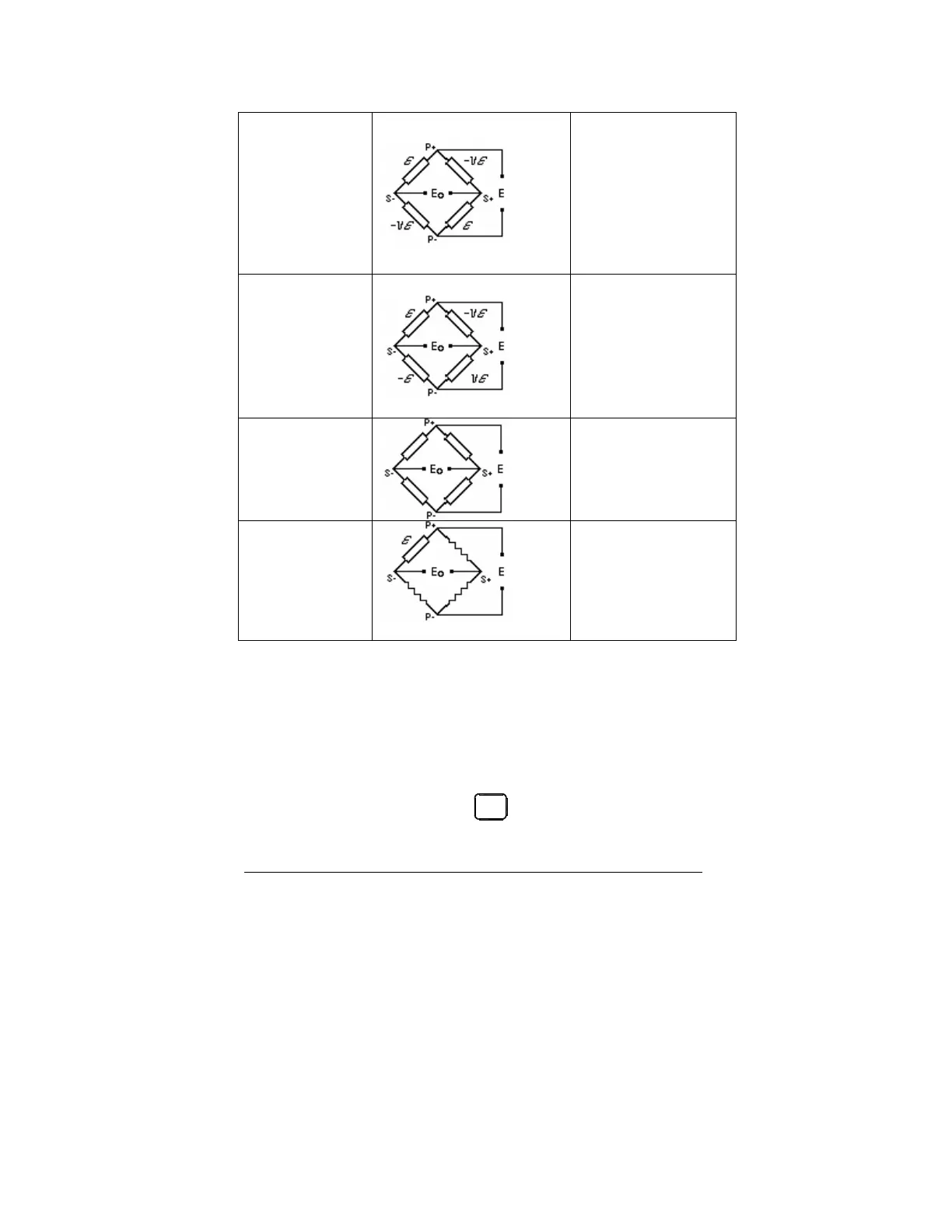

FB ν opp

Four active gages in

uniaxial stress field--

two aligned with

maximum principal

strain, the other two

with transverse "Pois-

son" strain (column).

Default Poisson’s Ratio

= 0.3.

FB ν adj

Four active gages in

uniaxial stress field -

two aligned with max-

imum principal strain,

the other two with

transverse "Poisson"

strain (beam). Default

Poisson’s Ratio = 0.3.

Undef FB

Undefined full bridge

circuit. No correction

for Wheatstone Bridge

nonlinearity or active

arms.

Undef HB/QB

Undefined half or quar-

ter bridge circuit. No

correction for Wheat-

stone Bridge nonlinear-

ity or active arms.

4.5.4 Gage Factor/Scaling Menu

The Gage Factor/Scaling Menu allows the user to scale the in-

put signal to display the measured data in the desired engineer-

ing units. The gage factor/scaling menu is accessible from the

main menu or by pressing the

key. In order to highlight the
