- 56 -
6.11
Loading/Saving Setup Information
System setup information, includi
ng balance and scaling infor-
mation can be saved to the flas
h memory on the P3 or loaded
and/or saved to the PC by choos
ing Load/Save setup from the
Options menu.

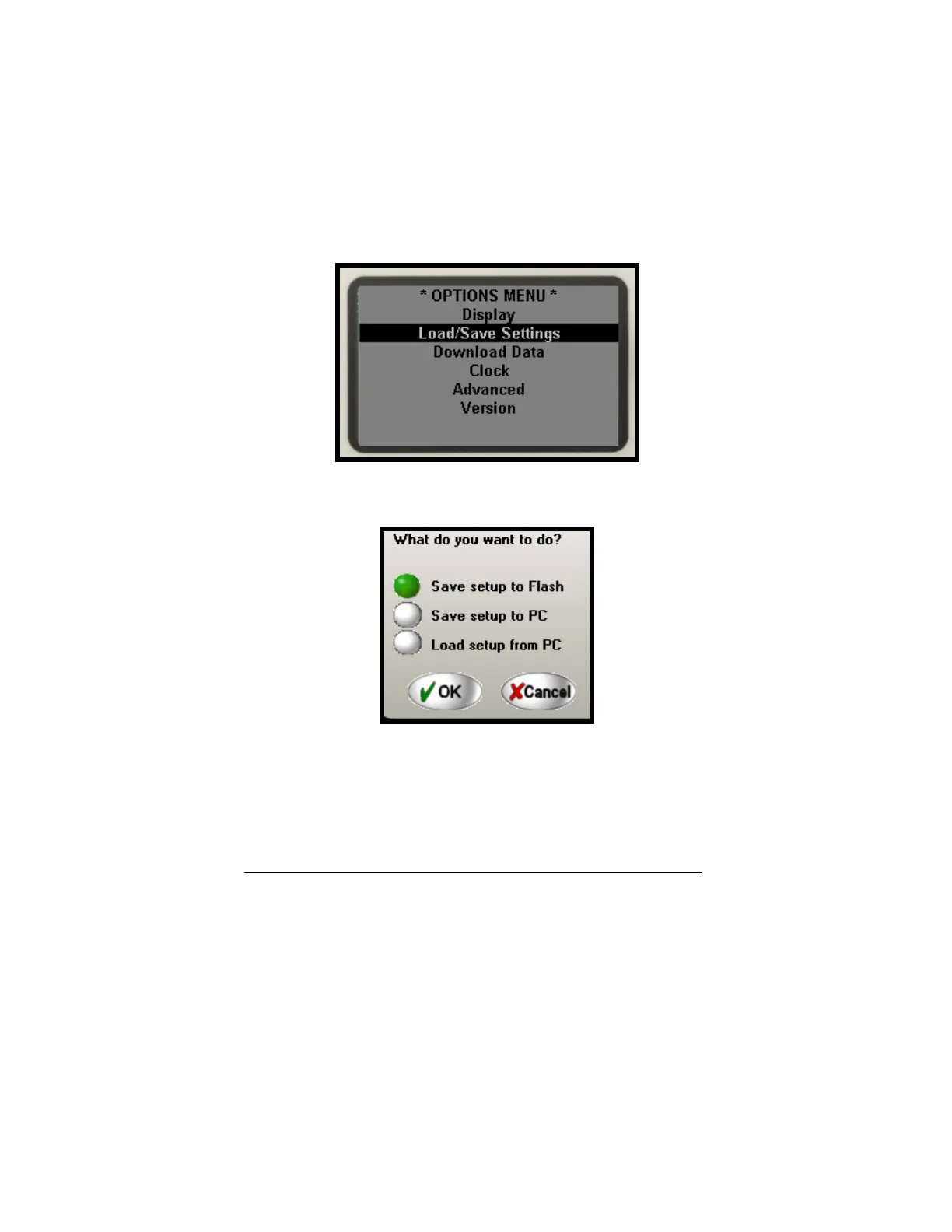

When selected, the following dialog appears:
Choose the desired option and press OK.
59
61
