124

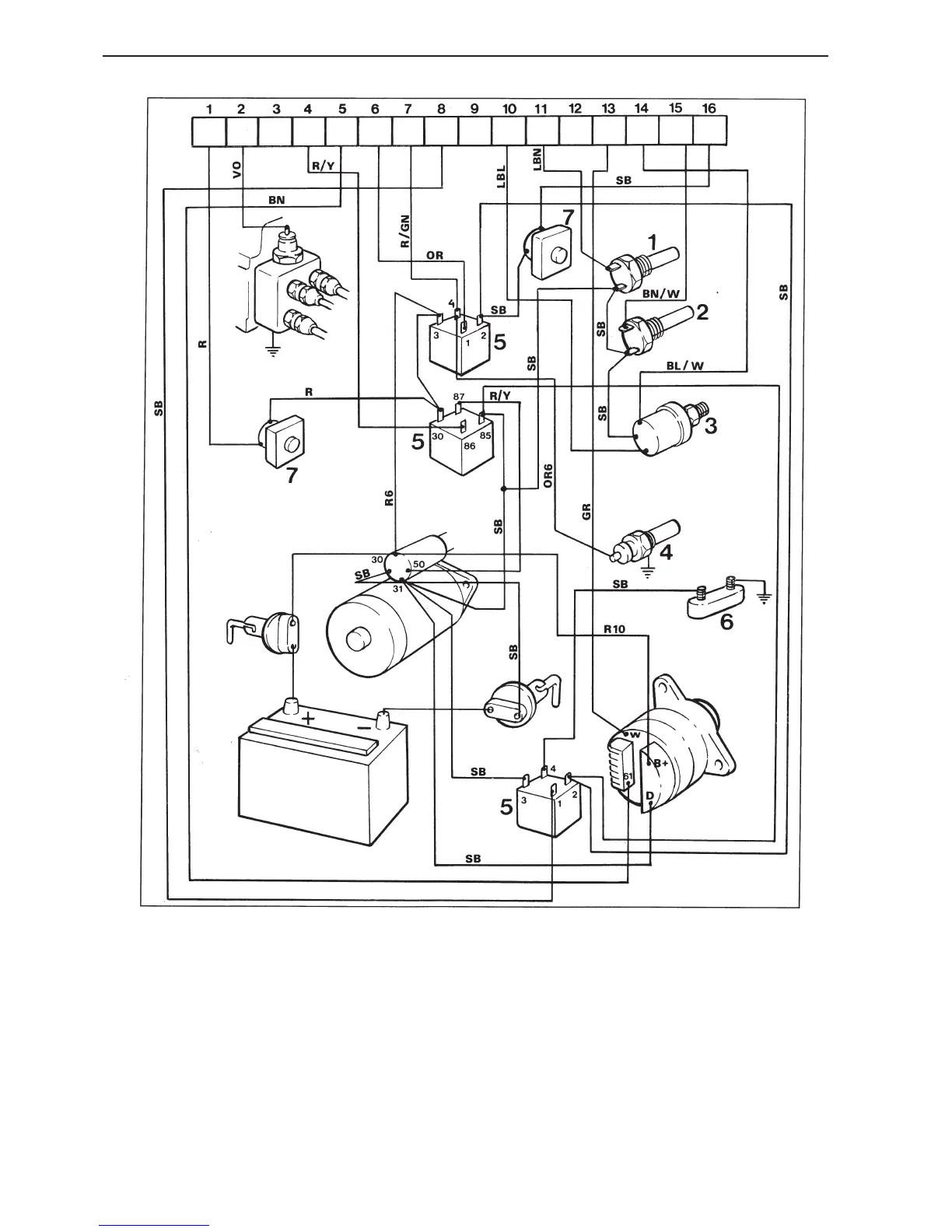

Electrical system
Engine
1. Engine coolant temperature
sensor
2. Coolant temperature switch
3. Oil pressure sensor
4. Pre-heating
5. Relay
6. Ground fuse
7. Fuses
Cable color
GR =gray
SB =black
BN =brown
LBN =light brown
R =red
PU =purple
GN =green
W =white
BL =blue
LBL=light blue
OR =orange
Unless otherwise stated, cable cross sections
= 1.5 mm
2
