45
Crankshaft assembly
Front sealing ring,
replacement (14A-02)
Special tools: 885031, 885032, 885033, 885037
1
Disconnect the battery
2
Remove the screw from the adjustment hole on the
top of the front end of the camshaft cover (12A.03/
A4). Turn the crankshaft until the adjustment hole in
the front of the camshaft front bearing journal corre-
sponds with the hole in the cover.
3
Install the adjustment drifts 885037 on the camshaft
and flywheel. Remove the starter motor, operation
22B-01.
4
Remove the generator (GEN) drive belt, operation
22A-03 and the pulley for the water pump.
5
Remove the crankshaft pulley, operation 14A-01A
or 14A-01B and remove the cap for the transmis-
sion cover, operation 15A-01.
6
Install two screws (M6 x 50) to secure the pulley to
the injection pump and remove the timing belt, oper-
ation 15A-04.
7
Remove the drive pulley from the crankshaft, opera-
tion 15A-07.
8
Remove the front key from the crankshaft.
9

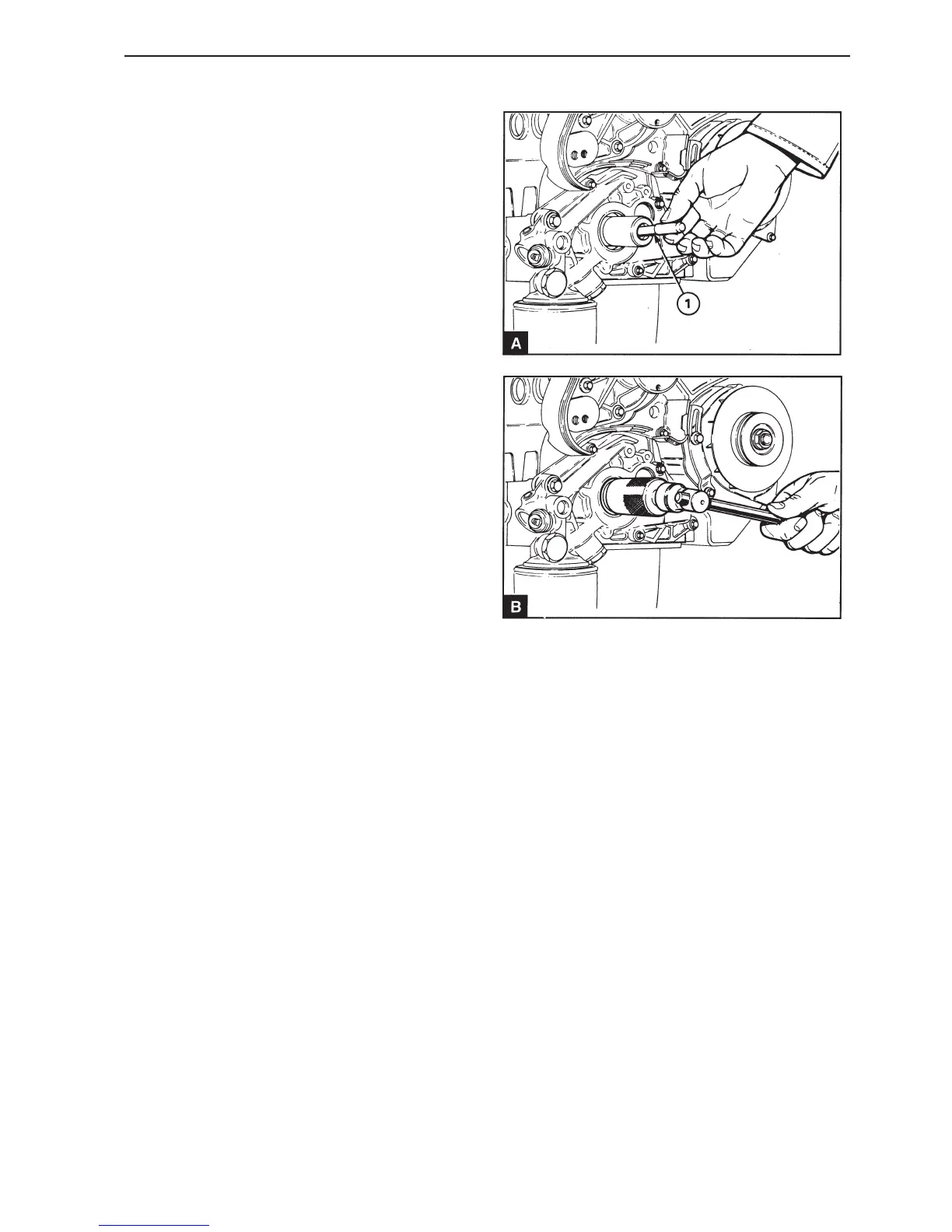

Install the adapter (A1) from the tool 885031 at the
front end of the crankshaft. Slacken off the center
screw so that it does not reach the adapter and in-
sert the main tool in the sealing ring. Turn the tool
clockwise to ensure that it is secure in the sealing
ring and tighten the center screw against the adapt-
er to remove the sealing ring (B). Remove the
adapter.
10
Check that the position for the sealing ring and the
crankshaft is clean and undamaged.
