Volvo Penta TAMD22 - Page 17

15
5
6
7
1 2 3 4
25
26
27
24
11 12 13 14 15 16 17
10
18
19
9
21
22
8
23

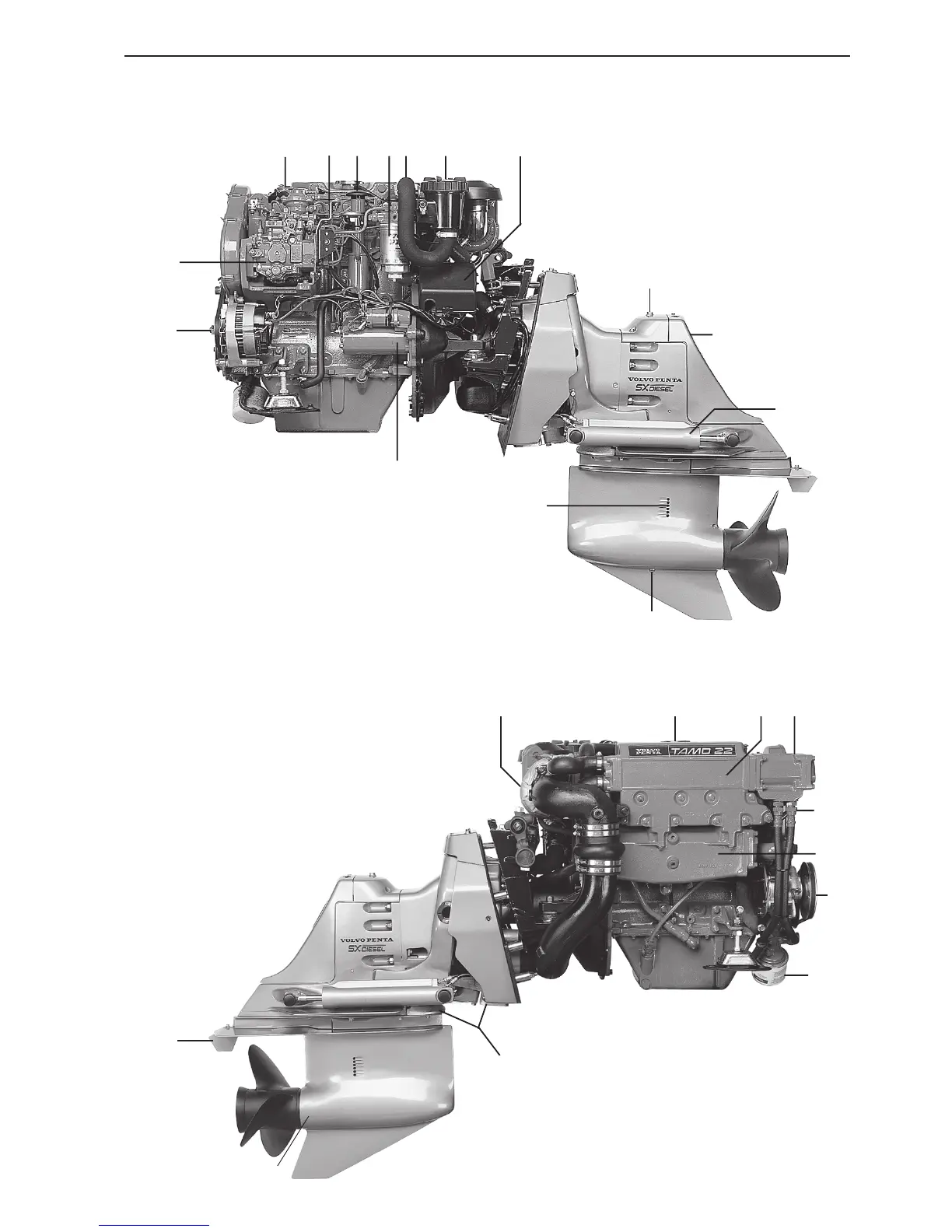

TAMD22P/SX
1. Turbo (TMD, TAMD)
2. Coolant filler
3. Heat exchanger
4. Oil cooler
5. Pipe for oil scavenging pump
6. Charge air cooler (CAC) (TAMD)
7. Oil filter
8. Starter motor
9. Generator
10. Injection pump
11. Fuel feed pump
12. Dipstick (engine)
13. Oil filler cap (engine)
14. Fuel filter
15. Sea water pump
16. Seawater filter (SX)
17. Central electronics unit
18. Oil dipstick (reverse gear / SX)
19. Oil filler (reverse gear / SX)
20. Oil cooler (reverse gear)
21. Seawater intake
22. Trim cylinder (SX)
23. Draining oil (SX)
24. Servo pump (SX)
25. Sacrificial anode (SX)
26. Sacrificial anode (SX)
27. Trim fin (SX)
General information
