94

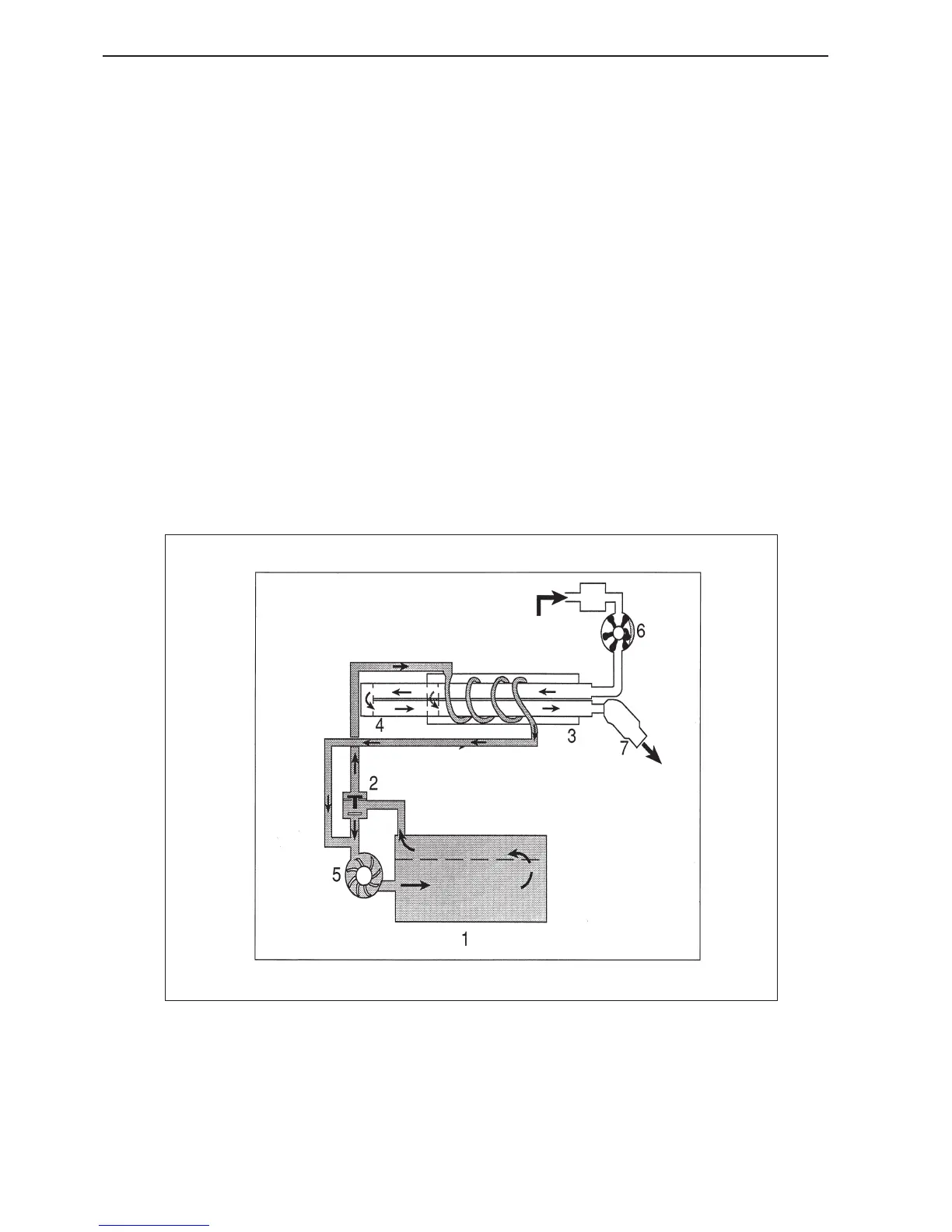

Cooling system
MD22L-B, MD22P-B, TMD22-B, TMD22P-C, TAMD22P-B
5. Freshwater pump
6. Sea water pump
7. Outlet bend
8. Charge air cooler (only TAMD22)
1. Cylinder block
2. Thermostat
3. The combined coolant tank, heat exchanger
and exhaust manifold
4. Engine oil cooler (MD22P, TMD22, TAMD22)
