Volvo A25E - Page 12

Presentation
12 Plates and decals
Information and warning plates
The operator shall be aware of and follow the information and warning decals that are found on the machine. All
decals are not found on all machines, decals are market and machine-dependent.
Decals shall be kept clean and free from dirt so that they are legible. If they have been lost or no longer are legible,
they shall be replaced immediately. Spare part numbers (order number) are found on each decal as well as in the
parts catalogue.
NOTE! The text “WARNING” is used on warning decals in North America.

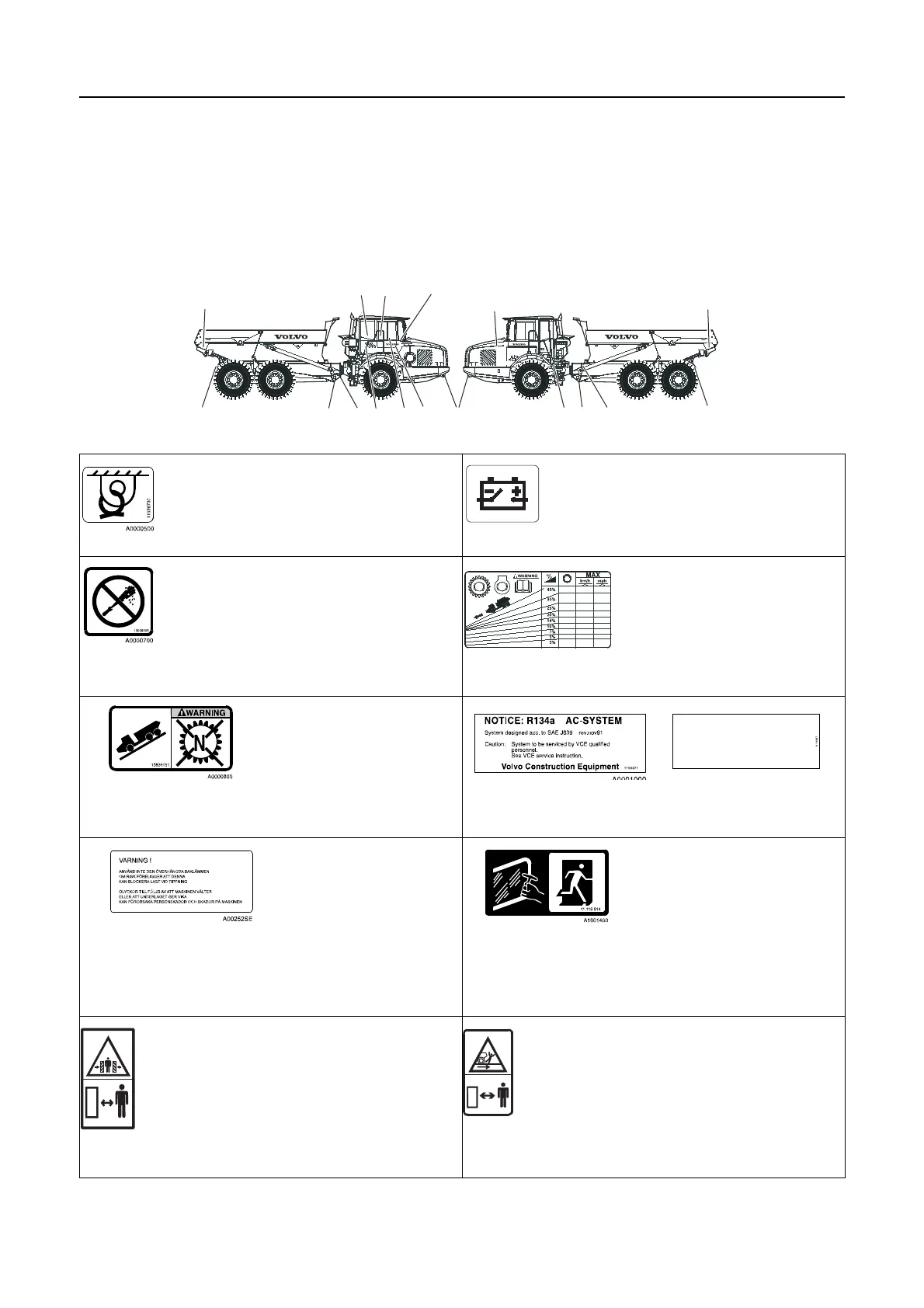

1 Attaching point for lashing
2 Battery disconnect switch
3 Avoid directing water jet against air intakes.
4 Retarder diagram (on page 86 the decal is
shown in larger format and for each machine model)
5 WARNING! Do not operate downhill with the
gear selector in neutral. Only change gear with the
accelerator released.
6 Air conditioning filled with R134a. Opening
pressure, safety valve (optional equipment)
7 WARNING! Do not use the overhung tail gate
(optional equipment), if there is a risk that it may
block the load when tipping. Accidents caused by
the machine overturning or the ground giving way
can cause injuries and damage to the machine.
8 Emergency exit
9 WARNING! Risk of crushing – articulated frame
steering.
10 WARNING! Do not remain within the working
area of a reversing machine.
