Instrument panels

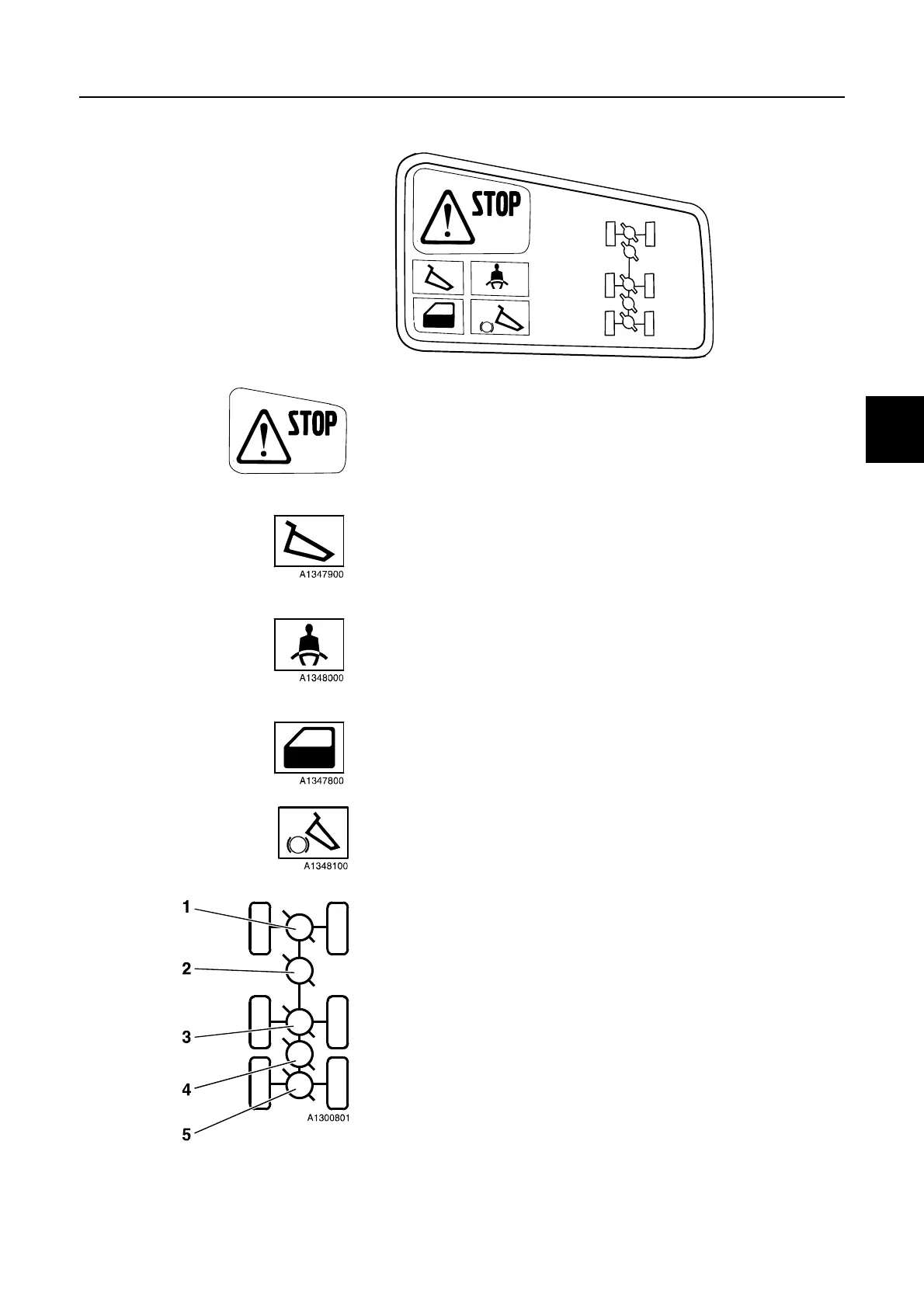

Right instrument panel 25
1 Control lamps
Red central warning (STOP)
NOTE! If the lamp flashes while operating – stop the machine
immediately and investigate the cause.
See also page 37.
Dump body up, red
Lights when the dump body is raised. Does not light when the
dump body is in operating position (i.e., when the dump body is
resting against the trailer frame).
Seat belt reminder, red
Flashes if the operator is sitting in the seat and forgotten to fasten
the seat belt with the engine running.
Door open, red
Lights when the door is open. When the door is open, the
maximum speed of the machine is limited.
Load and dump brake, orange
Lights when the load and dump brake function is engaged. See
page 70.
Indicator for differential locks / 6-wheel drive
The lamps in the indicator are on when respective function is
activated.
1 Transverse differential lock, front axle
2 Longitudinal differential lock
3 Transverse differential lock, front bogie axle
4 6-wheel drive
5 Transverse differential lock, rear bogie axle
See page 66.
Machines equipped with ATC, see page 49.
A9000200
A
1
