Service and maintenance
Compressed-air system 145
Compressed-air system

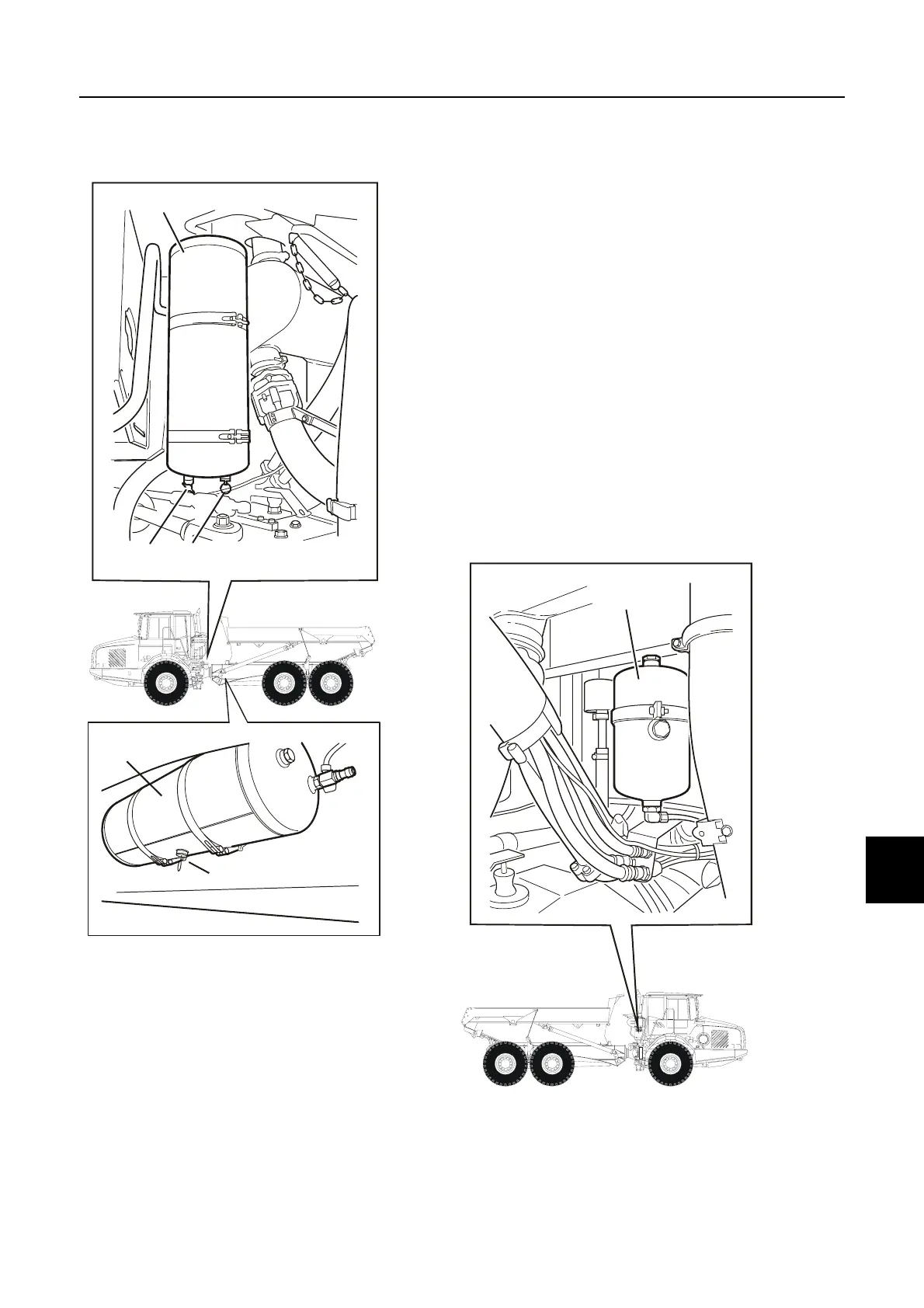

Compressed air reservoirs
The machine is equipped with three compressed air reservoirs.
Two bigger air reservoirs, one (A) is located to the left behind the
cab, the other (D) at the front in the rear frame. A smaller air
reservoir (F) is located to the right behind the cab.
The compressed air reservoirs are kept free from condensation
water by an air drier that has a drier cartridge (G), see page 146.
The bigger air reservoirs can be drained manually.
Compressed-air reservoirs, draining
Drain the air reservoirs (A) every 50 hours.
If the air drier function is correct, normally no condensation water
should run out when draining.
1
7
7
D
C
B
A
E
A Air reservoir
B Filler valve
C Draining
D Air reservoir
E Draining
F Air reservoir
1
7
7
F
F
