Specifications

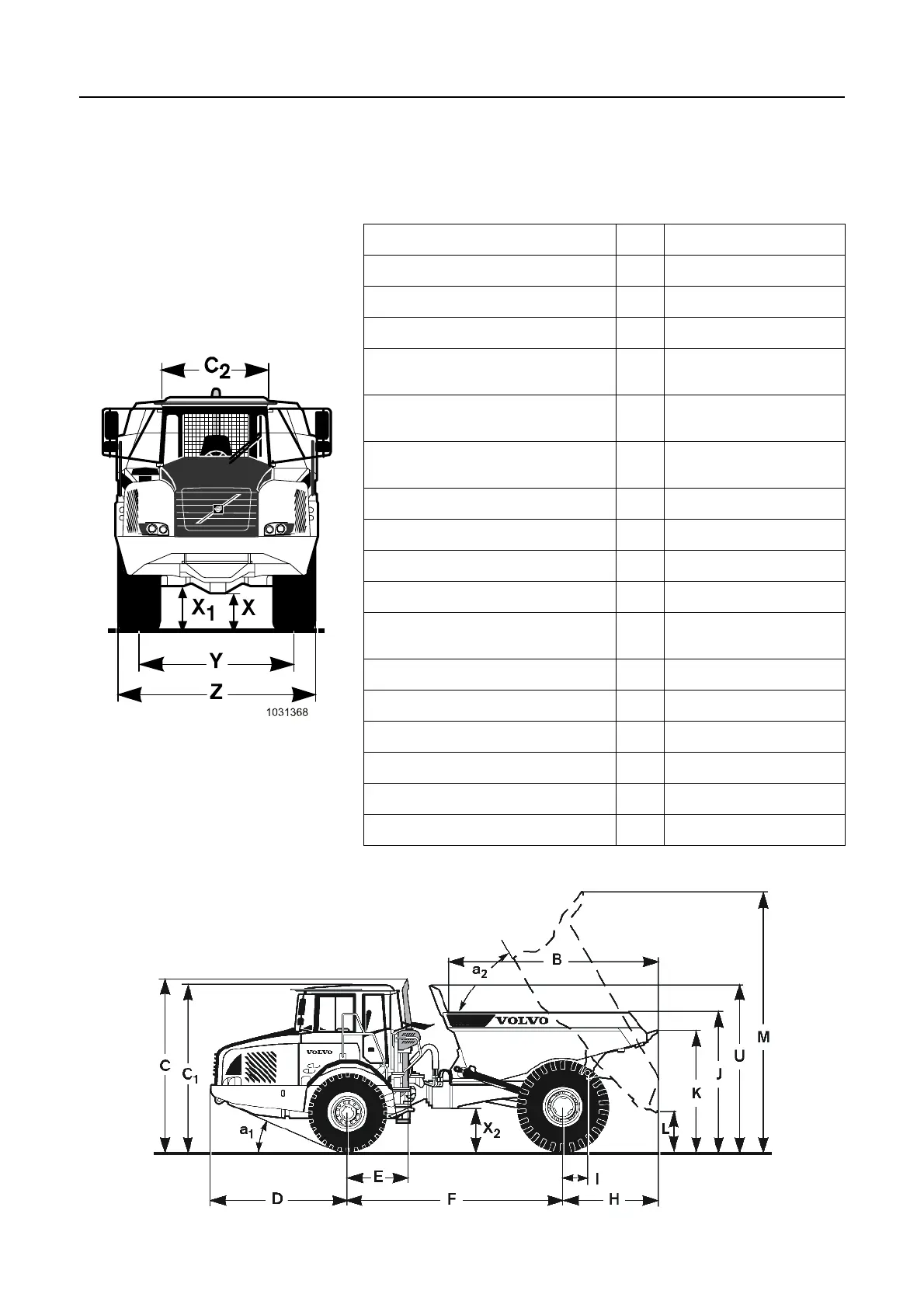

196 Dimensional drawing, A25E 4x4 and A25ETR
Dimensional drawing, A25E 4x4 and A25ETR
The dimensions apply to unloaded machine with wheel equipment front 23,5 R25*, rear 29,5 R 25 *
* (without turn-around wheels, A25ETR).
Dimensions
Overall length A 8939 mm (29 ft 3.9 in)
Overall length, tractor unit A
1
4954 mm (16 ft 3.0 in)
Overall length, trailer unit A
2
4558 mm (14 ft 11.4 in)
Overall length without rear
tailgate
A
3
8736 mm (28 ft 7.9 in)
Dump body length, standard
body
B 4219 mm (13 ft 10.1 in)
Overall height across exhaust
pipe
C 3470 mm (11 ft 4.6 in)
Height to roof of cab C
1
* 3332 mm (10 ft 11.2 in)
Width across cab roof C
2
1768 mm (5 ft 4.3 in)
Overhang, front D 2766 mm (9 ft 0.9 in)
Overhang, front, to lashing eye D
1
2605 mm (8 ft 6.6 in)
Distance, front axle – steering
centre
E 1210 mm (3 ft 11.6 in)
Wheel base, drive axles F 4254 mm (13 ft 11.5 in)
Overhang, rear H 1919 mm (6 ft 3.6 in)
Overhang, bottom of dump body I 495 mm (1 ft 7.5 in)
Loading height J 2794 mm (9 ft 2.0 in)
Height to dump body K 2416 mm (7 ft 11.1 in)
Free tipping height L 773 mm (2 ft 6.4 in)
1015017
