Product plates

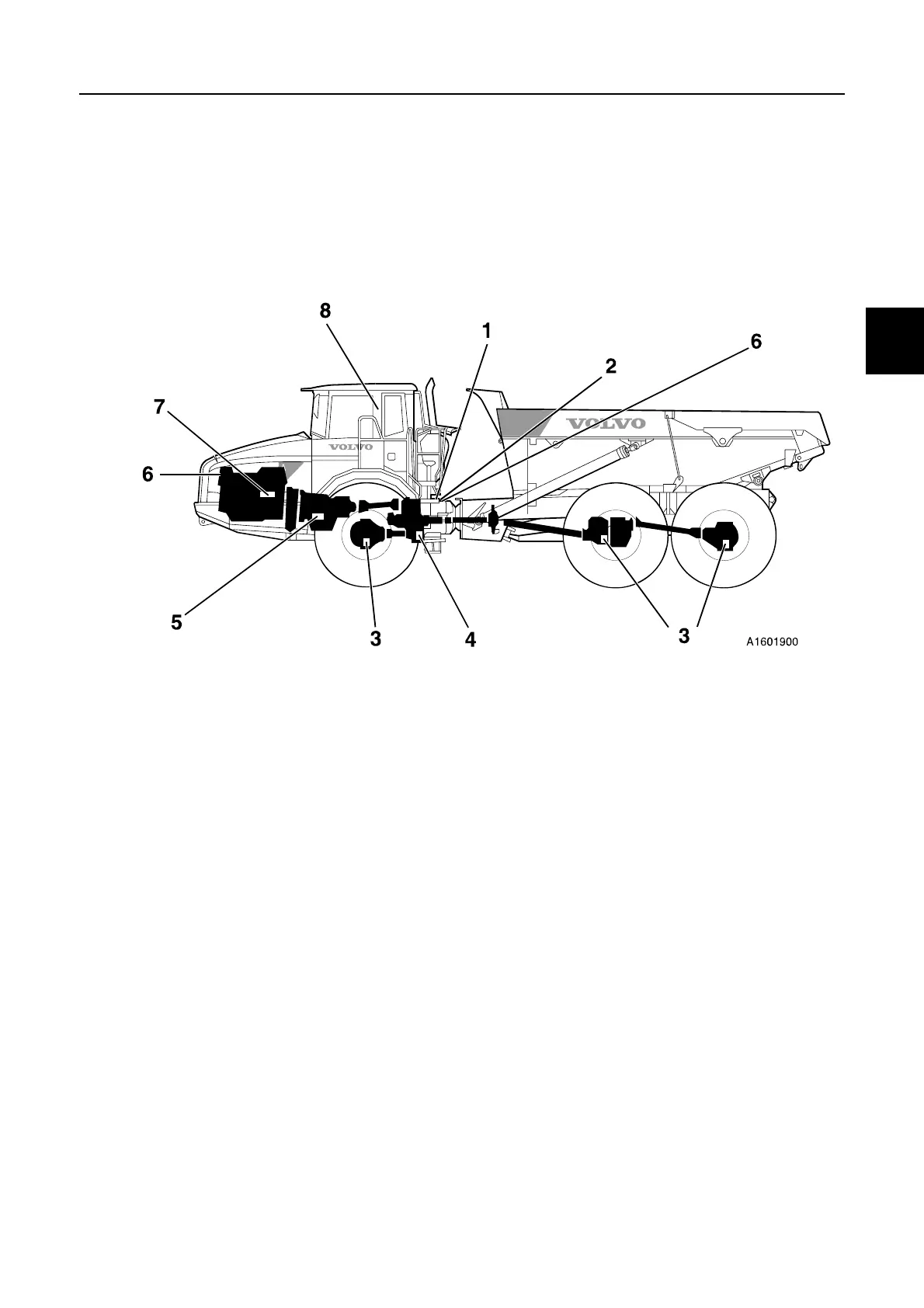

The following shows the product plates that should be found on the
machine.
When ordering spare parts and when making enquiries by
telephone or correspondence, the model designation and
Product Identification Number (PIN).
1 Product plate with Product Identification Number, PIN for
complete machine (includes model number, product number,
and serial number). Where applicable, product plate CE with
CE-approval, machine weight, engine power, manufacturing
year, and serial number. The plate is positioned on the left side
of the tractor unit's frame by the steering joint.
2 The serial number of the machine is stamped into the frame on
the right side of the tractor unit, by the steering joint.
3 The serial number of the drive axles is positioned on the axle
housing.
4 The serial number of the dropbox is positioned at the back of
the box to the right.
5 The transmission type designation and serial number are
positioned on its left side.
6 The decal ”Important engine information” is located on the
engine's valve cover and on the engine-ECU.
7 The engine type designation, part and serial numbers are
stamped into both sides of the cylinder block.
8 Cab type, type approval and serial number are positioned on
the left side in the cab.
