Other controls
Controls 45
4 Service socket
Service sockets for MATRIS and VCADS Pro are positioned in the
cab, to the right under the steering wheel, to allow readings by
service personnel.

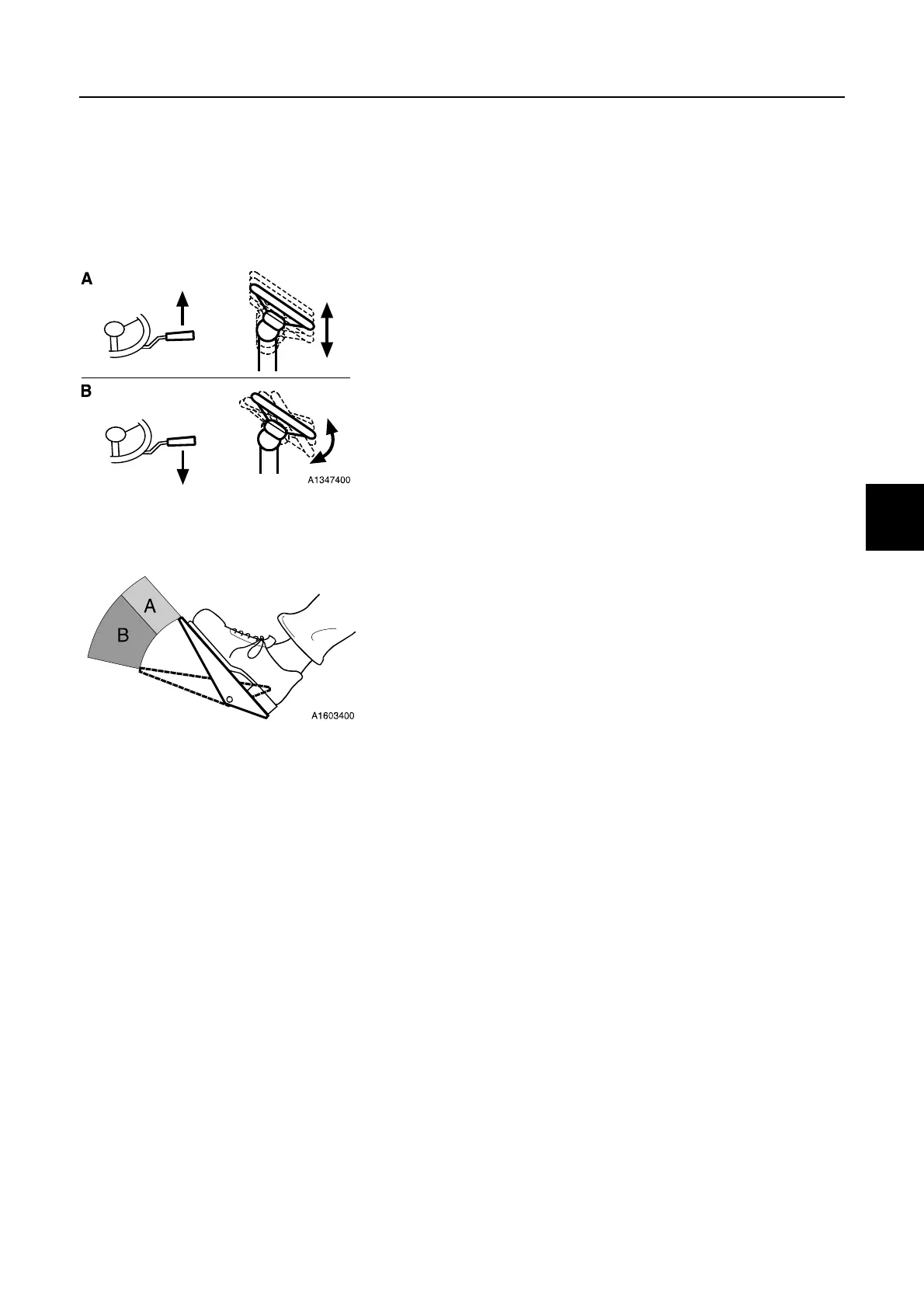

5 Steering wheel adjustment
The steering wheel is adjustable as to its inclination and vertical
position.
Control up (A) = Steering wheel may be raised or lowered.
Control down (B) = Steering wheel can be angled to different
positions.
6 Brake pedal
The brake pedal has two functions; retarder and service brake. The
pedal's retarder function is activated with a switch, see page 47.
The following applies with activated retarder function:
Range A = Only retarder (full braking power in the highest gears)
Range B = Service brake together with retarder
7 Accelerator pedal
The accelerator pedal also provides possibility for exhaust brake
when the pedal is fully let up, depending on switch position. See
page 47.
