Operating instructions
Tipping 77
Tipping
When tipping, observe the following:
– Steer the machine so that it is straight and with the trailer on
level ground.
– Ensure that no persons are near the machine.
If conditions permit, tipping may be carried out while moving.
Tipping control
Dump body lowered by hydraulic pressure =
position 1
Used when the dump body is in such a position that it is not
lowered by its own weight.
Move the tipping control to position 2 when the dump body begins
to lower by its own weight.
Floating position = position 2
NOTE! During loading and transporting this position should
be selected.
This position is used for all operation with empty or loaded dump
body. Can be used when the dump body is in such a position that
it will lower by its own weight.
NOTE! If the operator leaves the operator seat, the tipping
control automatically moves to holding position.
Holding position = position 3
Is used for interrupting the tipping or lowering movements. The
dump body stops in the current position.
Tipping position = position 4
Is used when tipping. Keep the tipping control in this position.
Reduce the engine speed before the dump body reaches its top
position.

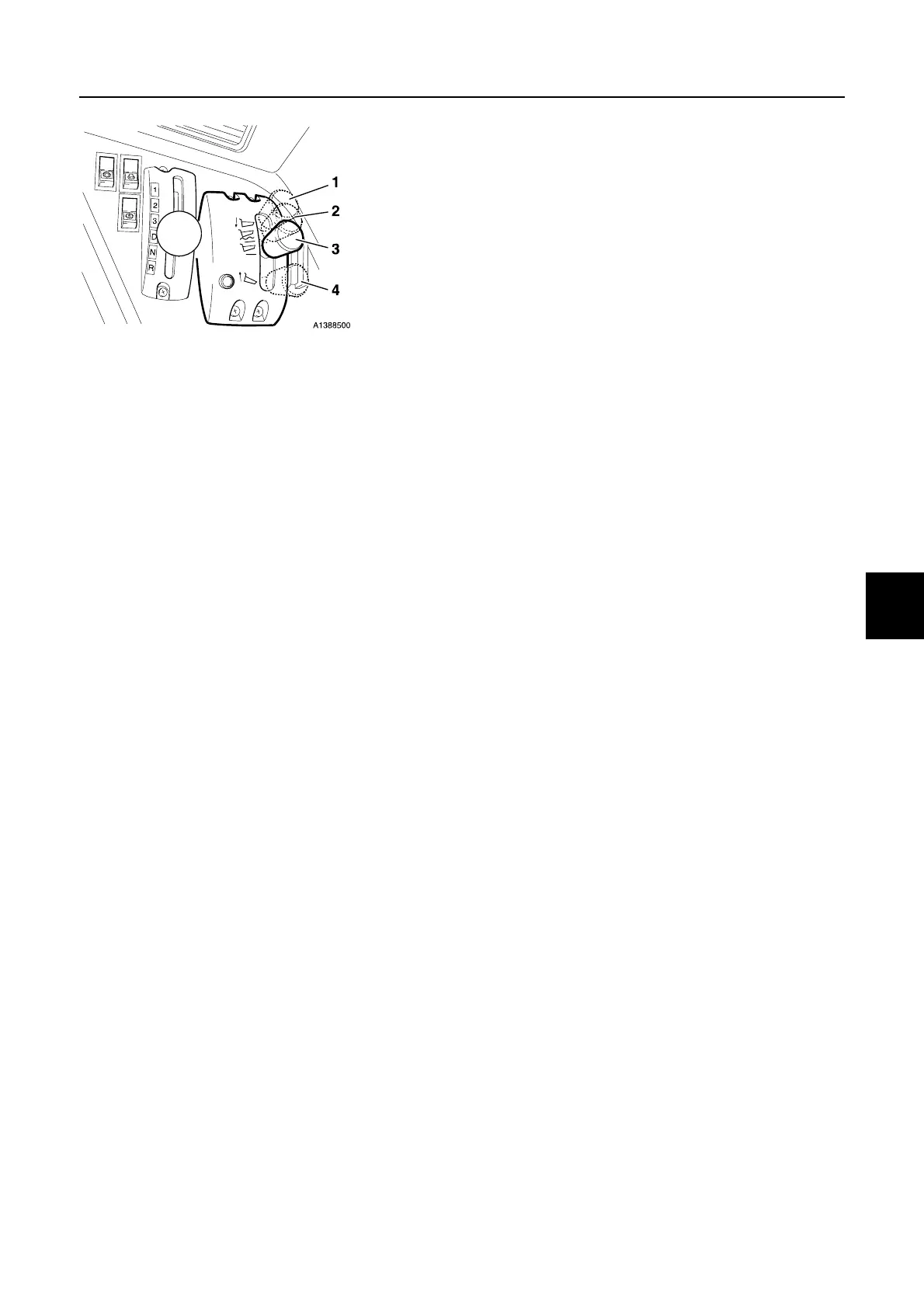

Tipping control
1 Lowering with pressure
2 Floating position
3 Holding position
4 Tipping position
