Volvo A25E - Page 197

Specifications

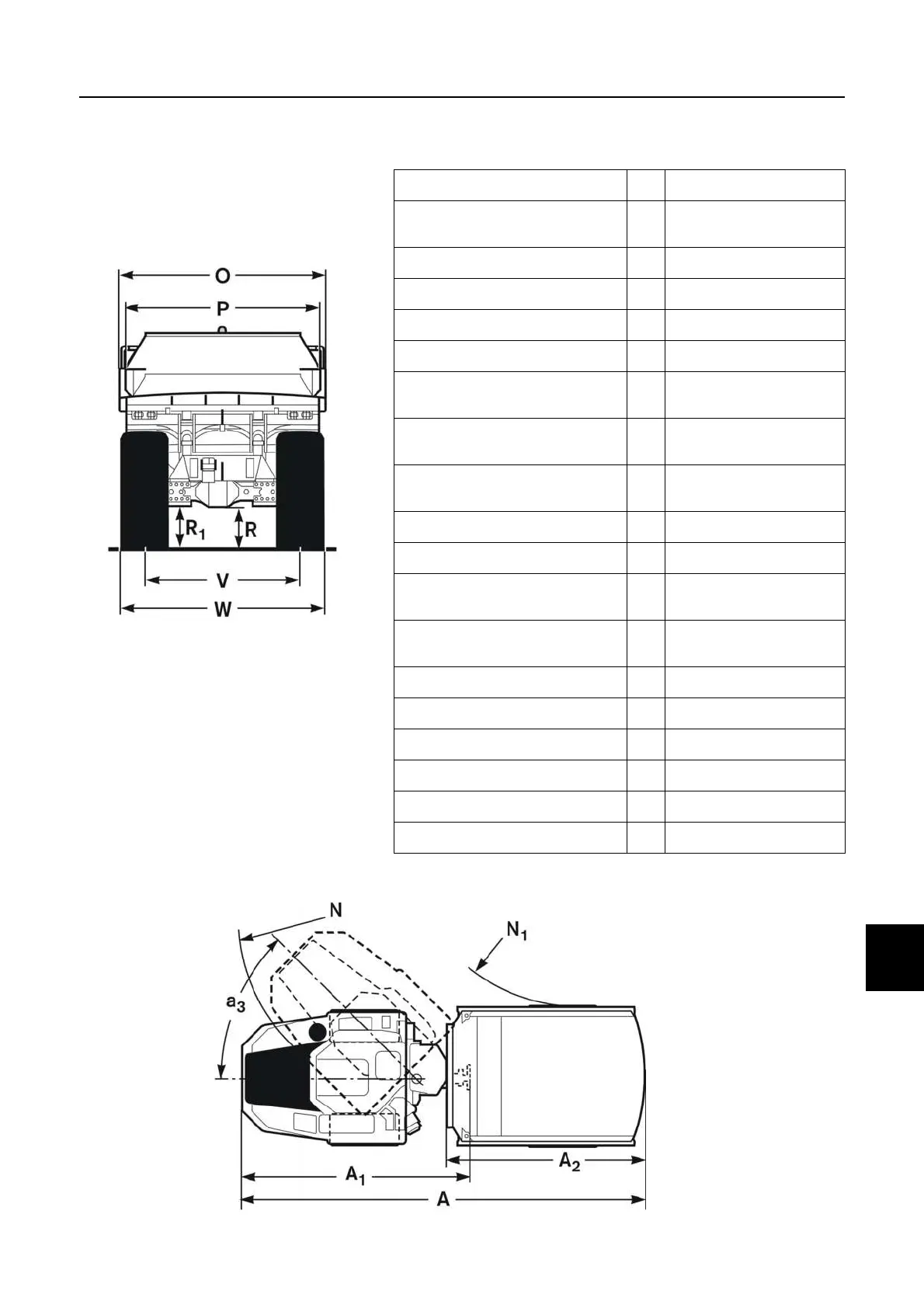

Dimensional drawing, A25E 4x4 and A25ETR 197
Dimensions
Overall height, tipped dump
body
M 5176 mm (16 ft 11.8 in)
Outer turning radius N 7092 mm (23 ft 3.2 in)
Inner turning radius N
1
3197 mm (10 ft 5.9 in)
Outside width, dump body O 3130 mm (10 ft 3.2 in)
Inside width, dump body P 2930 mm (9 ft 7.4 in)
Lowest ground clearance,
trailer unit
R 637 mm (2 ft 1.1 in)
Ground clearance axle, trailer
unit
R
1
664 mm (2 ft 2.1 in)
Max. height, upper body plate
dump body
U 3317 mm (10 ft 10.6 in)
Track width, trailer unit V 2374 mm (7 ft 9.5 in)
Overall width, trailer unit W 3117 mm (10 ft 2.7 in)
Lowest ground clearance,
tractor unit
X 461 mm (1 ft 6.1 in)
Ground clearance axle, tractor
unit
X
1
585 mm (1 ft 11.0 in)
Ground clearance, hitch X
2
886 mm (2 ft 10.9 in)
Track width, tractor unit Y 2258 mm (7 ft 4.9 in)
Overall width, tractor unit Z 2859 mm (9 ft 4.6 in)
Approach angle a
1
23.1°
Tipping angle a
2
59°
Max. steering lock a
3
45°
