Service and maintenance
136 Power transmission
Transmission oil, changing
Change oil every 1000 hours. A first change of oil and oil filter
should be carried out at the 100 hour warranty inspection.
Conditions for the 1000 hour interval to apply are that:
– the two oil filters are changed every time that the oil is changed.
– the oil filters meet Volvo CE specifications, which is the case
with genuine parts from Volvo CE.
– use oil according to recommendation on page 167.
– the correct oil viscosity for the ambient air temperature is
selected according to diagram, see page 167.
Draining
1 Place the machine in service position, see page 95.
2 Lower the guard plates.
3 Remove the protective cap over the draining connection (A) on
the oil sump.
4 Connect the draining hose and drain the oil. The draining hose
is kept inside the front grill which can be lowered.
5 Remove the draining hose and put it back inside the front grill.
6 Reinstall the protective cap over the draining connection.
7 Change main oil filter and lubrication oil filter, see page 137.
Filling
8 Fill with new oil through the filler pipe (A).
9 Check the level.
10 Raise the guard plates.
Capacity when changing: approx. 41 litres including filters
For oil grade see page 167.
Take care of filters/oils/liquids in an environmentally safe way,
see page 97.
WARNING!
Take care when changing oil. Hot oil can cause burns on
unprotected skin.

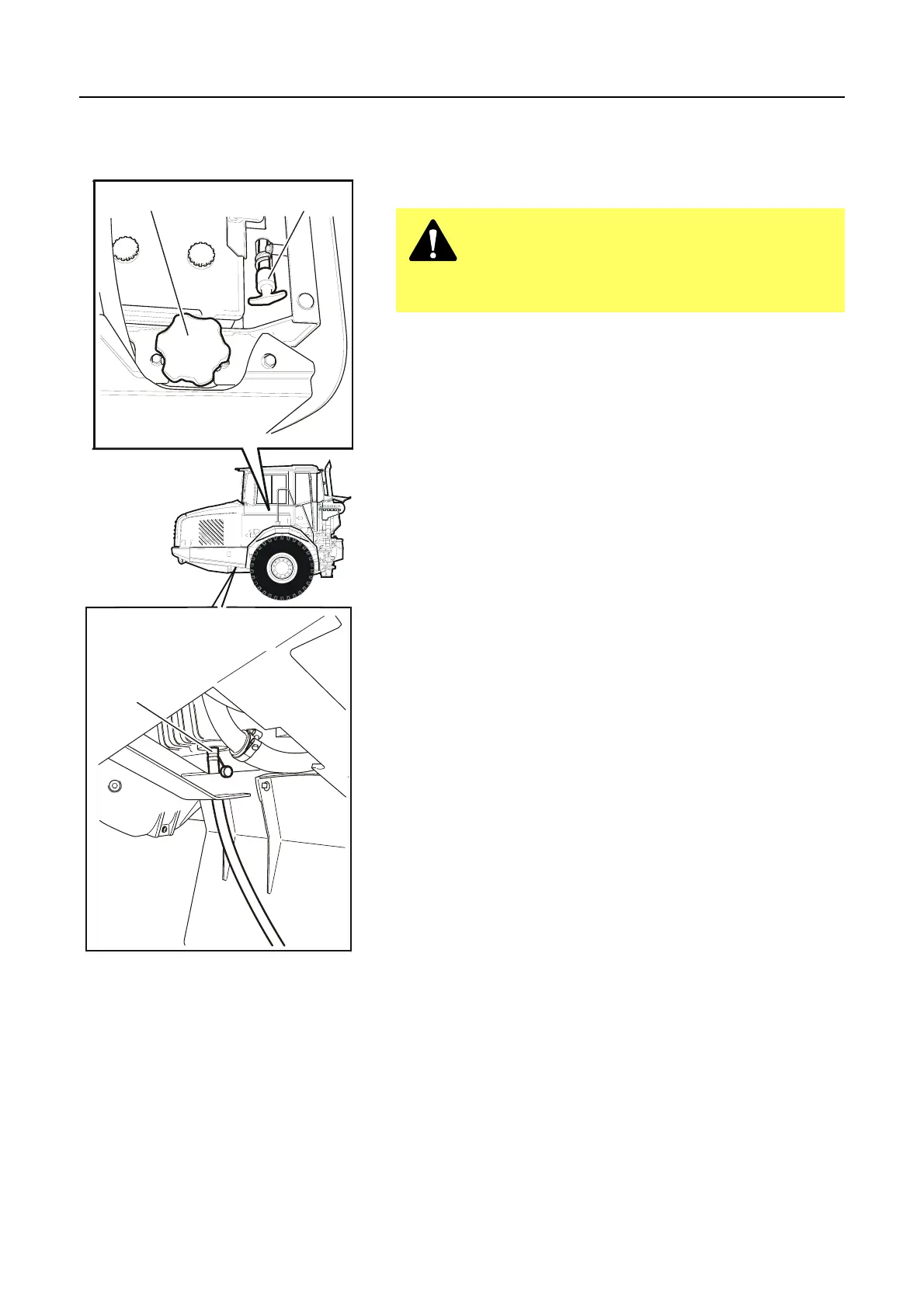

A Filler pipe
B Dipstick
C Drain point (through a hole in the cross
member under the transmission)
A
B
A
C
