Service and maintenance
Power transmission 141
Drive axles, checking oil level
1 Park the machine in service position and let it stand for 2 minutes.
2 Remove the combined level and filler plug (A).
The oil level should be up to the hole.
The hub reductions have a common oil space with the final drive
(differential carrier assembly), and the oil level shall only be
checked by the level and filler plug on the final drive.

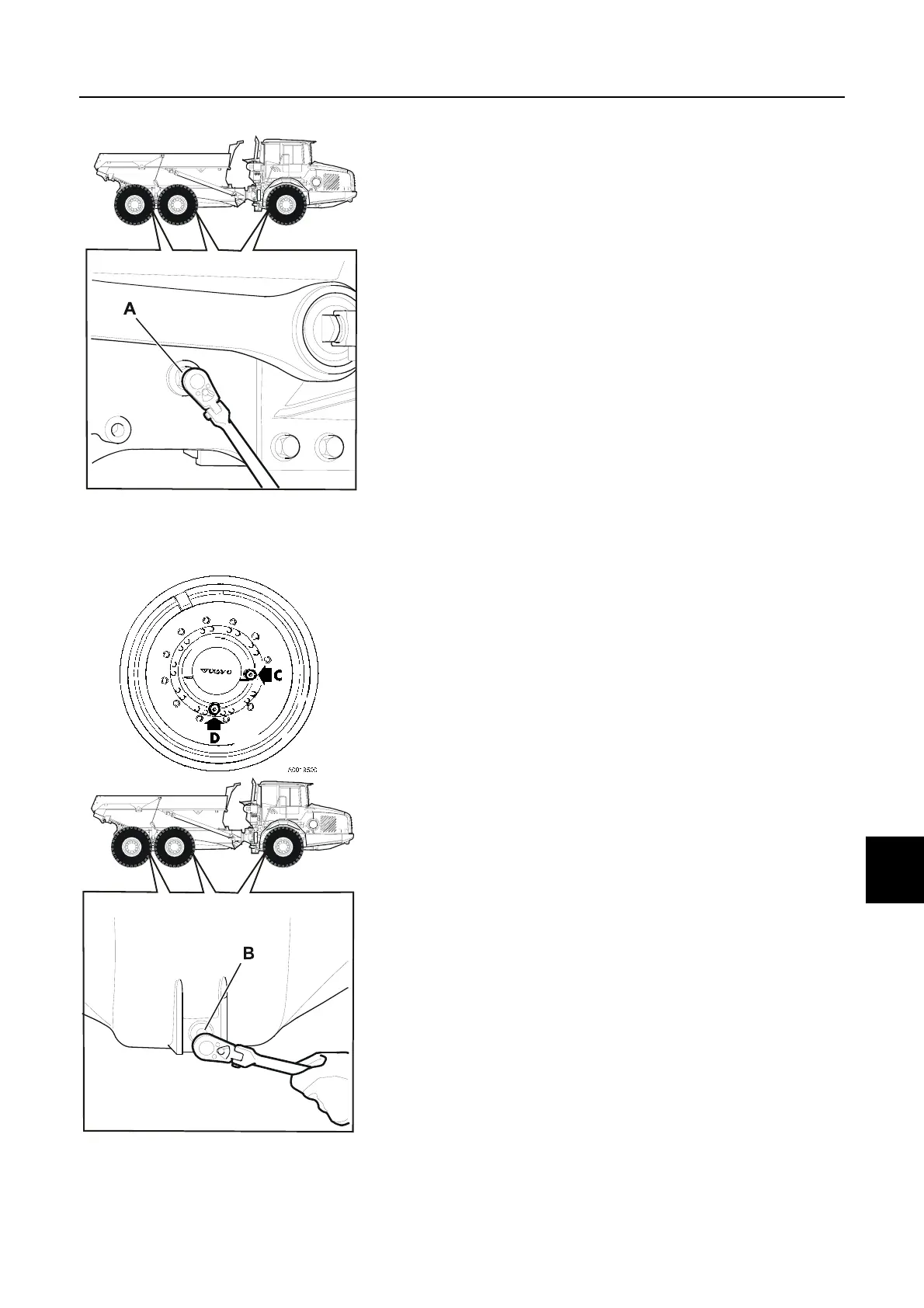

Level and filler plug (A)
Drive axle, tractor unit: right side, at the front
Front bogie axle: left side, at the back
Rear bogie axle: right side, at the back
Drive axles, changing oil
Change oil every 2000 hours. The first oil change must be
carried out at the 1000 hour warranty inspection.
1 Adjust the wheels so that the drain plug (D) ends up as shown
in the figure.
2 Drain the oil by removing the drain plug (B) from the axle
housing as well as the plug (D) from the hub reductions.
3 Reinstall plug (B) and (D).
4 Adjust the wheel so that the plug (D) ends up in position (C).
5 Fill new oil in the hub reductions (C) and then in the final drive
(differential carrier assembly) (A).
NOTE! Fill the hub reductions first when changing oil.
Oil volumes:
Drive axle, tractor unit: 33 litres (incl. hub reductions).
Front bogie axle: 34 litres (incl. hub reductions).
Rear bogie axle: 33 litres (incl. hub reductions).
Oil grade, see page 167.
Take care of filters/oils/liquids in an environmentally safe way,
see page 97.
1
7
A Level and filler plug
BDrain plug
C Level and filler plug (same as D)
DDrain plug
1
7
