Instrument panels

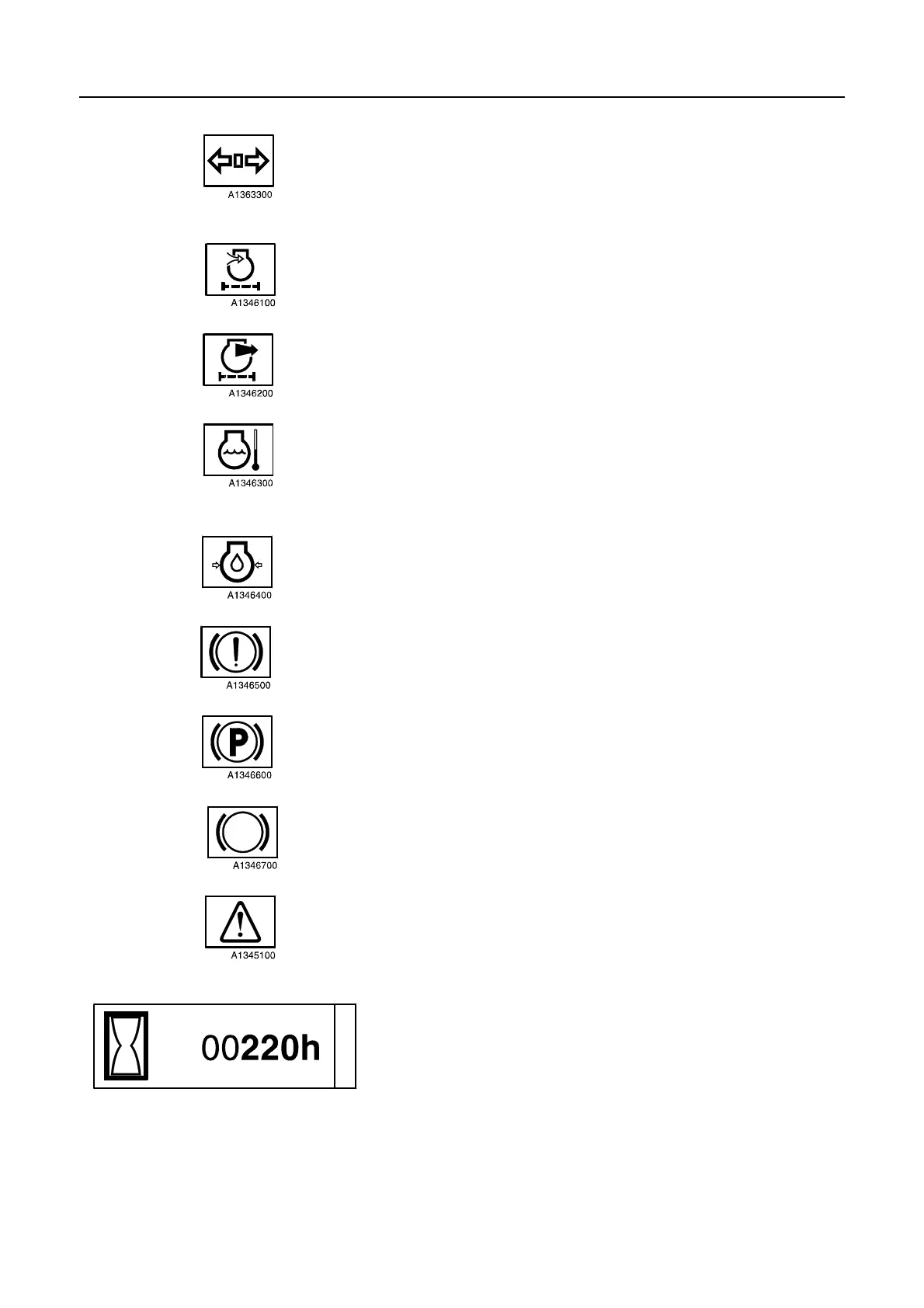

22 Centre instrument panel
11 Direction indicators, trailer unit
Flashes when the direction indicators have been activated.
Indicates that the trailer unit direction indicators are working.
12 Engine air filter clogged
Lights if the engine air filter is clogged – replace or clean the filter.
13 Exhaust emission control
Is not used.
14 Coolant temperature high
Lights if the engine's coolant temperature is too high.
15 Engine oil pressure low
Lights if the engine's oil pressure is too low.
16 Brake system oil pressure low
Lights if the hydraulic oil pressure in the brake system is too low.
17 Parking brake applied
Lights when the parking brake is applied.
18 Service brakes applied
Lights when the service brakes are applied.
19 Central warning, amber
Lights /flashes in case of the existence of abnormal condition.
Measures may have to be taken depending on the affected
function, investigate the cause at the next stop. See page 37.
20 Display unit
An LCD-display that shows many different displays (menus) for the
machine's condition and state. With the display unit and a keypad
on the left instrument panel, you can select the menu you want to
see, see page 29.
