Chapter 2 Wiring of V 810
15

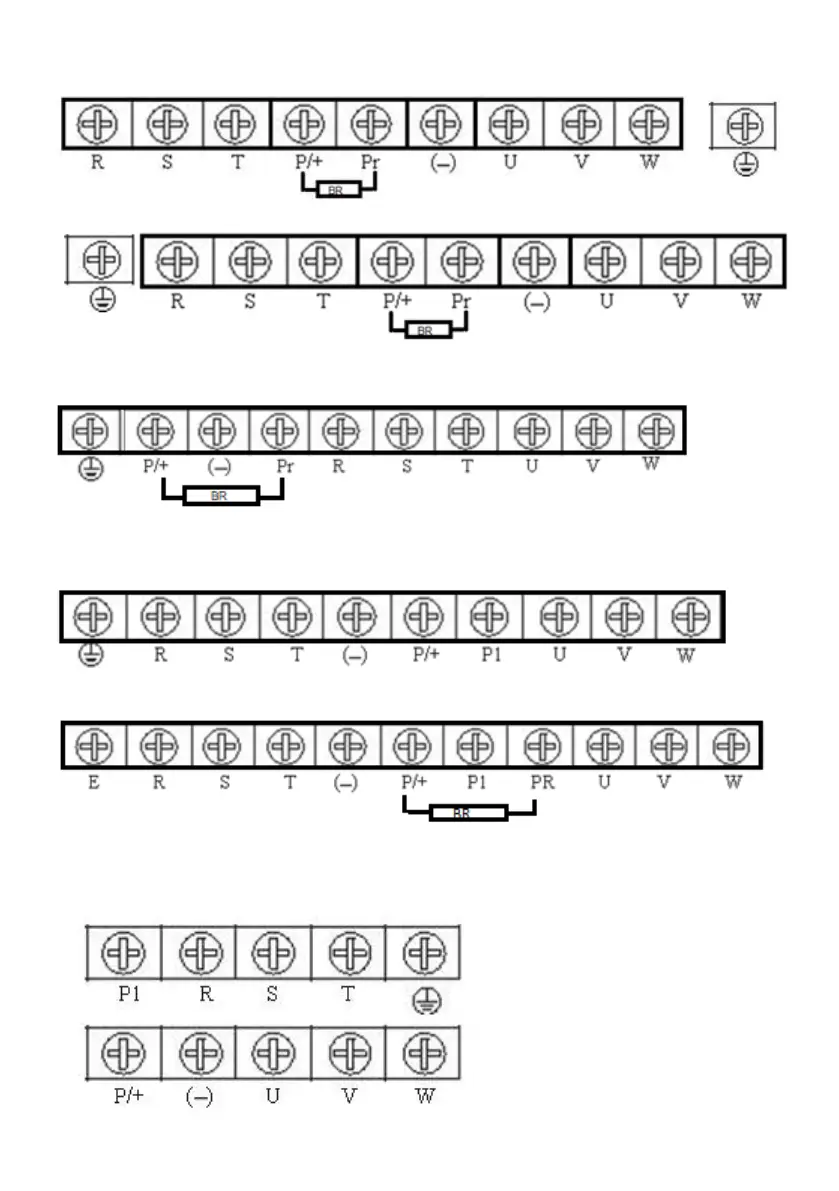

a./ Main terminal block for types powered by 3 x 400 V (690 V), 0.75 to 4 kW with BR
b./ Main terminal block for types powered by 3 x 400 V (690 V), 5.5 to 7.5 kW with BR
c./ Main terminal block for types powered by 3 x 400 V (690 V), 11 to 15kW with BR.
d./ Main terminal block for types powered by 3 x 400 V (690 V), 18.5 to 110kW without BR
e./ Main terminal block for types powered by 3 x 400 V (690 V),18.5 to 30 kW with BR
f./ Main terminal block for types powered by 3 x 400 V (690 V), 132 to 315kW
