Chapter 3: Operation
32
nameplate because automatic adjustment detects stator resistance, rotor resistance and
mutual inductance. If the mutual inductance of the motor and no-load current will not be
able to measure, the user can input the corresponding values according to the motor
nameplates.
3.5 Running converter and PTC protection settings
- Power-on initialization
When the drive is turned on, the system initializes first. When initialization is complete,
the drive is in standby mode.
- Stand-by mode of inverter
Various status parameters can be displayed when the drive is stopped or running. By
Function Code P7.03 (operating parameters), P7.05 (stop parameter), various definitions
can refer to P7.03 and P7.05 function code.
- Adaptive motor parameters setting
Please refer to the detailed description of P2.37 the function code.
- Inverter operation
In the operating state, you can select how a total of sixteen operating parameters are to
be displayed: operating frequency, set frequency, bus voltage, output voltage, output
current, operating speed, output power, output torque, PID setting, analog input PID, FIV
voltage, analogue input voltage FIC, number of multi-speed segments, required torque.
The bit code selection of function F7.06 (binary converter) can decide what is or should
not be displayed. What to display is decided by selecting bit P7.03 and P7.04. Press the
ENTER button to switch the display order of the selected parameters, press the ENTER +
JOG button to scroll through the parameters in the left order.
- Failure reports
The V810 inverter series offers a variety of fault information. Please read Chapter 5 on
V810 inverter errors and troubleshooting them.

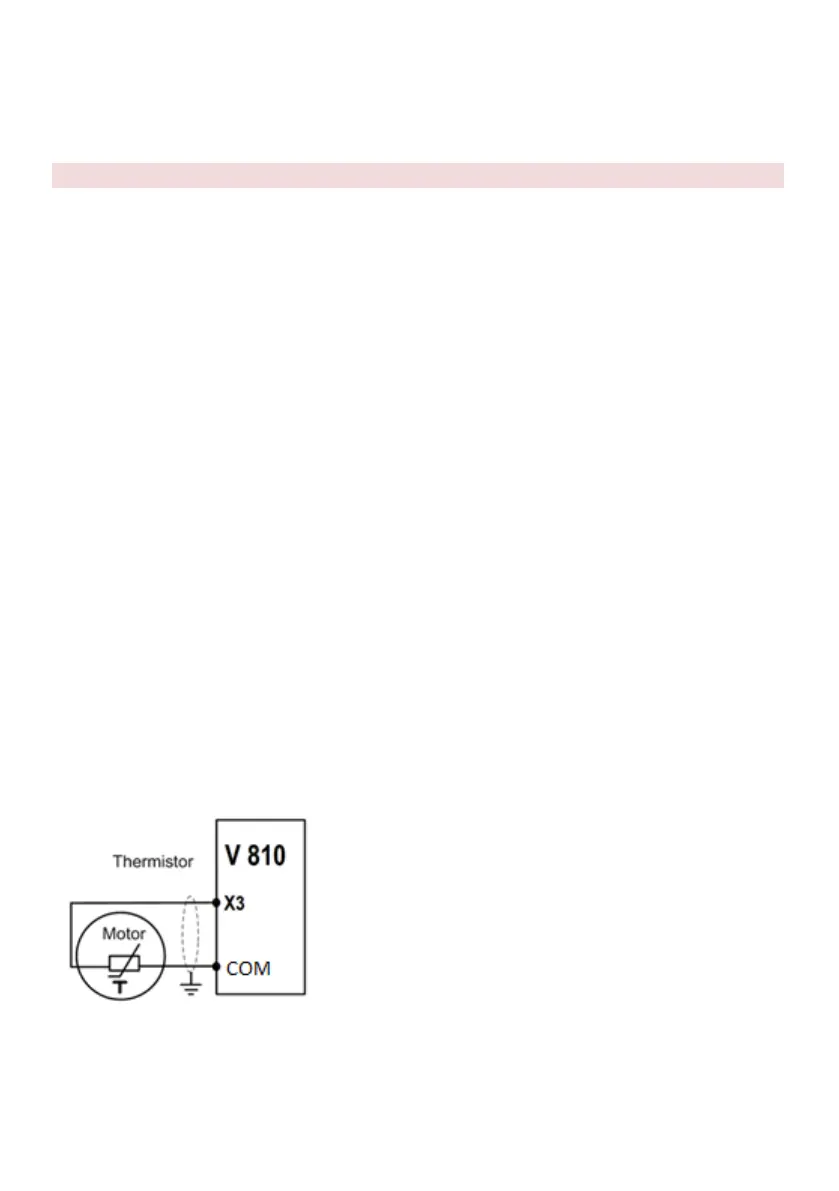

- Setting the PTC motor protection
Connect the PTC thermistor or TK thermal contact of the electric motor according to the
picture:
The parameter setting is as follows: P5.02 = 33
