Operation
6.26 Engine Control Module (ECM) Diagnostics
56
Operator’s Manual | RTLx-SC3 | 5100061327 | 09/2022 | [en-US]
Code State Description
2 Pre-glow During this state, the glow sensor determines the glow time and power is applied to
the glow plugs. This cycle starts immediately after the control box power switch is
placed in the ON position.
3 Prestart Post pre-glow state. The ECM is waiting for the starting cycle.
4 Start Power is being applied to starter.
5 Post glow Five second post glow after engine start.
6 Run Standard running mode.
7 Fault All functions stopped. Waiting repeat of power up cycle.
Faults that produce engine shut down:
• Low oil pressure
• Over temperature
• Tip over
• Over voltage
6.26.2 ECM Monitoring of Solenoids

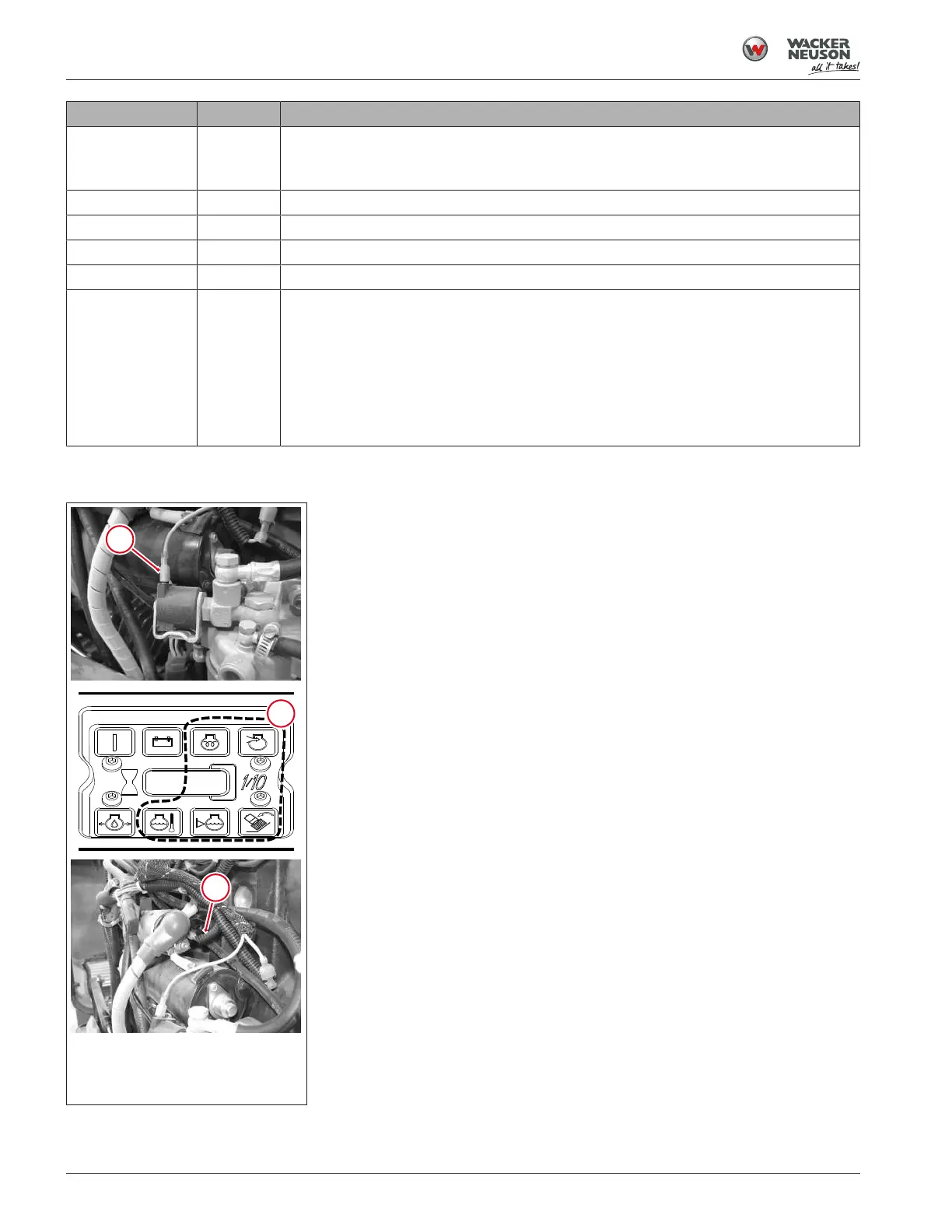

Fig.23: Fuel solenoid wire, control
panel indicators, and starter solenoid
wire
The ECM monitors the wiring to, and condition of, the fuel solenoid and the
wiring to, and condition of, the starter solenoid.
If the wire (1) to the fuel solenoid is disconnected or the fuel solenoid is
faulty, the following results occur.
• The control panel indicators (2) will flash immediately after the transmit-
ter is turned on.
• The red LEDs of the light ring will illuminate solid red.
• The engine will not crank.
Reconnect the wire or replace the fuel solenoid to enable the machine to
start.
If the wire (3) to the starter solenoid is disconnected or the starter solenoid is
faulty, the following results occur.
• The control panel indicators will flash immediately after the starter push-
button is pressed.
• The red LEDs of the light ring will illuminate solid red.
• The engine will not crank.
Reconnect the wire or replace the starter solenoid to enable the machine to
start.
