Operation
6.26 Engine Control Module (ECM) Diagnostics
60
Operator’s Manual | RTLx-SC3 | 5100061327 | 09/2022 | [en-US]
Code Description Code Description
E13 Open RX power relay E37 High RX power relay coil current
E14 Open LED ring output E38 High LED ring output current
E15 Low battery E39 Open
6.26.7 Resetting the ECM Diagnostic Data and the Tip-over Light

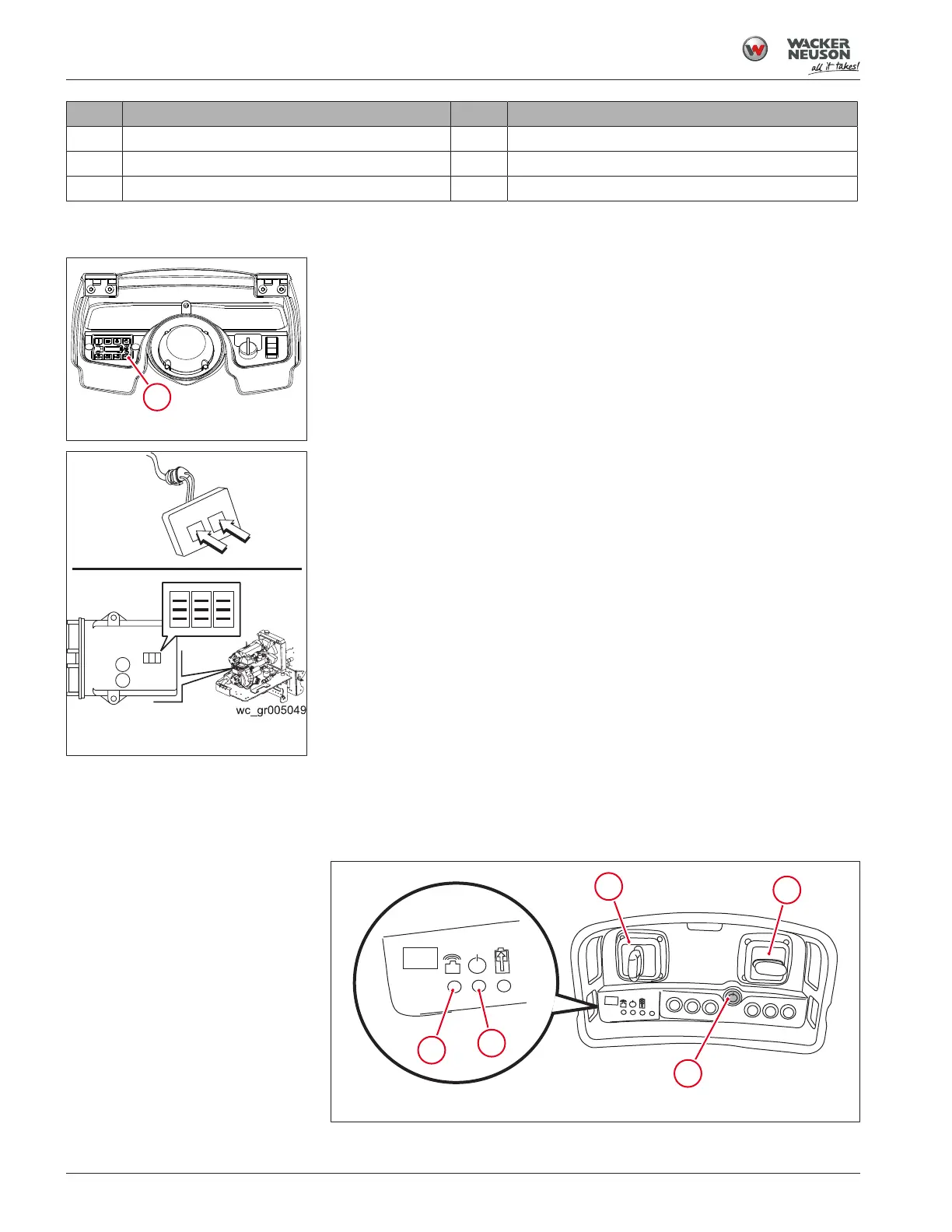

Fig.27: Tip-over light
To reset the ECM diagnostic data and turn off the tip-over light(1):
1. Connect the diagnostic tool. For further information, see Connecting
the Diagnostic Tool on page 57.
2. Enter the diagnostic mode of the ECM. For further information, see En-
tering the ECM Diagnostic Mode on page 58.
Note: Before proceeding, it is important to realize all stored data will be
erased.
Fig.28: Diagnostic tool and ECM
display
3. While in the diagnostic mode, press and hold both buttons of the diag-
nostic tool for approximately five seconds and observe the ECM LED
displays.
ð The ECM LED displays will change to nine dashes once the ECM
has been reset.
6.26.8 Calibrating the Joysticks
To determine if calibration is needed, press and release the red ON-OFF
pushbutton (1).
Fig.29: Calibrating the joysticks
