Operating manual Manual system SPRINT 2
6 Assembly and commissioning
Order number 2467031 | Edition 04/2024 29

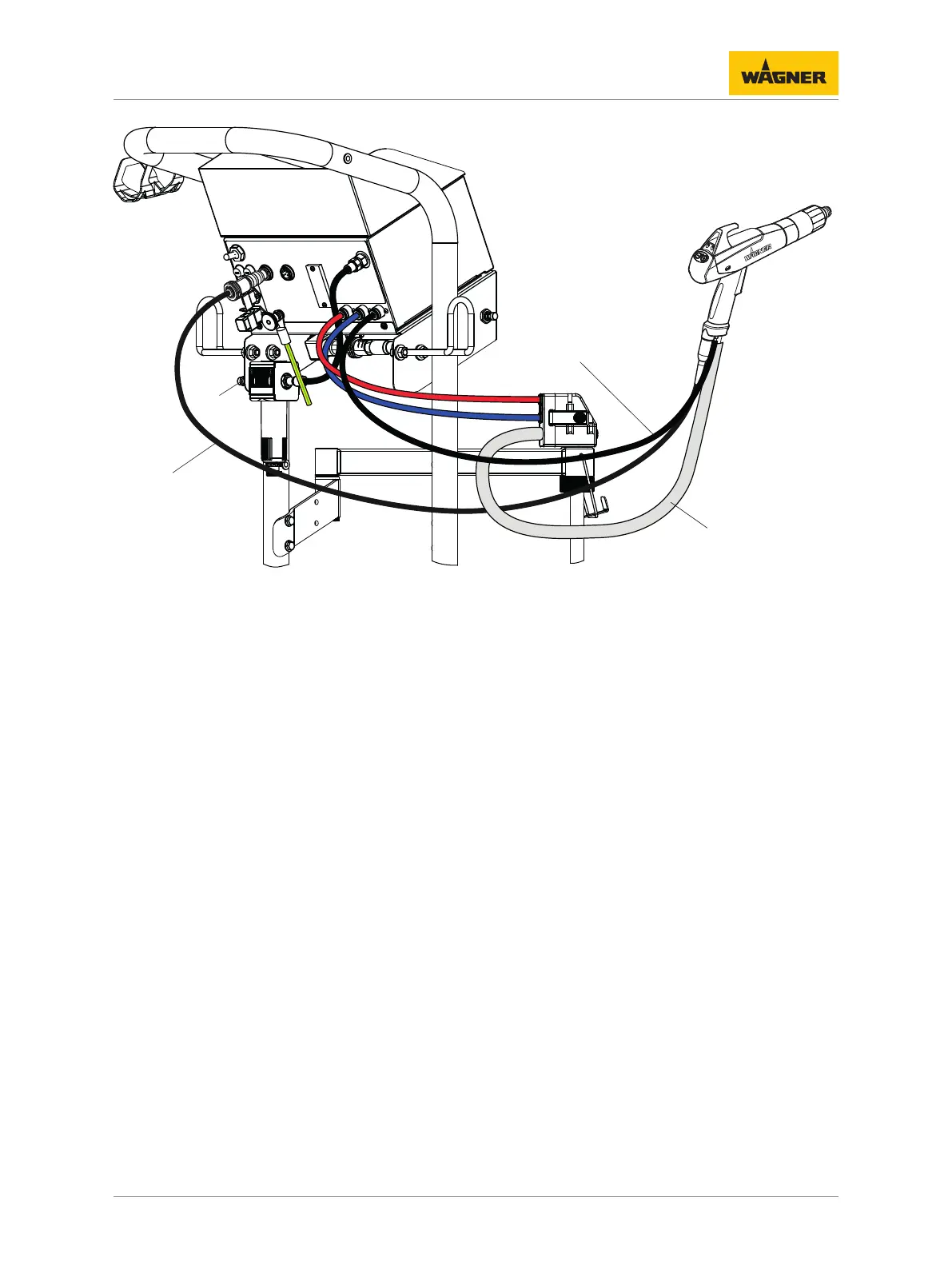

15. Connect manual gun cable (24) to control unit.
16. Connect the atomizing air hose (25) to the control unit.
17. Connect powder hose (26) to the injector.
Bundle the two hoses and the gun cable with Velcro cable binders.
18. Connect compressed air from the compressed air network of the company to the
connection of the manual system (27).
19. Connect the mains cable to the control unit and plug it into the socket.
