Operating manual Manual system SPRINT 2
6 Assembly and commissioning
30 Order number 2467031 | Edition 04/2024

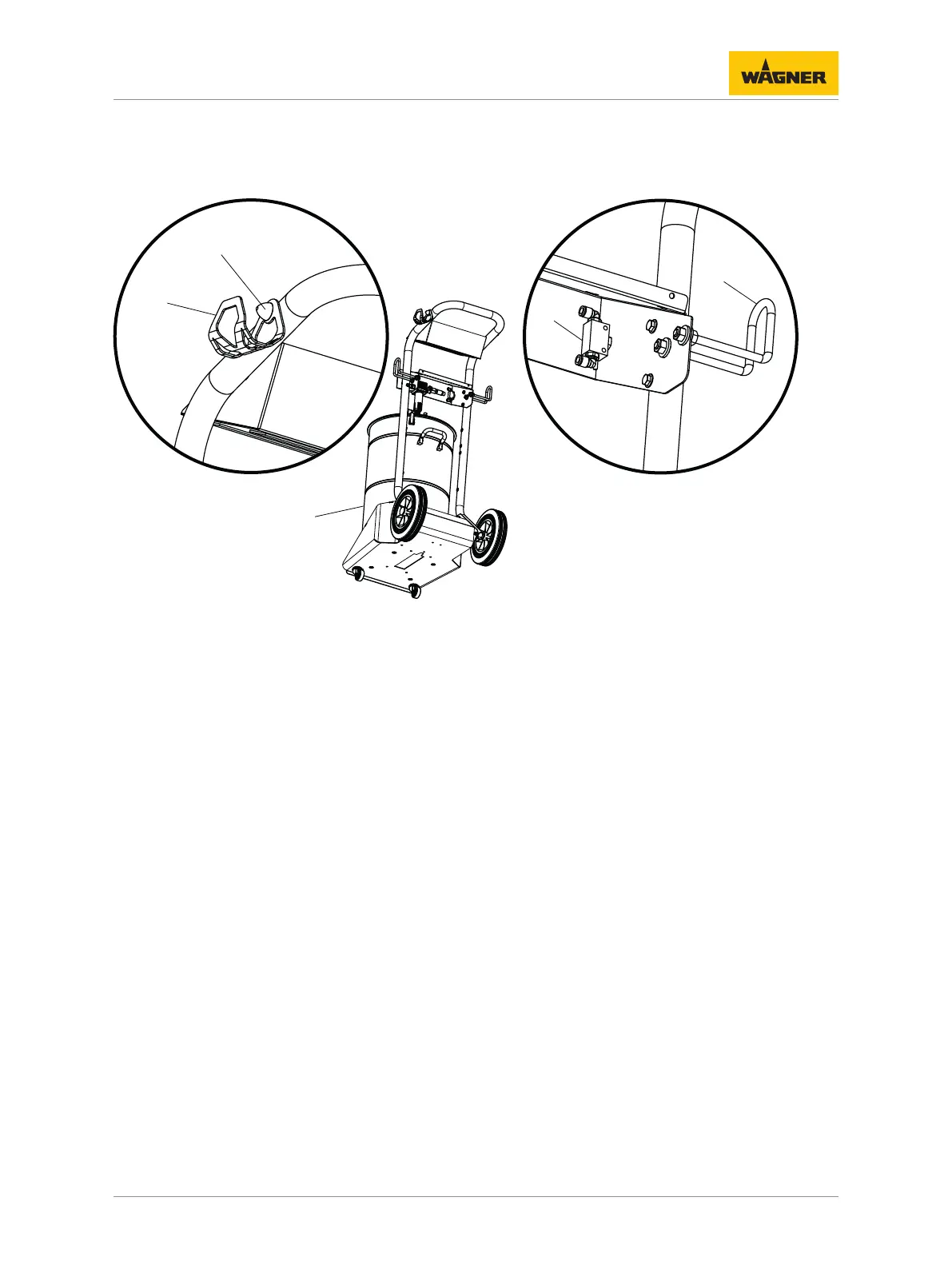

6.4.2.3 Connecting the Sprint 2 H manual system
A
7
9
B
A
B
8
10
P_06028
11
1. Screw on gun holder (7) with threaded rubber buffer (8) (Detail A).
2. Fasten the hose holder (9) to the left and right of the mobile base with four M8 nuts
each (Detail B).
3. Insert the throttle valve (10) for the fluid air and tighten the nut (Detail B).
4. Place the tank (11) on the mobile base.
