6 Assembly and commissioning
Order number 2467031 | Edition 04/2024 31
P_06029
12
B
A
A
14
B
13

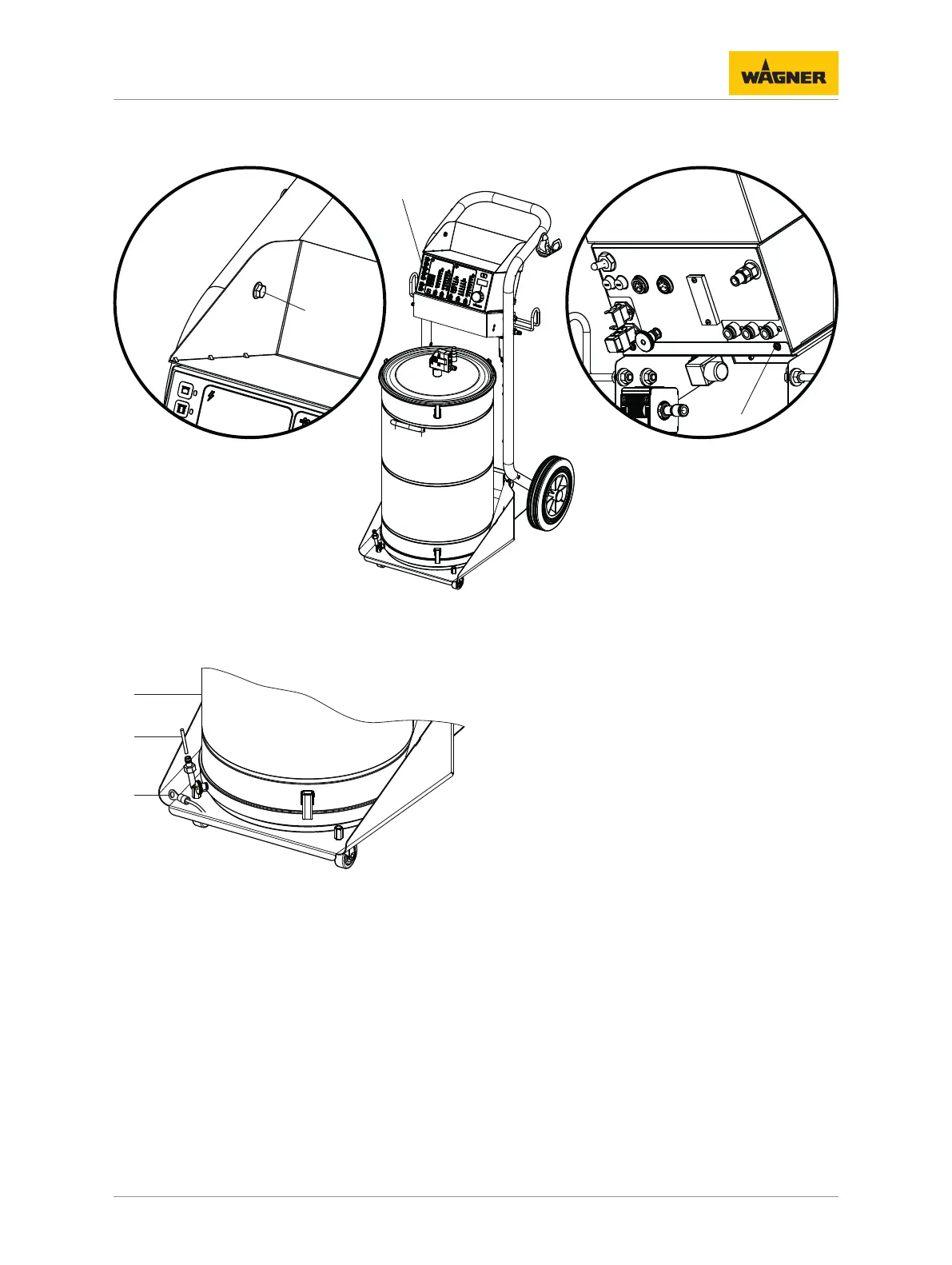

5. Slide the control unit (12) into the mobile base from the front and screw it onto the
holder using the fastening screws (13) (Detail B).
6. Tighten the hexagon screws (14) of the storage tray (Detail A).
11
15
16
P_06040
7. Connect the fluid air hose (15) to the throttle on the control unit and to the tank (11).
8. Connect the grounding cable (16) to the tank (11) and to the grounding connection of
the control unit.
