Operating manual Manual system SPRINT 2
6 Assembly and commissioning
Order number 2467031 | Edition 04/2024 33

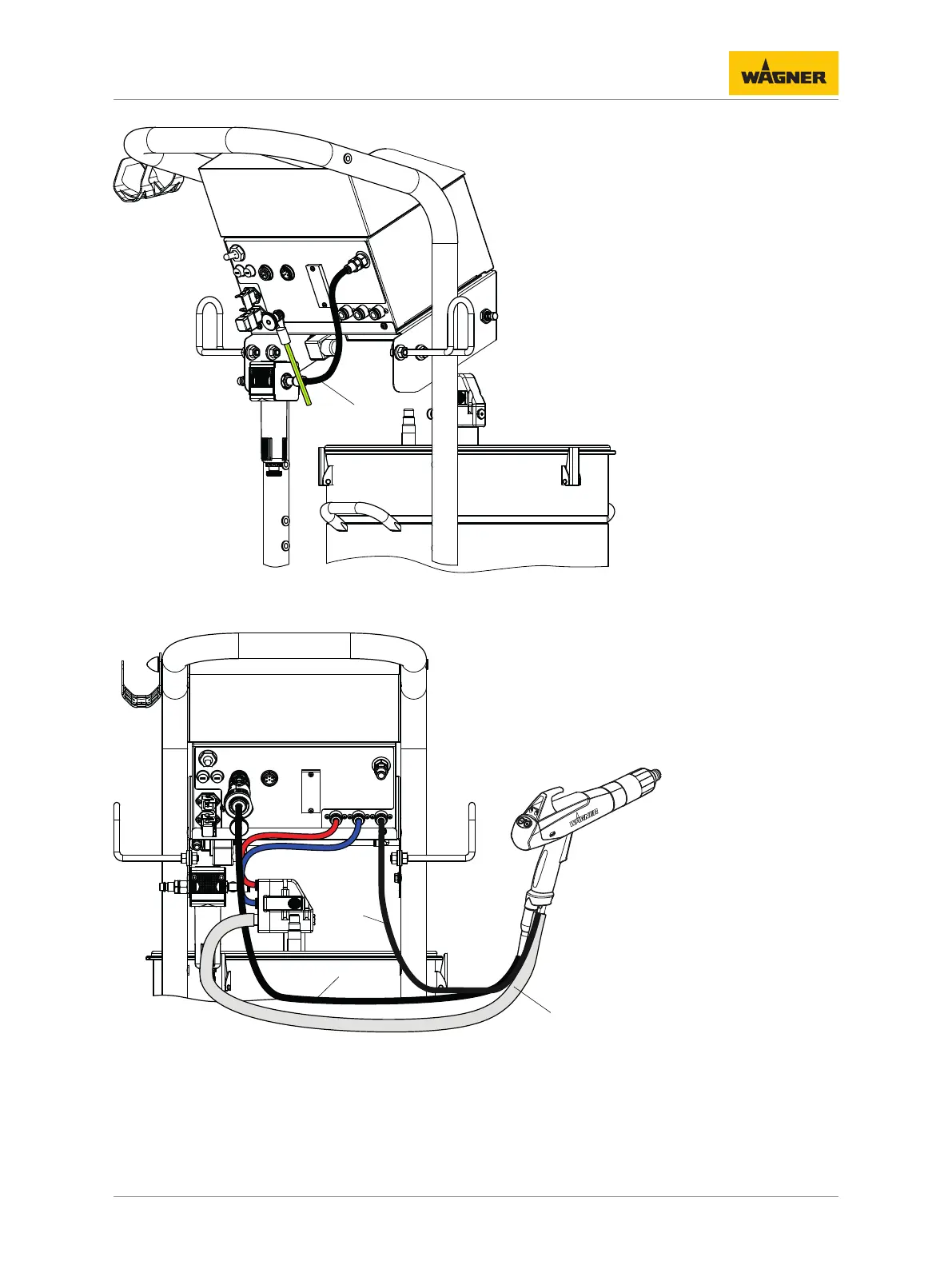

12. Guide the compressed air line (20) from the filter separator to the control unit and
connect it.
13. Connect the atomizing air hose (21) to the control unit.
14. Connect the powder hose (22) to the injector.
15. Connect manual gun cable (23) to the control unit.
Bundle the two hoses and the gun cable with Velcro cable binders.
16. Connect exhaust air hose to the connection on the powder tank. The other end of the
exhaust air hose must be routed to the extraction unit of the powder spray booth!
