WAGO I/O System 750 Series User Manual

The WAGO-I/O-SYSTEM 750 • 17
Component Update
WAGO-I/O-SYSTEM 750
DeviceNet
Hansastr. 27
D-32423 Minden
ITEM-NO.:750-333
PROFIBUS DP 12 MBd /DPV1
0V
Power Supply
Electronic
PATENTS PENDING
II3GD
DEMKO 02 ATEX132273 X
EEx nA II T4
24V DC
AWG 28-14
55°C max ambient
LISTED 22ZA AND 22XM
72072
0103000203-B000000
Hansastr. 27
D-32423 Minden
ITEM-NO.:750-333
PROFIBUS DP 12 MBd /DPV1
0V
Power Supply
Electronic
PATENTS PENDING
II3GD
DEMKO 02 ATEX132273 X
EEx nA II T4
24V DC
AWG 28-14
55°C max ambient
LISTED 22ZA AND 22XM
72072
0103000203-B060606
1
0
3
0
0
0
2
0
0
3
DS
NO
SW
HW
GL
FWL
Power Supply
Field
24 V
+
-
-B060606
PROFIBUS
WAGO - I/O - SYSTEM
750-333
01030002
03-B
060606
72072
Manufacturing Number
Calendar
week
Year Software
version
Hardware
version
Firmware Loader
version
Internal
Number

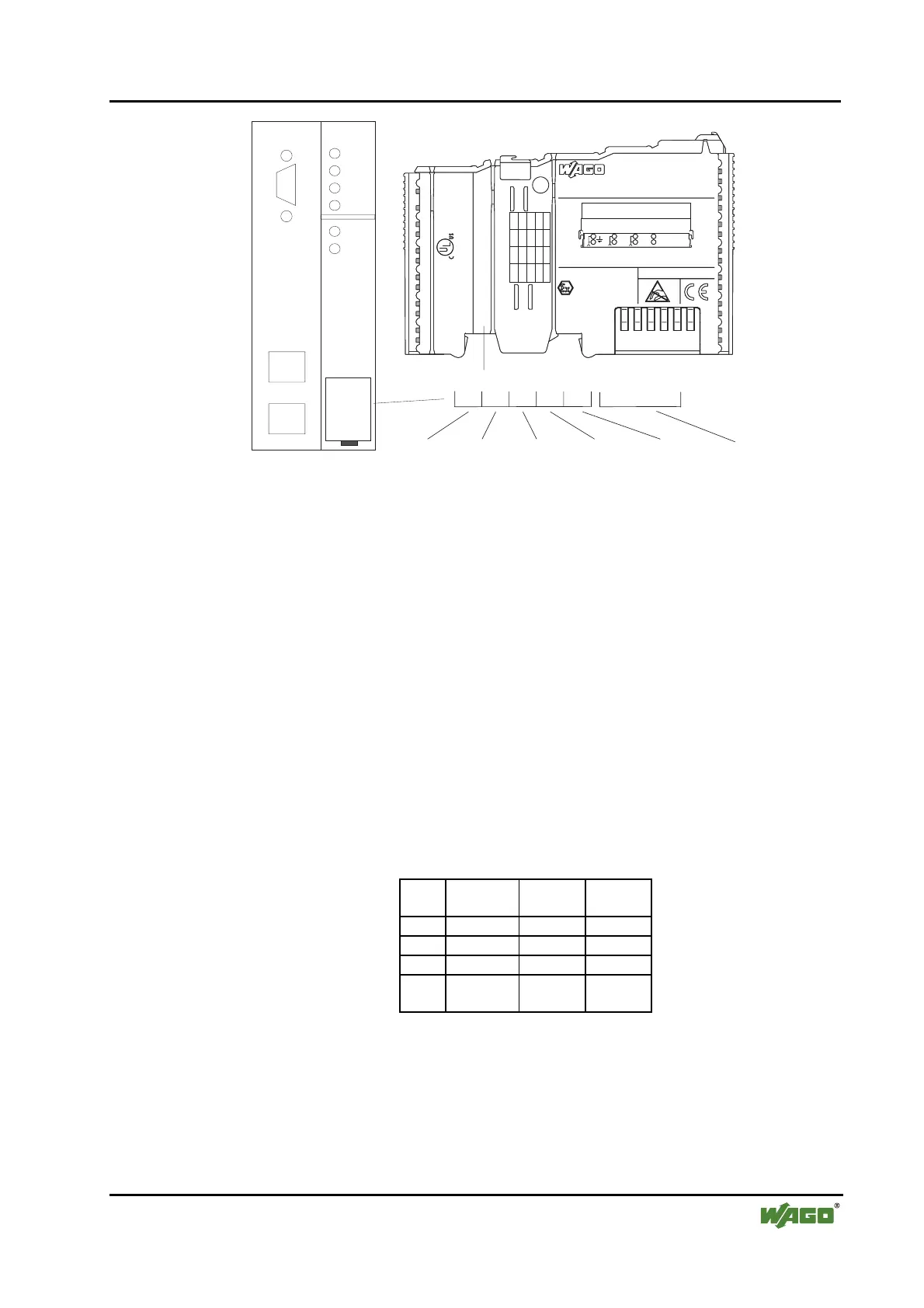

Fig. 2-3: Example: Manufacturing Number of a PROFIBUS fieldbus coupler 750-333
G01xx15e
The manufacturing number consists of the production week and year, the
software version (if available), the hardware version of the component, the
firmware loader (if available) and further internal information for
WAGO Kontakttechnik GmbH.
2.4 Component Update
For the case of an Update of one component, the lateral marking on each com-
ponent contains a prepared matrix.
This matrix makes columns available for altogether three updates to the entry
of the current update data, like production order number (NO; starting from
calendar week 13/2004), update date (DS), software version (SW), hardware
version (HW) and the firmware loader version (FWL, if available).
Update Matrix
Current Version data for: 1. Update 2. Update 3. Update
Production Order
Number
NO
<- Only starting from Calen-
dar week 13/2004
Datestamp
DS
Software index
SW
Hardware index
HW
Firmware loader
index
FWL
<- Only for coupler/controller
If the update of a component took place, the current version data are registered
into the columns of the matrix.
Additionally with the update of a ECO fieldbus coupler also the cover of the
configuration interface of the coupler is printed on with the current manufac-
turing and production order number.
The original manufacturing data on the housing of the component remain
thereby.
