Fieldbus Coupler • 55
Fieldbus Coupler 750-346
WAGO-I/O-SYSTEM 750
DeviceNet
4. DIP switches 7 and 8 are used to set the desired baud rate.
Baud rate DIP7 DIP8
125 kBaud
*)
OFF OFF
250 kBaud ON OFF
500 kBaud OFF ON
not allowed ON ON
ON
12
345
ON
67
8
8
7
6
5
4
3
2
1
g012551x

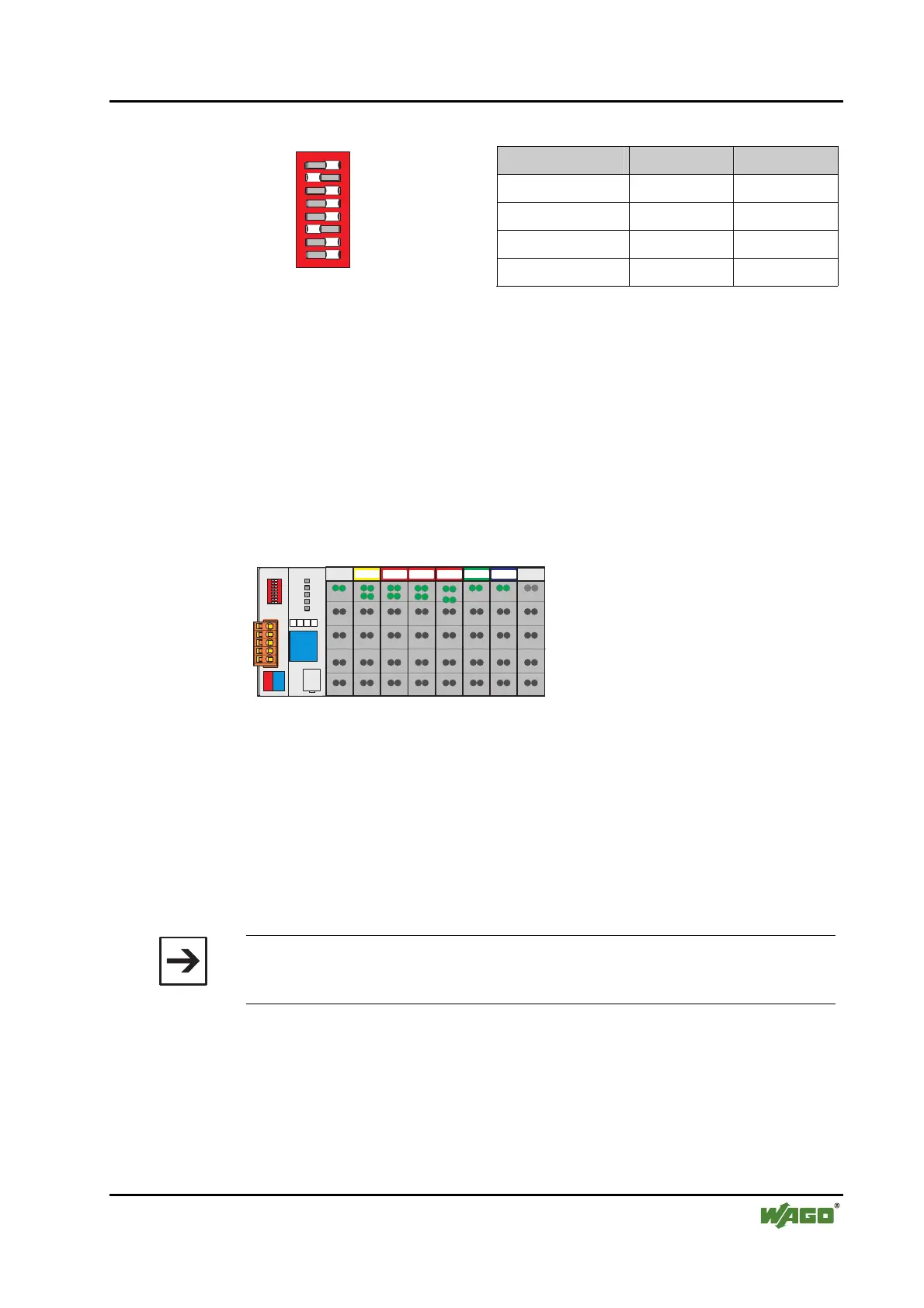

Fig. 3-11: Example: Setting the baud
rate 250 kBaud (DIP 7 = ON) of the
station with MAC ID 1.
*)
Presetting
5. Then switch on the coupler supply voltage.
3.1.7.3 Configuration with Static Assembly
In this example, the software WAGO NETCON is used for the configuration.
The node in the example consists of the following I/O modules:
1234 5 67
DI DI
DODO
402 516
516
516 467
550 600
DODO
DODO
AI AI
AO AO
1
2
3
4
5
6
7
8
ON
Fig. 3.1.7-12 Example Fieldbus node g012554x
1. Starting Software and EDS file load
6. Start the configuration software WAGO NETCON.
7. Load an EDS file for the fieldbus coupler in WAGO NETCON, i. e. "750-
346.EDS".
For this click on "File/ Copy EDS" and choose the EDS-file to load.
Note
You can download the EDS files for the fieldbus coupler from the Internet
under: www.wago.com.
8. Upon downloading the EDS file into WAGO NETCON, you can create a new
project and start configuring your network.
