44 • Fieldbus Coupler
Fieldbus Coupler 750-346
WAGO-I/O-SYSTEM 750
DeviceNet
3.1.2 Hardware
3.1.2.1 View
750-346
OVERFL
RUN
BUS OFF
DEVICENET
CONNECT
I/O
12345678
ON
01
02
03
04
NS
MS
DIP switch
for MAC ID
and baud rate
Fieldbus
connection
Series 231
(MCS)
Supply
24 V
0V
Status indication
-Fieldbus
-Fieldbus node
Data contacts
Marking area
Configuration
interface

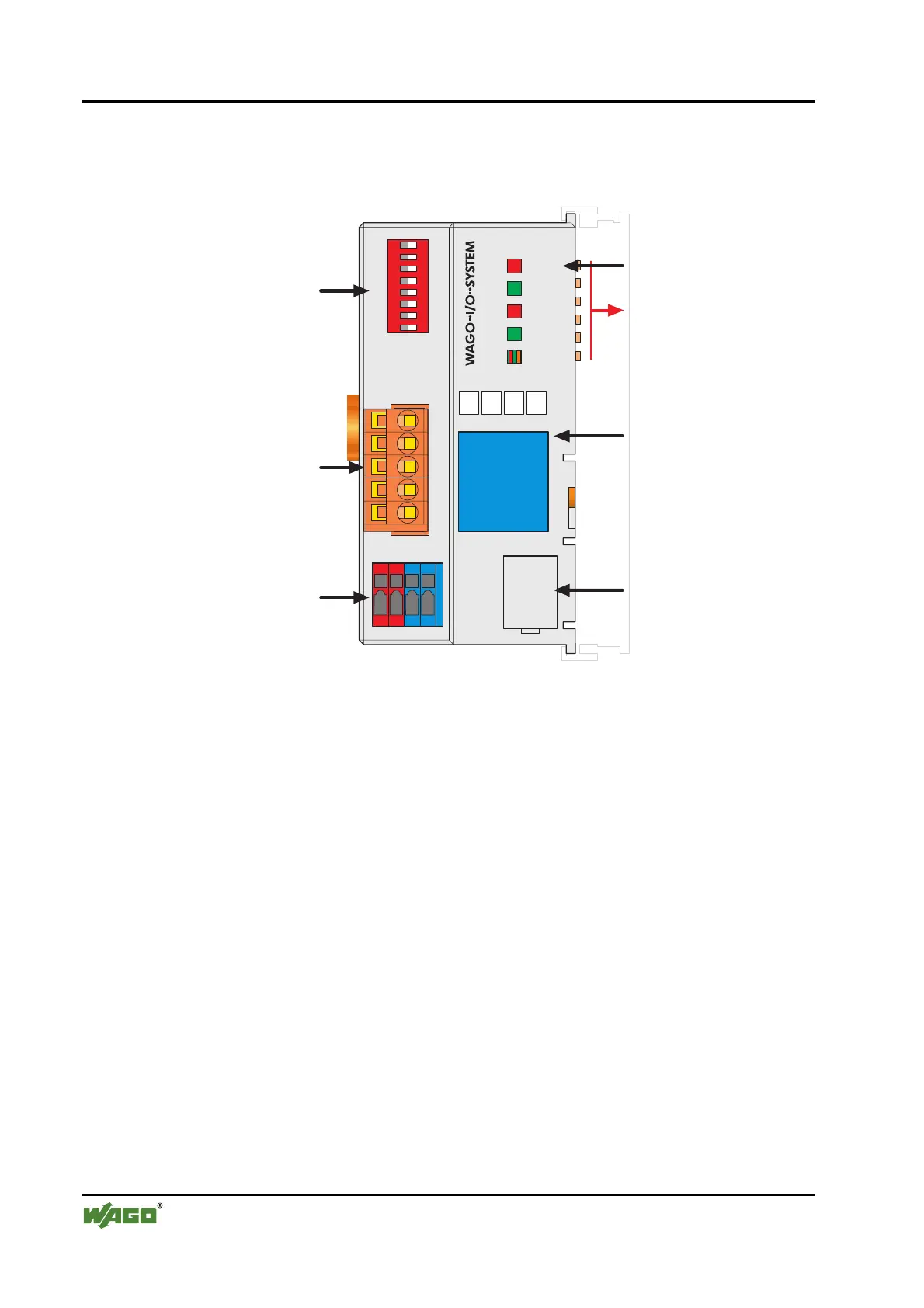

Fig. 3-1: ECO fieldbus coupler 750-346 DeviceNet g034600e
The fieldbus coupler comprises of:
• Supply module with internal system supply module for the system supply
• Fieldbus interface with the bus connection
• Display elements (LED's) for status display of the operation, the bus com-
munication, the operating voltages as well as for fault messages and diag-
nosics
• Configuration interface
• Electronics for communication with the I/O modules (internal bus) and the
fieldbus interface
