Power Supply Pro 2
3Properties
3.1 Introduction
The 2787 Series WAGO Power Supplies Pro 2 are compact switched-mode
Power supplies with a wide range of uses. The Power supplies can be fitted on a DIN-rail.
The Power supplies can be configured directly via buttons on the product or via the inte-
grated communication interface. For this purpose, the connection is established either via
the WAGO USB Communication Cable or via an attached communication module. It is
also possible to record and evaluate various output parameters via the WAGO Interface
Configuration software, which is available separately.
The pluggable connection technology uses WAGO pluggable connectors. These allow
pre-wiring for quicker installation, as well as quicker and easier product replacement.
LEDs indicate various diagnostic messages (see section Indicators).
3.2 View
a
f
g
e
b
h
i
j
k
a
l
c
d

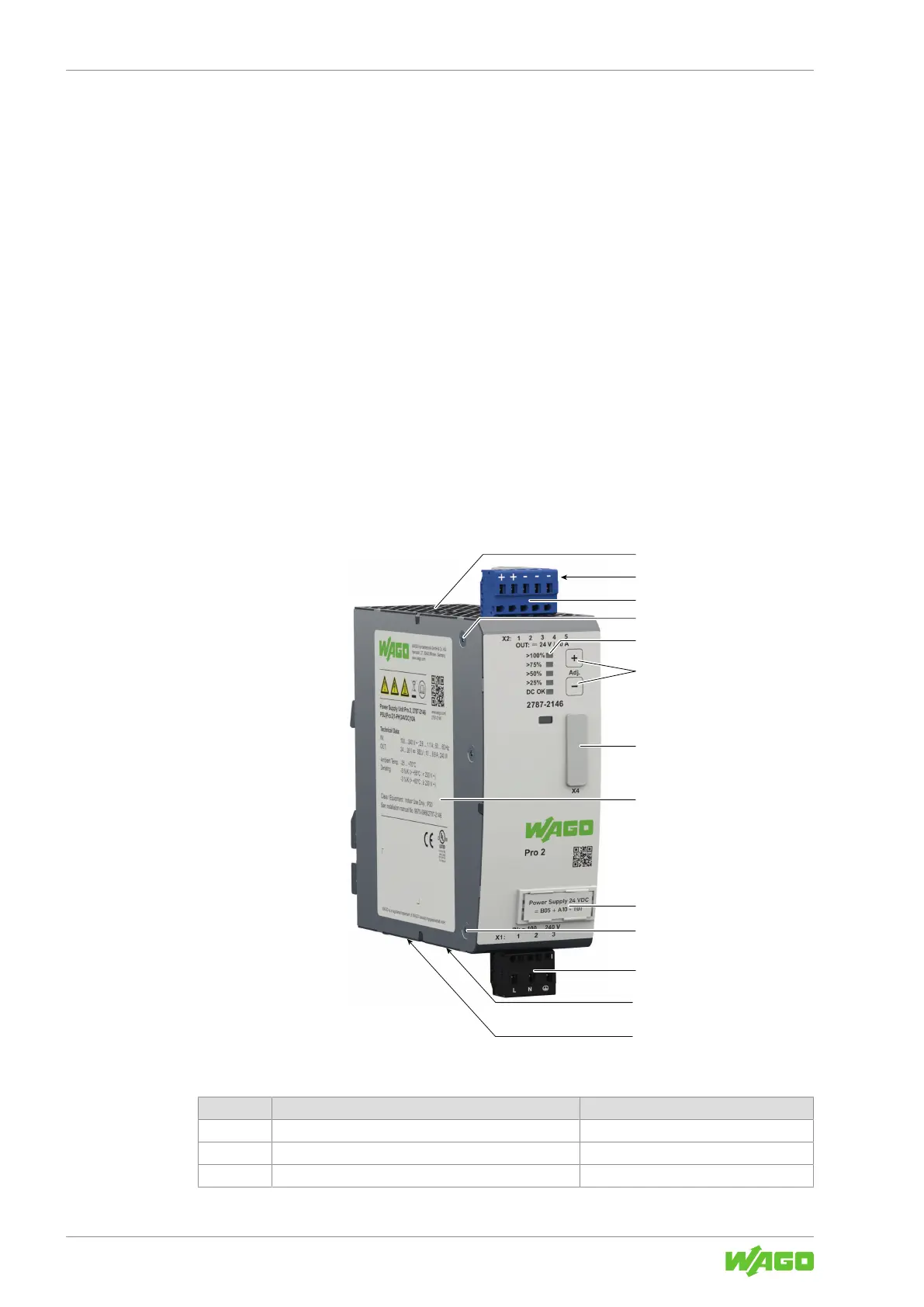

Figure1: View
Table3: Legend for Figure “View”
Position Comment For Details, See Section
a Ventilation openings –
b Signal (X3)
8Signal [}16]
c Output (X2) Ausgang
