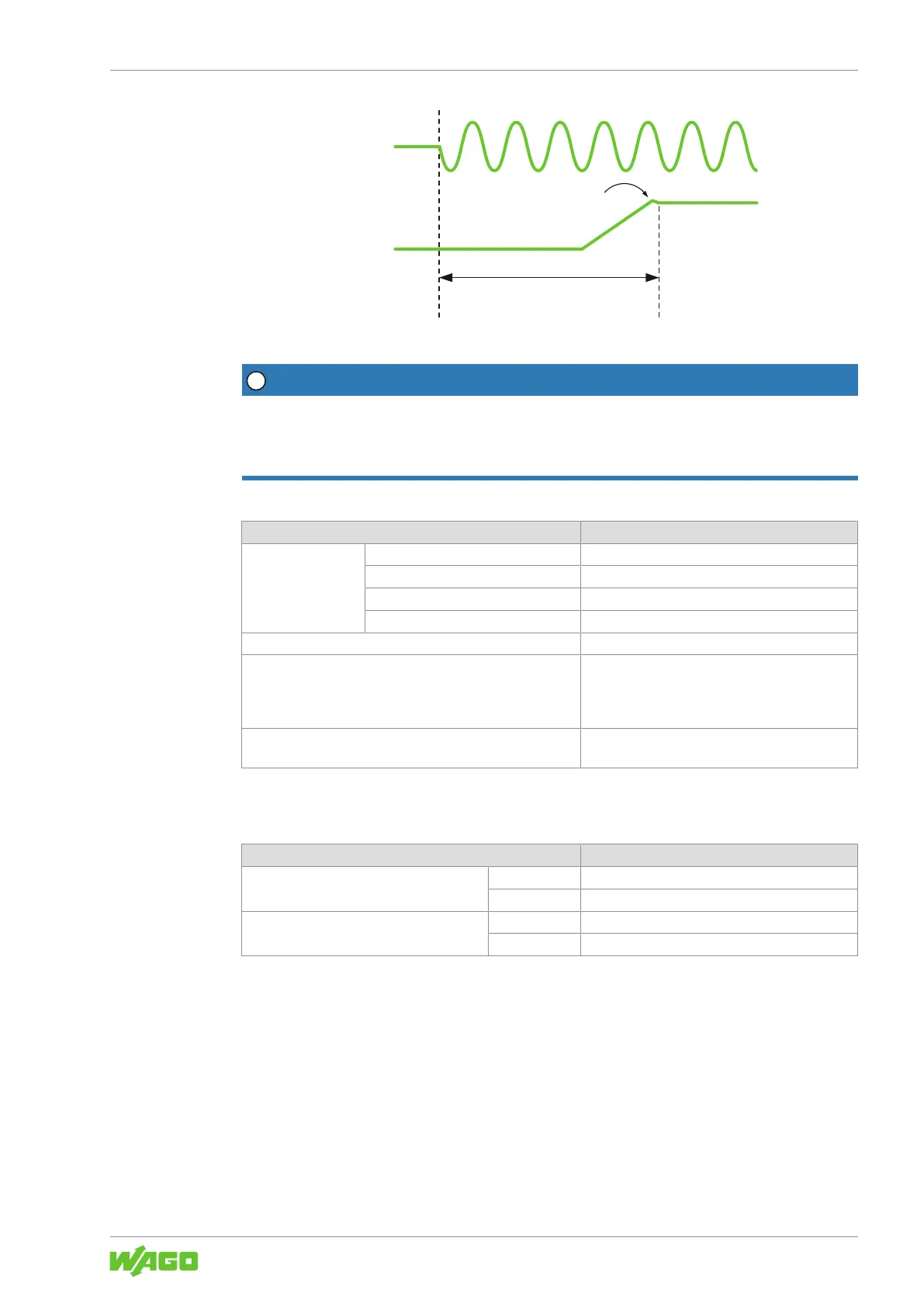

WAGO Pro 2 - Table 21 Technical Data - Output Connection; Table 22 Technical Data - Efficiency;Power Loss; Efficiency;Power Loss

2787-2146 (/0000-00x0) Properties
Product manual | Version: 1.2.2 21
Power Supply Pro 2
Overshoot
Turn on Time
Input
Voltage
Output
Voltage
Figure10: Turn-on Time
!
NOTICE
Select conductor cross-sections according to current load!
In the event of a fault, the output current of a power supply can be up to 1.5×I
OUT
. Only
use conductor cross-sections sufficient for the current load!
Table21: Technical Data – Output Connection
Property Value
Cross-section Solid 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded 0.08 … 2.5 mm² / 28 … 12 AWG
Insulated ferrule with plastic collar 0.25 … 1.5 mm² / 20 … 16 AWG
Ferrule without plastic collar 0.25 … 2.5 mm² / 20 … 14 AWG
Strip length 8 … 9mm / 0.31 … 0.35inch
Specifications of the conductors used ≥ +75°C / +167°F (ambient air temperature: ≤
+60°C / 140°F)
≥ +90°C / 194°F (ambient air temperature: >
+60°C / 140°F)
Required tools (conductor termination) Operating tool, with a partially insulated shaft,
type 2 (see section 8Accessories [}72])
3.9.4 Efficiency/Power Loss
Table22: Technical Data – Efficiency/Power Loss
Property Value
Efficiency, typ.
1)
110VAC 93.5 %
230VAC 95.2 %
Power loss, typ.
1)
110VAC 16.4 W
230VAC 12.0 W
1)
At nominal load
