WAGO Pro 2 - Input; Output; Table 7 Legend for Figure Input X1 Connection; Table 8 Details - Input Connection

2787-2146 (/0000-00x0) Properties
Product manual | Version: 1.2.2 15
Power Supply Pro 2
3.5.2 Input
1
2 3
4

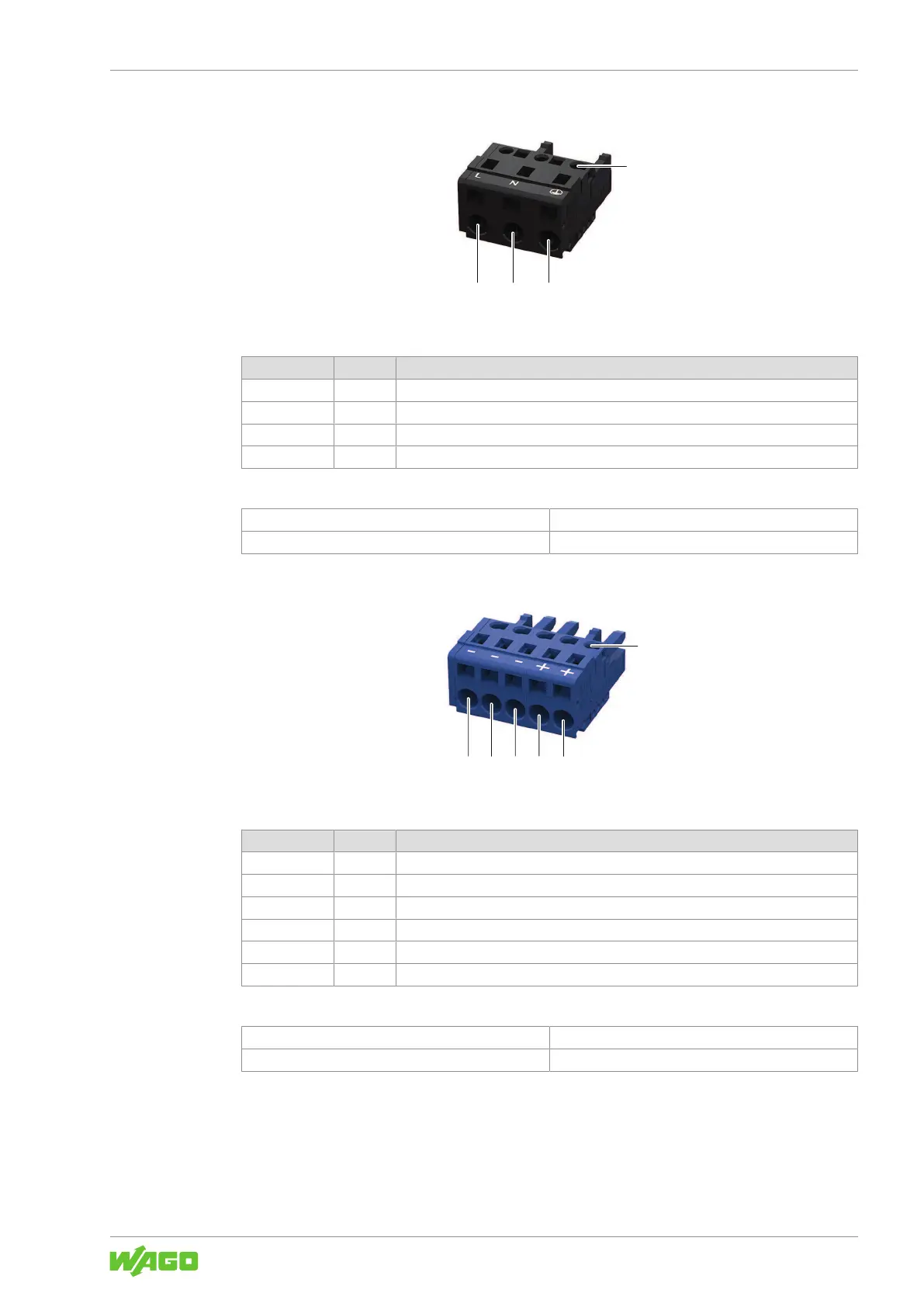

Figure4: Input X1 Connection
Table7: Legend for Figure “Input X1 Connection”
Position Pin Description
1 1 Contact “L” for input voltage
2 2 Contact “N” for input voltage
3 3 Contact “PE” for input voltage
4 - Test slot
Table8: Details – Input Connection
Series
721 Series (see section 8Accessories [}73])
Connection Technology CAGE CLAMP
®
3.5.3 Output
1 2 3 4 5
6
Figure5: Output X2 Connection
Table9: Legend for Figure “Output X2 Connection”
Position Pin Description
1 1 Contact “–” for output voltage
2 2 Contact “–” for output voltage
3 3 Contact “–” for output voltage
4 4 Contact “+” for output voltage
5 5 Contact “+” for output voltage
6 - Test slot
Table10: Details – Output Connection
Series
721 Series (see section 8Accessories [}73])
Connection Technology CAGE CLAMP
®
