WAGO Pro 2 - Type Label; Table 4 Legend for Figure Type Label

2787-2146 (/0000-00x0) Properties
Product manual | Version: 1.2.2 13
Power Supply Pro 2
Position Comment For Details, See Section
d Screw for overvoltage protection (output)
8Overvoltage protection [}29]
e Optical status indication
8Indicators [}16]
f Buttons
8Control Elements [}17]
g Communication interface
8Communication interface [}17]
h Type label Type label
i Marker carrier
8Marker carrier [}72]
j Screw for overvoltage protection (input)
8Overvoltage protection [}29]
k Input (X1) Input
l Latch for mounting to/removal from DIN rail –
3.3 Type label
The type label for the product is attached to the side of the housing. It contains the follow-
ing information:
See installation manual No. 9970-0966/2787-2146
Power Supply Pro 2, 2787-2146
SMPS| | -PH|24VDC| 0APro 2 1 1
IN:
OUT:
Ambient Temp.:
Derating:
www.wago.com/
2787-2146
Class I Equipment Indoor Use Only; ; IP20
Technical Data:
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27, 32423 Minden, Germany
www.wago.com
WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH.
IND. CONT. EQ.
3VR3
100 ... 240 V ~ ; 2.6 ... 1.1 A ; 50 ... 60 Hz
-2 + °C5 ... 70
24 ... 28 V SELV ; 10 ... 8.6 A ; 240 W
-3 %/K (> +55°C ; < 230 V ~)
-3 %/K (> +60°C ; 230 V ~)
≥
1
2
3
4
5
6
7
8
9
11
10

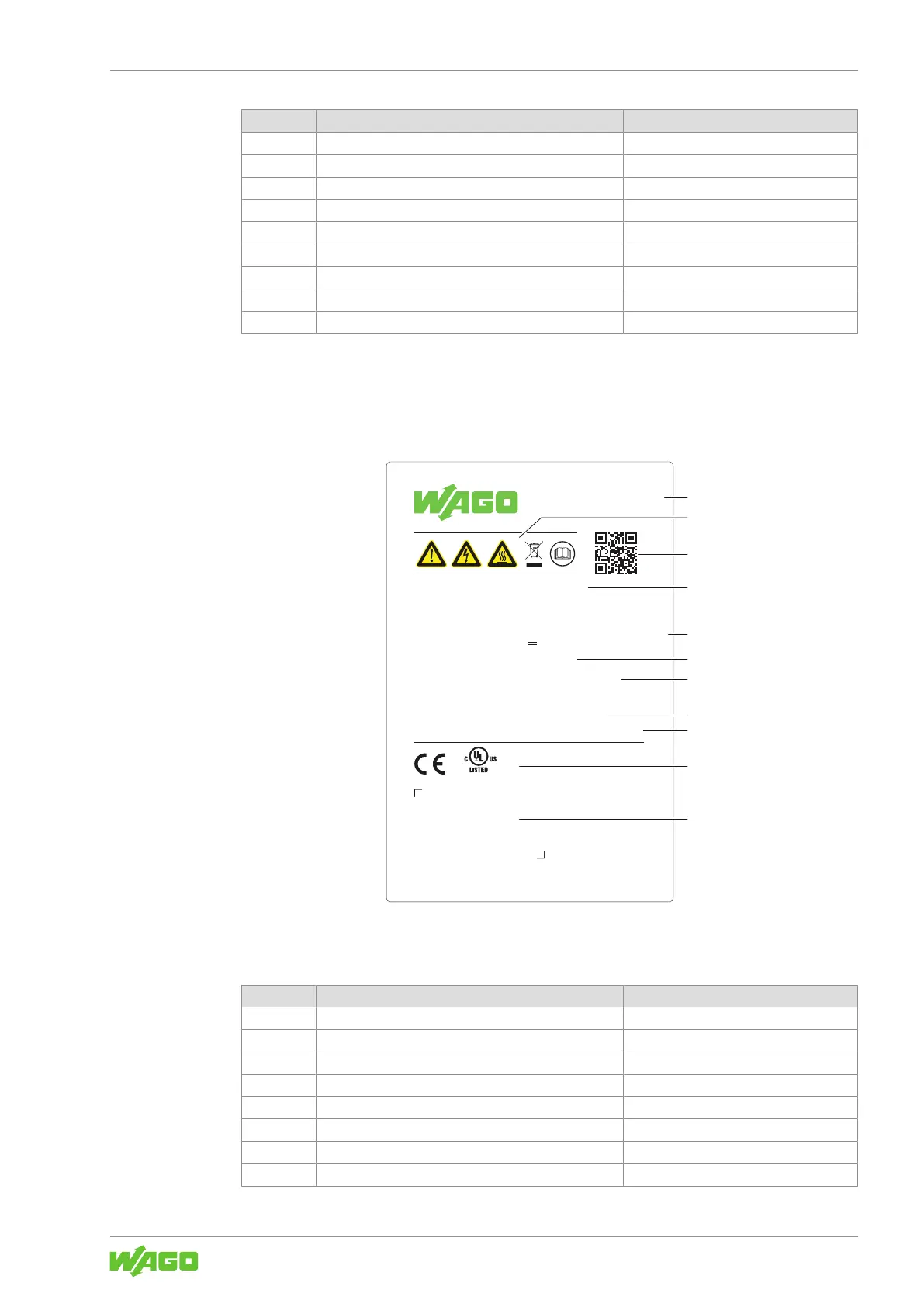

Figure2: Type label
Table4: Legend for Figure “Type label”
Position Comment For Details, See Section
1 Company logo and address –
2 Warning notice symbols
8Safety [}10]
3 QR link with link to website –
4 Product name and order number –
5 Input and output data
8Technical data [}18]
6 Surrounding air temperature Environment requirements
7 Derating information Derating
8 Additional technical data
8Technical data [}18]
