WAGO Pro 2 - Signal; Table 23 Technical Data - Signal (Input DI); Table 24 Technical Data - Signal (Output DO)

2787-2146 (/0000-00x0)Properties
22 Product manual | Version: 1.2.2
Power Supply Pro 2
84
85
86
87
88
89
90
91
92
93
94
95
96
0 1 2 3 4 5 6 7 8 9 10
Efficiency [%]
I
OUT
[A]

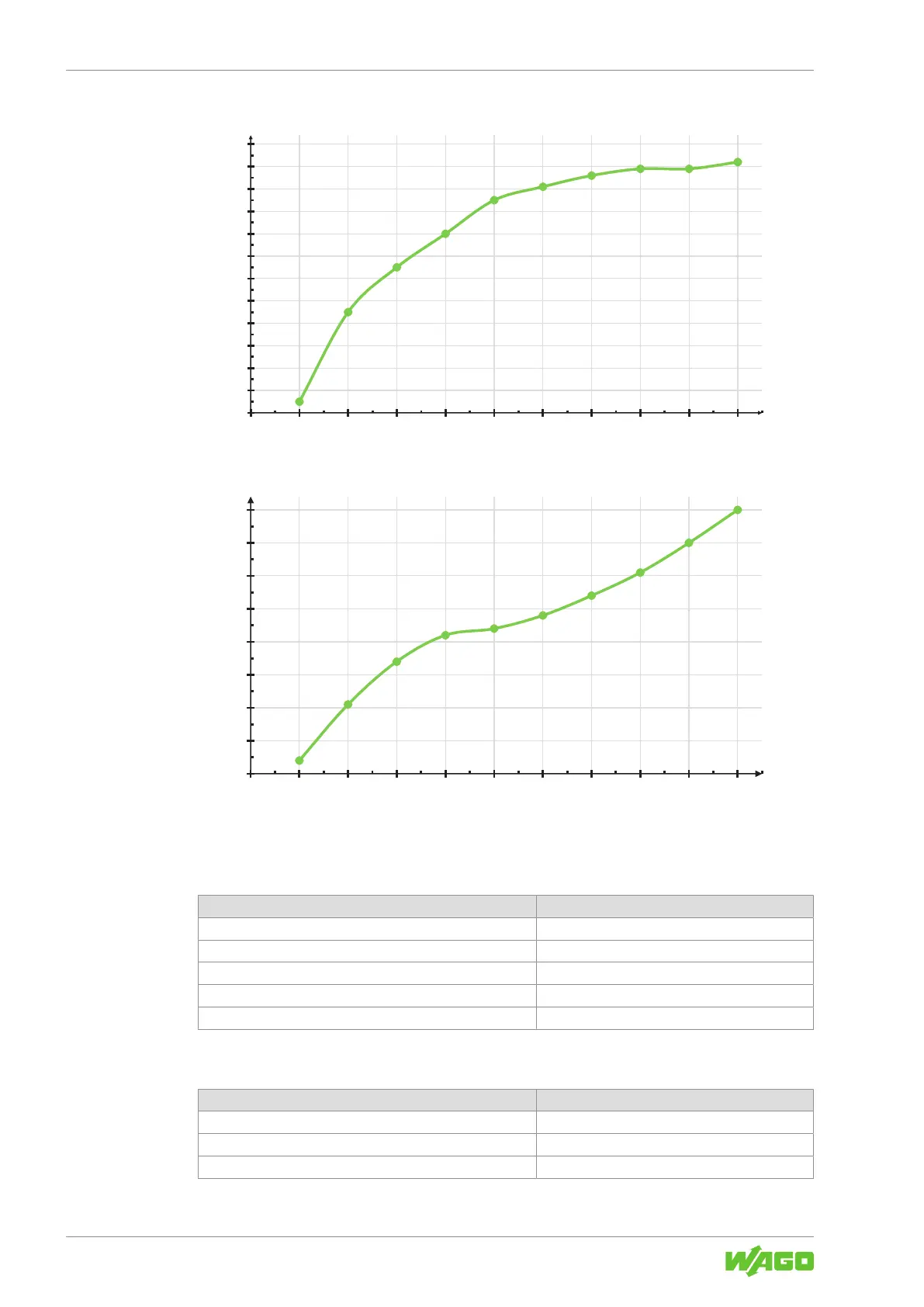

Figure11: Efficiency (typ.) at 230VAC
4
5
6
7
8
9
10
11
12
0 1 2 3 4 5 6 7 8 9 10
Power loss [W]
I
OUT
[A]
Figure12: Power loss (typ.) at 230VAC
3.9.5 Signal
Table23: Technical Data – Signal (Input DI)
Property Value
Signal type 24VDC
Voltage range for signal (0) −3 … +5VDC
Voltage range for signal (1) 15 … 30VDC
Input current for signal (1)
1)
4.5 mA
Isolation voltage See section Safety
1)
at 24VDC
Table24: Technical Data – Signal (Output DO)
Property Value
Switch-on threshold, typ. UOUT > USET × 0.93
Switch-off threshold, typ. UOUT < USET × 0.87
Contact load, max. 50mA
