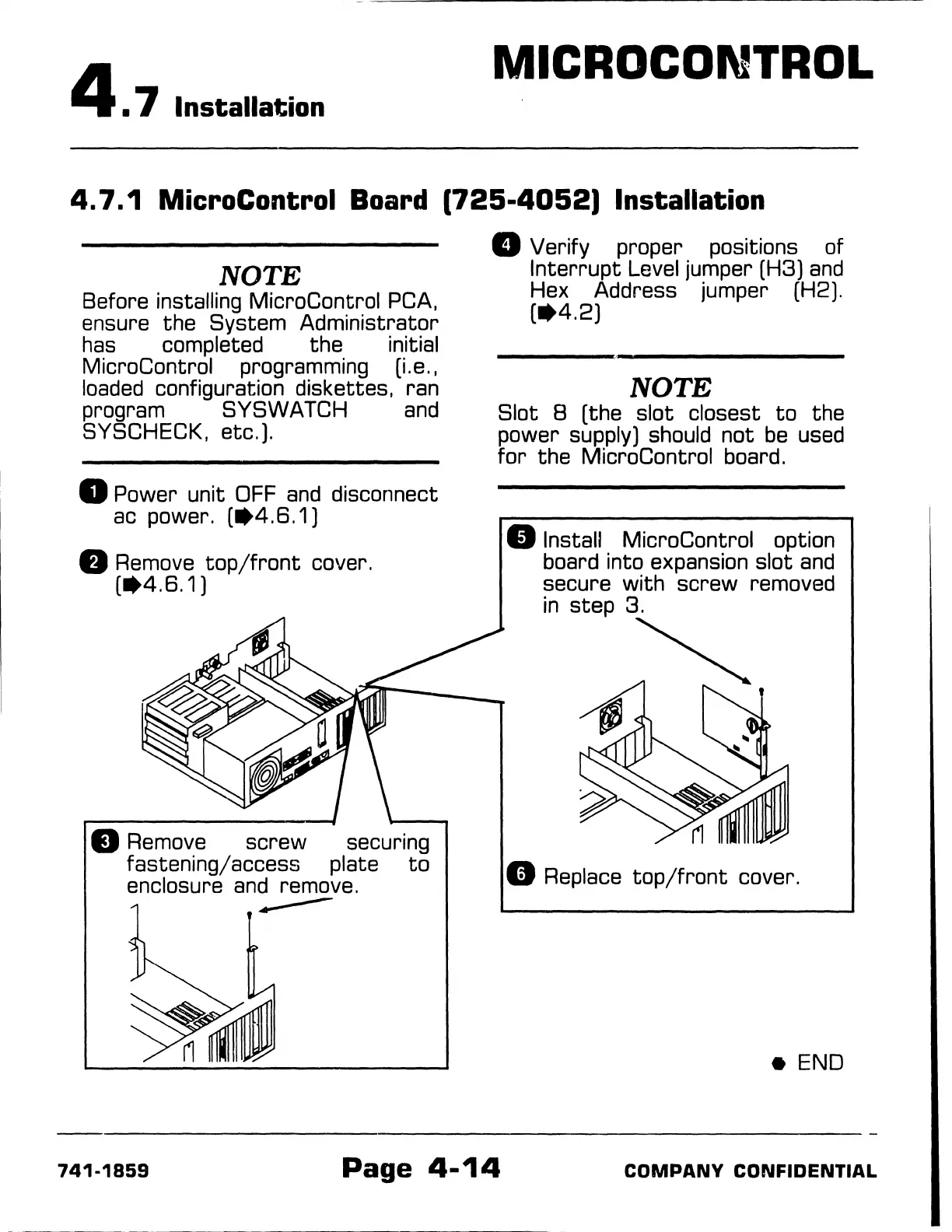

4 . 7 Installation
MICROCONTROL
4. 7 .1 MicroControl Board
(725-4052)
Installation
NOTE
Before installing MicroControl PCA,
ensure
the
System Administrator
has
completed
the
initial
MicroControl programming (i.e.,
loaded configuration diskettes, ran
program SYSWATCH
and
SYSCHECK, etc.).
D Power unit
OFF
and
disconnect
ac
power.
(•4.6.1)
8 Remove
top/front
cover.
(
..
4.6.1)
U Remove screw securing
fastening/access plate
to
enclosure
and
remove .
..-------
D Verify proper positions of
Interrupt
Level jumper (H3)
and
Hex Address jumper (H2).
(
..
4.2)
NOTE
Slot 8 (the
slot
closest
to
the
power supply) should
not
be
used
for
the MicroControl board.
8 Install MicroControl option
board into expansion slot
and
secure with screw removed
instep3~
~
Cl
Replace
top/front
cover.
•END
741-1859
Page
4-14
COMPANY
CONFIDENTIAL
