Wang 200 Series - External Cable Connections

1. 5 Installation
UPCC

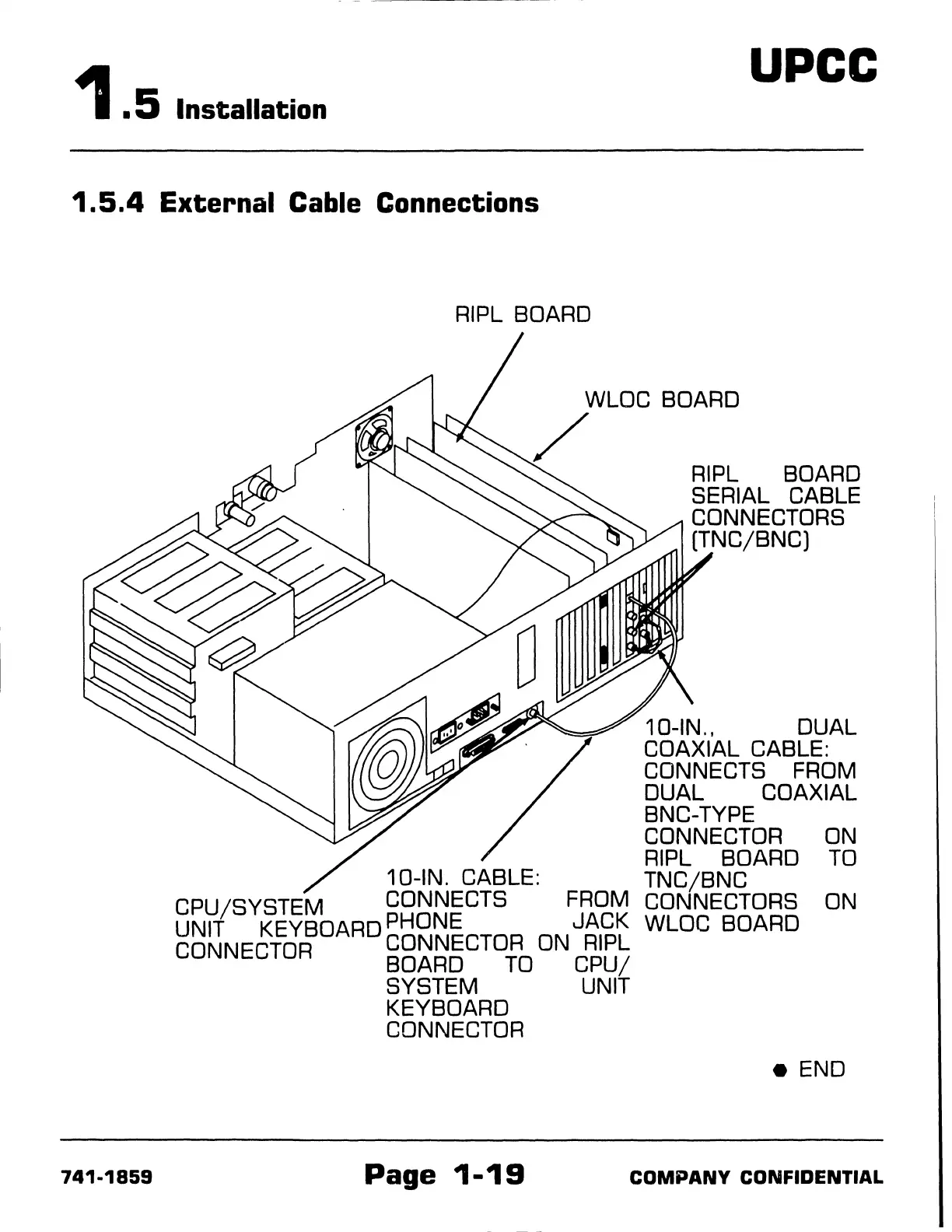

1.5.4 External Cable Connections
741-1859
RIPL BOARD
WLOC BOARD
/
RIPL BOARD
SERIAL CABLE
CONNECTORS
(TNC/BNC)
10-IN. I DUAL
COAXIAL CABLE:
CONNECTS FROM
DUAL COAXIAL
BNC-TYPE
CONNECTOR ON
RIPL BOARD TO
TNC/BNC
CPU/SYSTEM CONNECTS FROM CONNECTORS ON
UNIT KEYBOARD PHONE JACK WLOC BOARD
CONNECTOR CONNECTOR ON RIPL
BOARD TO CPU/
SYSTEM UNIT
KEYBOARD
CONNECTOR
Page 1-19
e END
