1. 5 Installation
UPCC

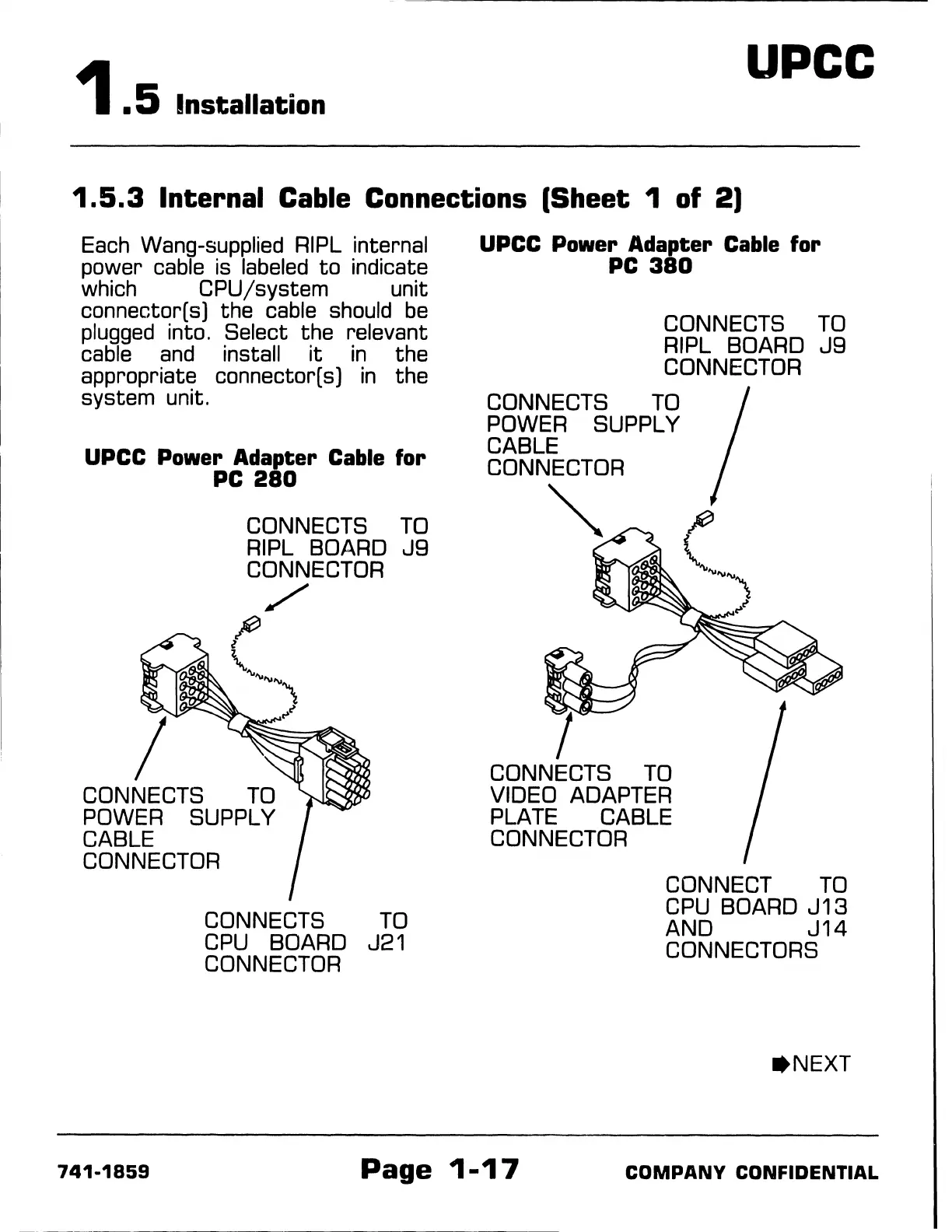

1.5.3 Internal Cable Connections (Sheet 1 of 2)
Each Wang-supplied RIPL internal
power cable is labeled to indicate
which CPU/system unit
connector( s) the cable should be
plugged into. Select the relevant
cable and install it in the
appropriate connector[ s) in the
system unit.
UPCC Power Adapter Cable for
PC 280
CONNECTS TO
RIPL BOARD JS
CONNECTOR
/
18
\
'1. .... ,,.,\1
'\
CONNECTS TO
POWER SUPPLY
CABLE
CONNECTOR
.. r!
CONNECTS TO
CPU BOARD J21
CONNECTOR
UPCC Power Adapter Cable for
PC 380
CONNECTS TO
RIPL BOARD J9
CONNECTOR
CONNECTS TO
POWER SUPPLY
CABLE
CONNECTOR
""
CONNECTS TO
VIDEO ADAPTER
PLATE CABLE
CONNECTOR
CONNECT TO
CPU BOARD J13
AND J14
CONNECTORS
741-1859 Page 1-17
