Wang 200 Series - Setting Interrupt Channel Jumpers

2 . 5 Installation
802.3 INTERFACE
2.5.5 Setting Interrupt Channel Jumpers

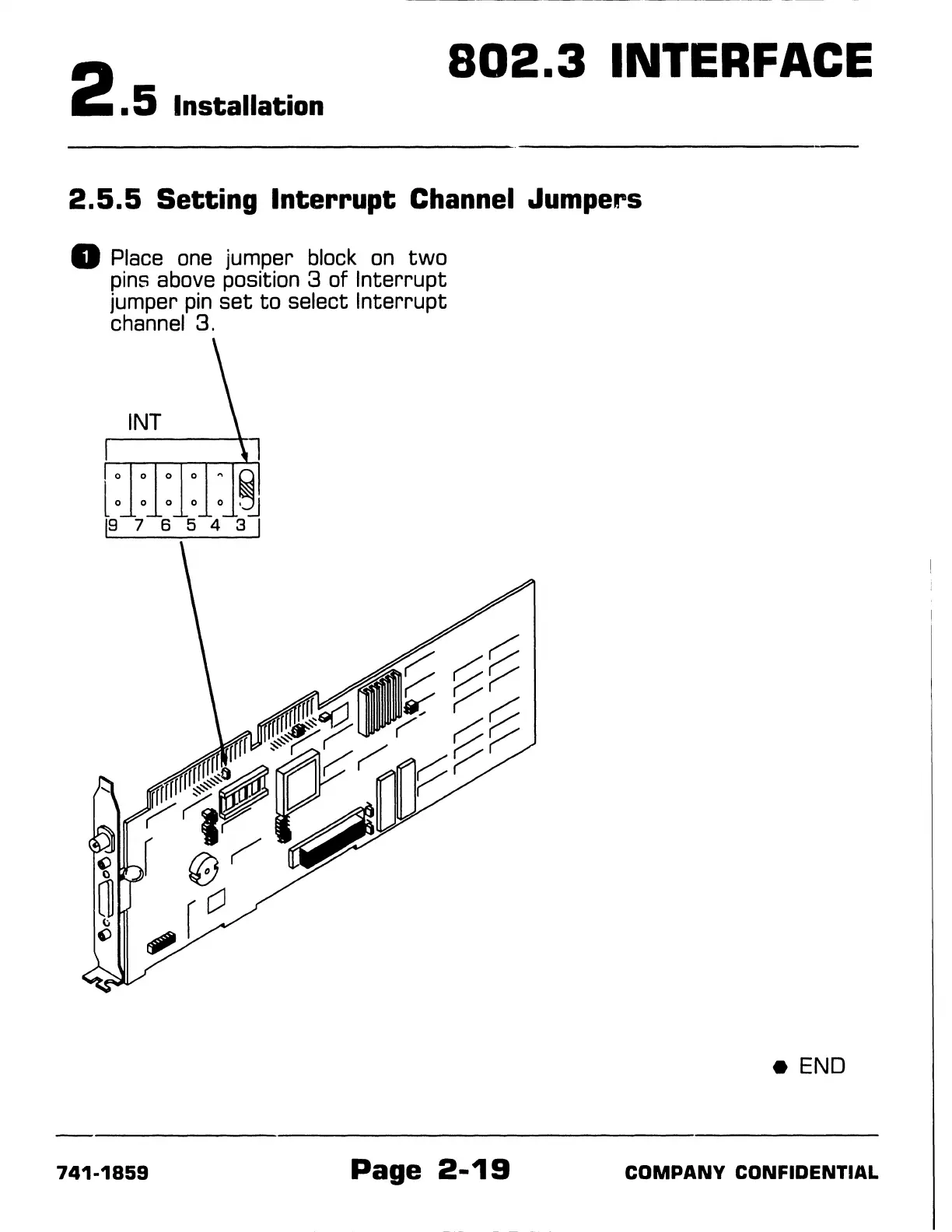

D Place one jumper block on two
pins above position 3 of Interrupt
jumper pin set to select Interrupt
channel 3.
INT
l: : : : : ~
1s 1 s 5 4 3 I
741-1859
Page 2-19
e END
