Wang 200 Series - Single Monitor Systems

3 .6 ~n~~l~io?ONTROLLER (100 DPI)

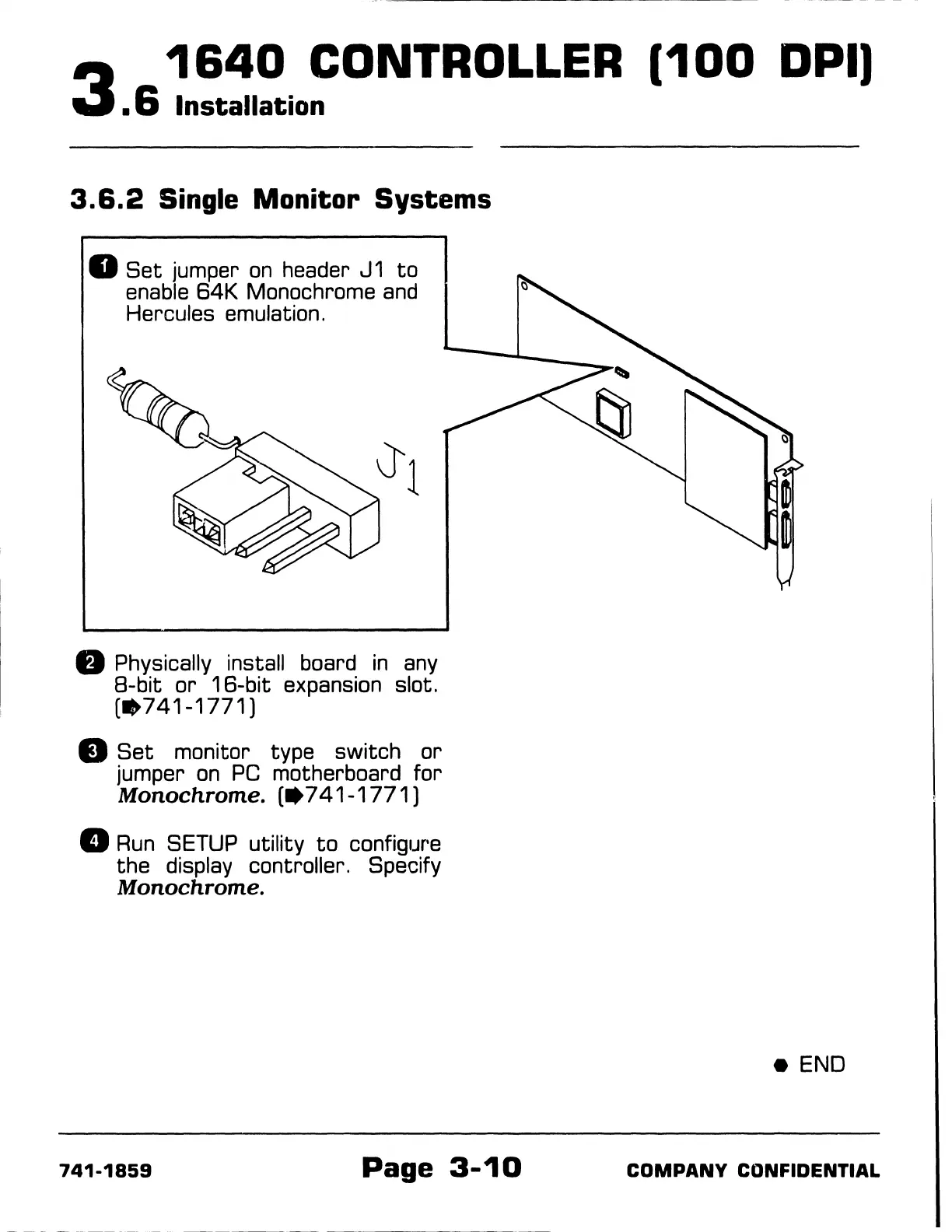

3.6.2 Single Monitor Systems
D Set jumper on header J 1 to
enable 64K Monochrome and
Hercules emulation.
fJ Physically install board in any
8-bit or 16-bit expansion slot.
(• 7 41-1771)
D Set monitor type switch or
jumper on PC motherboard for
Monochrome. (• 7 41-1771 )
D Run SETUP utility to configure
the display controller. Specify
Monochrome.
741-1859
Page 3-10
•END
