Wang 200 Series - UPCC Hardware Configuration

1.1
Introduction
UPCC

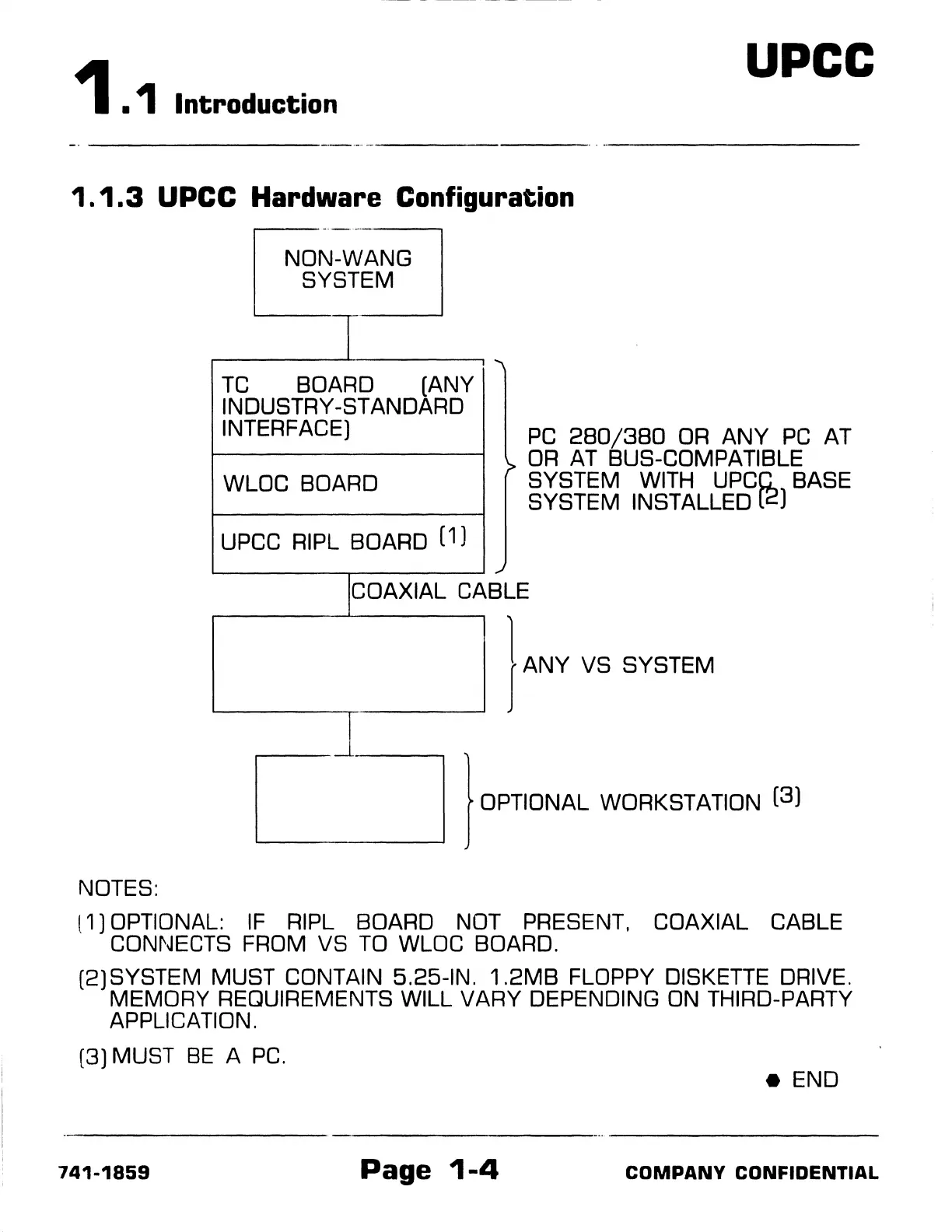

1.1.3 UPCC Hardware Configuration
NOTES:
~~-~~~
~ST~
-J
TC
BOARD (ANY
INDUSTRY-STANDARD
INTERFACE)
WLOC BOARD
UPCC RIPL BOARD ( 1)
PC 280/380 OR ANY PC AT
OR AT BUS-COMPATIBLE
SYSTEM WITH UPCC..) BASE
SYSTEM INSTALLED l~
JcoAXIAL CA
BLE
) ANY VS SYSTEM
I
I
I ,
OPTIONAL WORKSTATION (3)
l 1) OPTIONAL: IF RIPL BOARD NOT PRESENT, COAXIAL CABLE
CON~JECTS FROM VS TO WLOC BOARD.
(2)SYSTEM MUST CONTAIN 5.25-IN. 1.2MB FLOPPY DISKETTE DRIVE.
MEMORY REQUIREMENTS WILL VARY DEPENDING ON THIRD-PARTY
APPLICATION.
(3) MUST BE A PC.
e END
741-1859 Page 1-4
