Installation
802.3
INTERFACE
2.5.6
Setting
1/0
Base Address Jumpers
NOTE
The
1/0 base address jumper
set
has three columns of
pins.
An
address code logic
''
1 '' is
set
by
placing a jumper block
so
that
it
covers a center
and
right column
pin.
A logic
''
0'
'
is
set
by
placing a
jumper
block
so
that
it
covers a
center
and
left column
pin.
Row 9
sets
the
high
order bit
in
the HEX
address code.

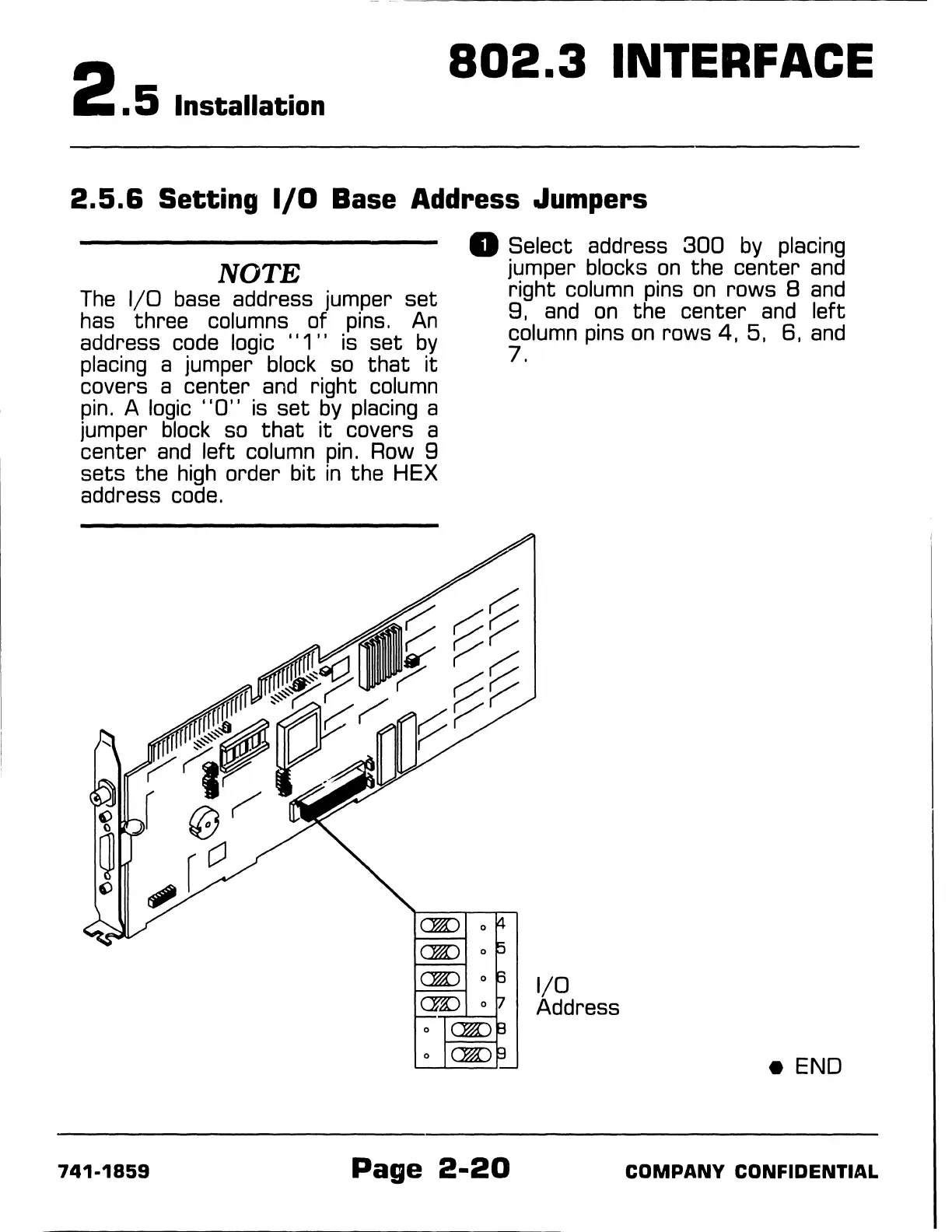

D Select address
300
by
placing
jumper blocks
on
the center
and
right column pins
on
rows 8
and
8,
and
on
the center
and
left
column pins
on
rows 4, 5, 6,
and
7.
741-1859
~
0
~
0
~
0
C%fD 0
0 CJl{()
0 CJl{()
