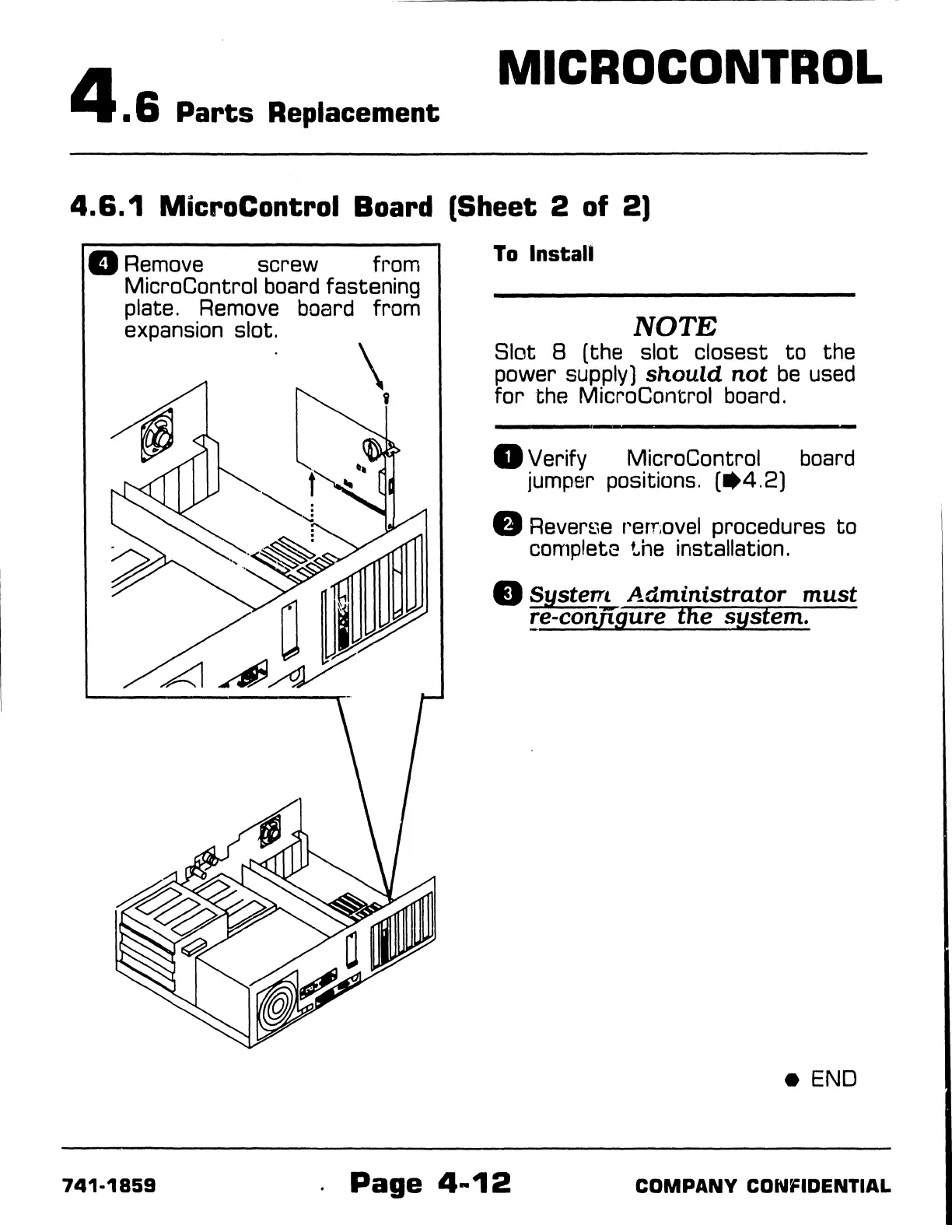

Wang 200 Series - Microcontrol Board

4 . 6 Parts Replacement
MICROCONTROL
4.6.1 MicroControl Board (Sheet 2 of 2)
D Remove screw from
MicroControl board fastening
plate. Remove board from
expansion slot.
\
'
To Install
NOTE
Slot 8 (the slot closest to the
power supply) should not be used
for the MicroControl board.
D Verify MicroControl board
jumper positions. (•4.2)
fl Rever~1e rerr;ovel procedures to
complete the installation.
IJ Syste"t Administrator must
re-corif[gure the system.
e END
