Wang 200 Series - Installing Adapter Plate

2 . 5 Installation
802.3 INTERFACE

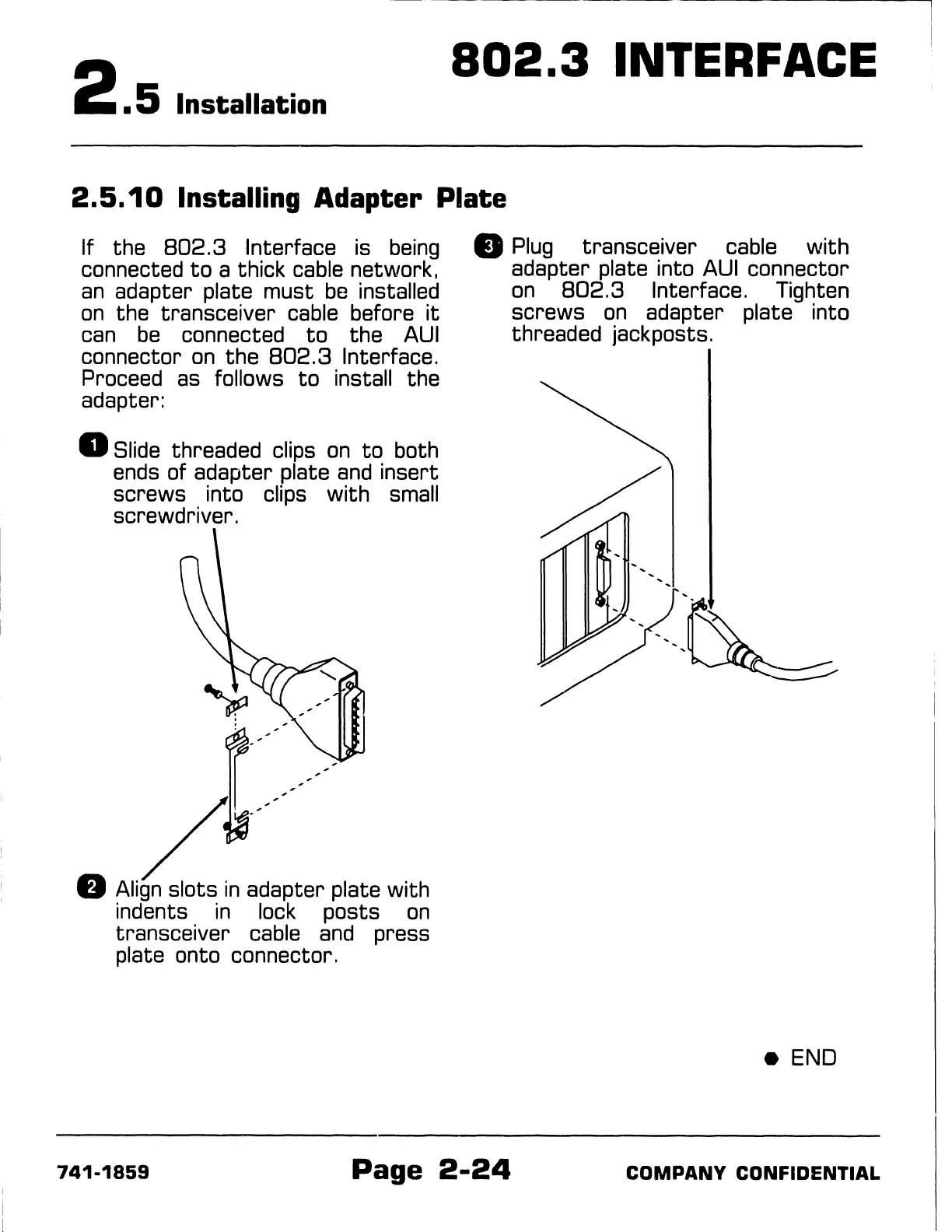

2.5.10 Installing Adapter Plate
If the 802. 3 Interface is being
connected to a thick cable network,
an adapter plate must be installed
on the transceiver cable before it
can be connected to the AUi
connector on the 802.3 Interface.
Proceed as follows to install the
adapter:
D Slide threaded clips on to both
ends of adapter plate and insert
screws into clips with small
screwdriver.
~---
a Align slots in adapter plate with
indents in lock posts on
transceiver cable and press
plate onto connector.
IJ Plug transceiver cable with
adapter plate into AUi connector
on 802.3 Interface. Tighten
screws on adapter plate into
threaded jackposts.
•END
741-1859 Page 2-24
